PXI Express Embedded Controller with Intel Core i Processor and Graphics Interface

3U embedded controller for PXI Express and CPCIexp platforms. The controller have a 4-core 1.5GHz 11th generation Intel® Core i5-1145G7E processor or a 2-core 2.2GHz 11th generation Intel® Core i3-1115G4E processor and up to 32GB DDR4 SDRAM. The PXIe controller from nVent SCHROFF offer two 2.5GBASE-T front panel ports, an Intel® Xe graphics engine with a DisplayPort on the front panel, up to 2TB of M.2 Type M NVMe storage and 3 USB 3.1 front panel ports.

The controller are available in standard 0°C .. +45°C and -40°C .. +70°C extended operating temperature range version.

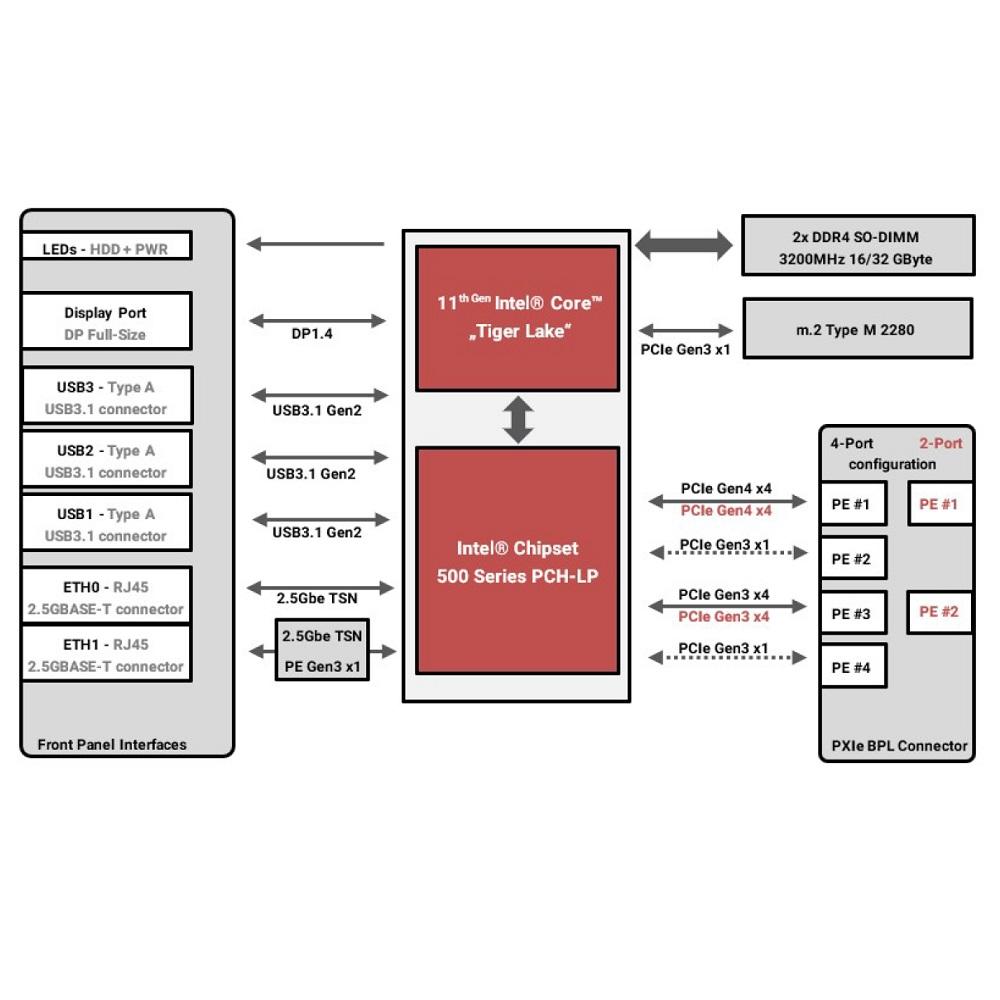

Technical Description

  • 3U/4HP PXI-5 PXI Express controller, Rev. 2.0
  • 2-core 2.2 GHz Intel Core i3-1115G4E, 6MB cache or
    4-core 1.5 GHz Intel Core i5-1145G7E, 12MB cache processor
  • Up to 32 GB DDR4-3200 SDRAM
  • RM590E/QM580E/HM570E chipset
  • Intel® Xe graphics engine with a DisplayPort 1.4 on the front panel
  • 3 USB 3.1  front panel ports
  • Two 2.5GBASE-T front panel ports
  • M.2 Typ M 2280 NVME Samsung EVO980Plus with up to 2TB storage
  • 20W power consumption TDP, max. 45W power consumption
  • AMI Aptio® Embedded BIOS
  • 0°C … +45°C operating temperature range, optional -40°C .. +70°C operating temperature range
  • 2 years warranty

Order Information


PXI Express Controller with Core i3, 16GB RAM, 512GB SSD


PXI Express Controller with Core i5, 32GB RAM, 1TB SSD

Technical Documentation

21265-12x Data Sheet
