PXI Express Embedded Controller with Intel Xeon Processor and Graphics Interface

3U embedded controller for PXI Express and CPCIexp platforms. The controller has a 6-core 1.9GHz 11th generation Intel® Xeon W-11555MLE processor and up to 32GB DDR4 SDRAM. The PXIe controller from nVent SCHROFF offers two 10GBASE-T front panel ports, an Intel® Xe graphics engine with a DisplayPort on the front panel, up to 4TB of M.2 Type M SSD storage and 2 USB 3.1 front panel ports.

The controller is available in standard 0°C .. +45°C and -40°C .. +70°C extended operating temperature range version.

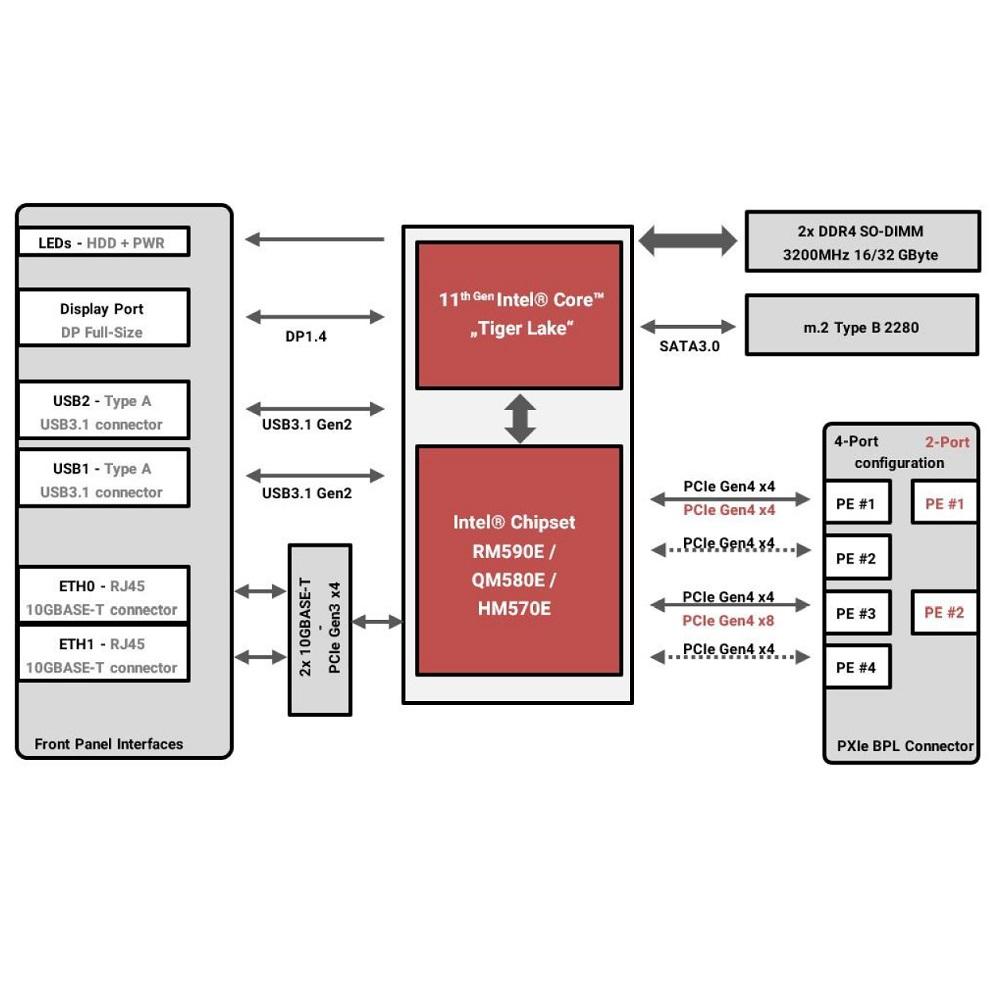

Technical Description

  • 3U/4HP PXI-5 PXI Express controller, Rev. 2.0
  • 6-core 1.9 GHz (4.4 GHz Turbo Boost) Intel Xeon W-11555MLE processor
  • Up to 32 GB DDR4-3200 SDRAM
  • RM590E/QM580E/HM570E chipset
  • Intel® Xe graphics engine with a DisplayPort 1.4 on the front panel
  • 2 USB 3.1  front panel ports
  • Two 10GBASE-T front panel ports
  • M.2 Typ B 2280 SSD WD Red with up to 4TB storage
  • 30W power consumption TDP, max. 120W power consumption
  • AMI Aptio® Embedded BIOS
  • 0°C … +45°C operating temperature range, optional -40°C .. +70°C operating temperature range
  • 2 years warranty

Order Information


PXI Express Controller with Xeon, 32GB RAM, 1TB SSD

Technical Documentation

21265-170 Data Sheet
