AD CR3/PMC 6U VMEbus Carrier Board for two PMC Modules

6U VMEbus carrier that provides front I/O and rear I/O for two PMC modules. This PMC to 6U VMEbus adapter is used to build modular, flexible and cost effective I/O solutions with PMC devices in VMEbus systems.

The CONCURRENT Technologies AD CR3/PMC is 32/64bit 33/66 MHz 6U PMC carrier for the VMEbus bus with front I/O, P2 rear I/O and opt. P0 rear I/O. The P2 connector provides 64 I/O signals and the opt. P0 connector has also 64 I/O signals. The I/O pins mapping is compliant with VITA 35-2000 P4V0-64 + P4V2-64ac PMC I/O wiring standards. There is also an adapter interface for connecting to a compatible VME PMC host processor card.

The AD CR3/PMC series comes in three different environment classes from standard (0°C to 55°C) to extended temperature (-25°C to +70°C), and (-40°C to +85°C).

ORDER NOW

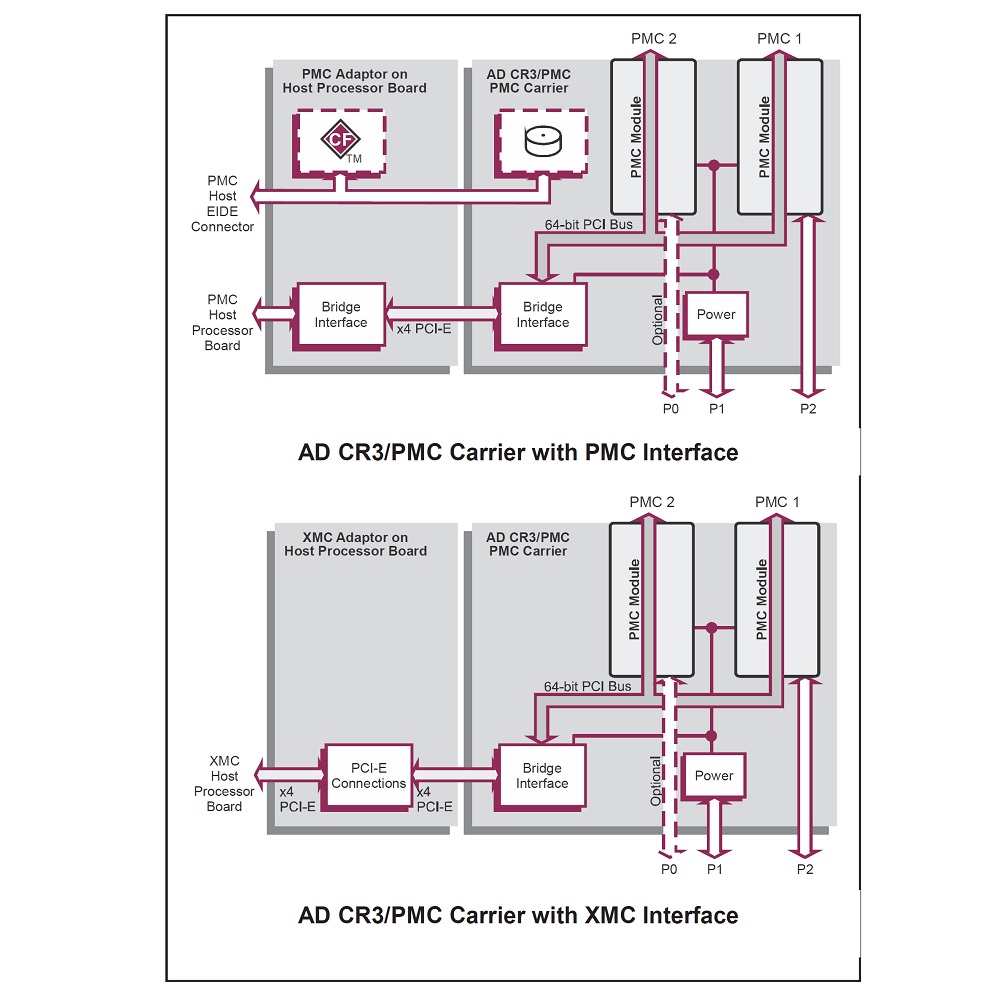

Technical Description

proimg1
  • 6U/4HP VMEbus board, PCI 3.0, VITA 35 conform
  • Two PMC slots, Front-I/O, Rear-I/O via P2 and opt. P0
  • PMC interface with 32/64bit 33/66MHz, 3.3V
  • 64 I/O signals via P2 connector
  • 64 I/O signals via opt. P0 connector
  • I/O pin mapping compliant with VITA 35-2000 P4V0-64 + P4V2-64ac PMC I/O wiring standards
  • Adapter Interface to connect to a compatible VME PMC/XMC host processor card, XMC PCIe x4 interface
  • Adapter interface features a standard PCI to PCI bridge software architecture
  • Carrier uses flexible PCIe x4 cable connection with either PMC or XMC adaptor
  • Operating system support dependent on the host processor used
  • HDD/SSD site and CompactFlash site through extending host boards EIDE interface
  • In 3 environmental classes available: standard (0°C .. 55°C), extended grade (-25°C .. +70°C), and (-40°C .. +85°C)
  • 2 years warranty

Order Information

AD_CR3/PMC-19

6U/4HP VMEbus PMC carrier board with P0, VME64x handles, uses one VP 91x/x1x PMC site

AD_CR3/PMC-29

6U/4HP VMEbus PMC carrier board without P0, VME64x handles, uses one VP 91x/x1x PMC site

AD_CR3/PMC-39

6U/4HP VMEbus PMC carrier board without P0, VME handles, uses one VP 91x/x1x PMC site

AD_CR3/PMC-49

6U/4HP VMEbus PMC carrier board with P0, VME64x handles, uses one VP 91x/x1x XMC site

AD_CR3/PMC-59

6U/4HP VMEbus PMC carrier board without P0, VME handles, uses one VP 91x/x1x XMC site

AD_CR3/PMC-69

6U/4HP VMEbus PMC carrier board without P0, VME64x handles, uses one VP 91x/x1x XMC site

Extension E

-25°C .. +70°C

Extension K

-40°C .. +85°C

AD_VP2/004-10

P2 I/O breakout module

AD_VP2/005-00

AD_VP2/005-00

Technical Documentation

AD CR3/PMC-DS

AD CR3/PMC Data Sheet
