AM 600/10x and AM 600/30x

AM 600/10x and AM 600/30x SATA-150 Hard Disk Controller

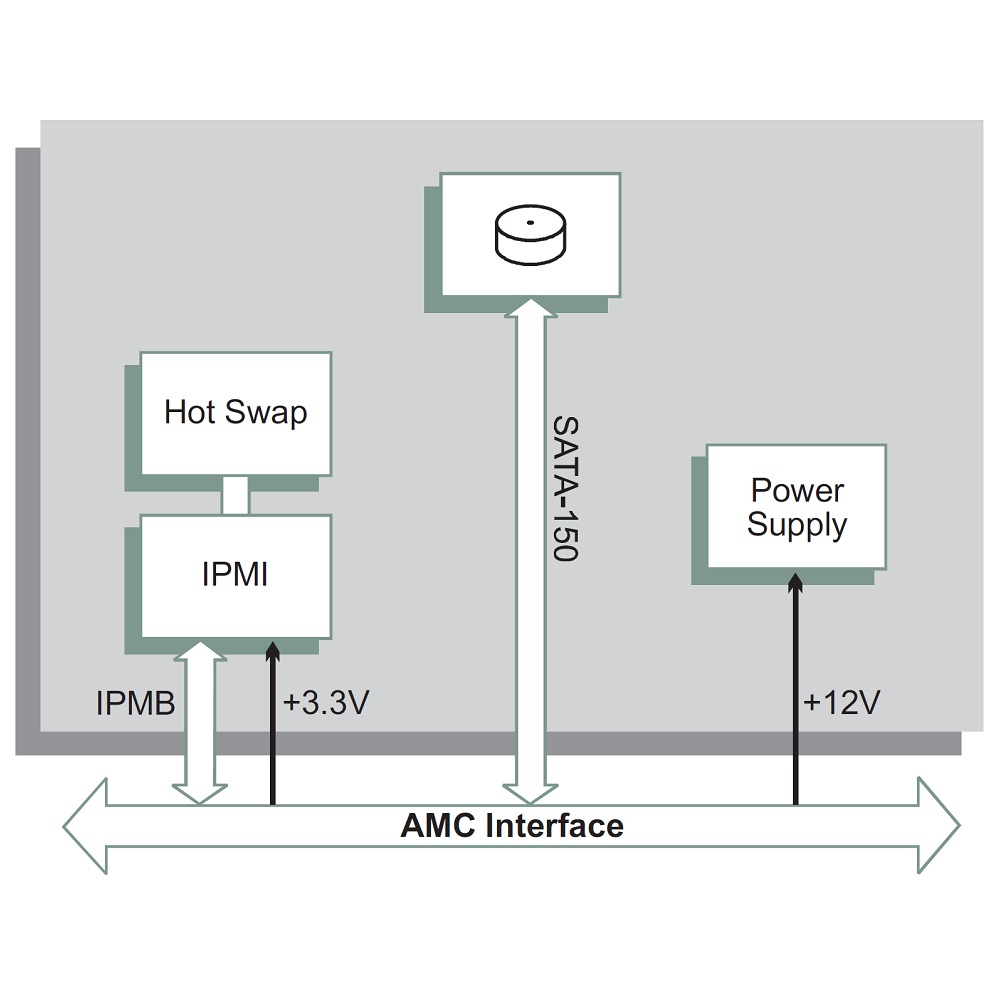

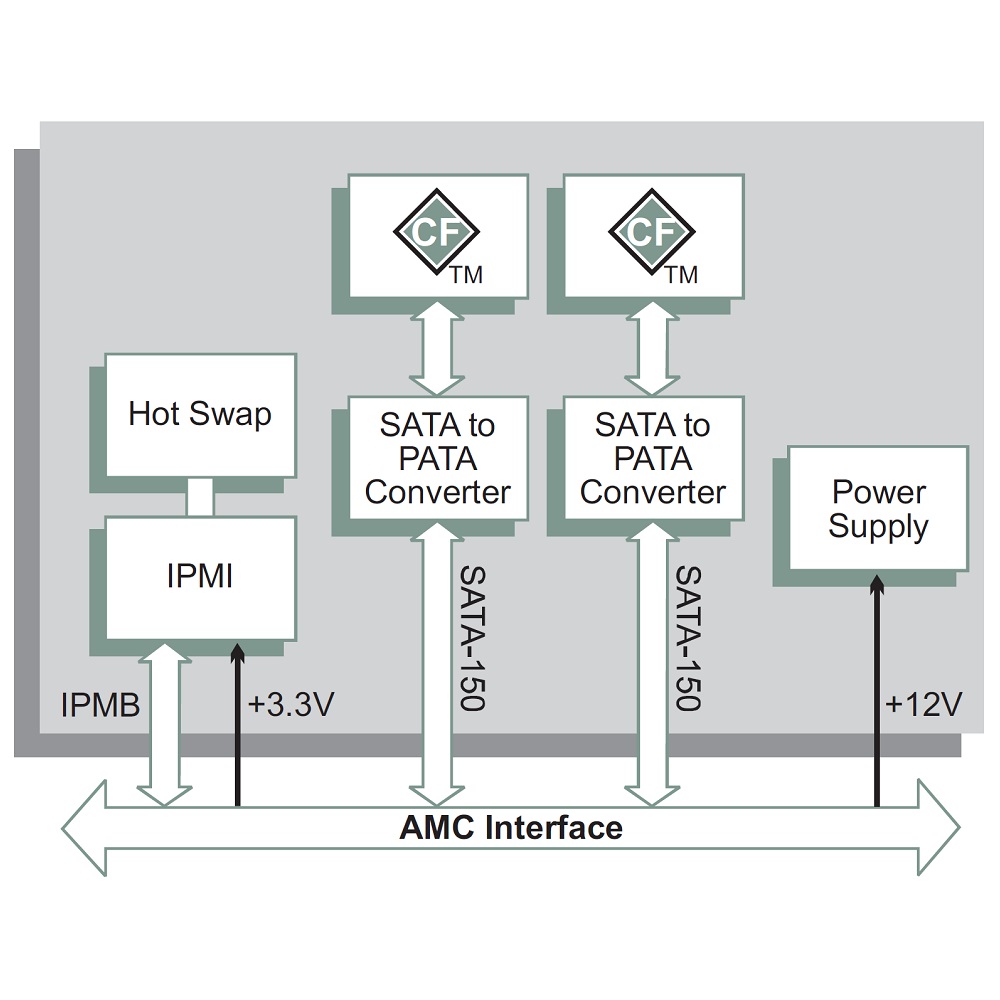

The Concurrent Technologies AM 600/10x and AM 600/30x series consists of SATA AMC modules. They are available in mid size and full size form factor. One SATA SSD/HDD version or version with two CompactFlash slot are available.

The modules support RAID 0 and 1. RAID 1 systems offer additional security through mirroring on a second hard disk.

ORDER NOW

TECHNISCHE BESCHREIBUNG

proimg1
  • SATA-150 controller
  • AMC module with AMC.3 type S2 interface, mid size or full size form factor
  • RAID 0 or 1
  • In 3 environmental classes available: standard (0°C .. 55°C), extended grade (-25°C .. +70°C), and (-40°C .. +85°C)
  • 2 years warranty

Bestellbezeichnungen

AM600/101-1y

AMC module with SATA HDD, full size

AM600/102-49

AMC module with 2 Compact Flash slots, full size

AM600/302-1y

AMC module with SATA HDD, mid size

AM600/302-49

AMC module with 2 Compact Flash slots, mid size

TECHNISCHE DOKUMENTATION

AM 600/x0x Data Sheet
