AM F5x/msd Processor AMC with Intel Xeon E3-1500 v5 CPU with DisplayPort and 10Gigabit Ethernet Front Panel Ports

The processor AMC module is powered by an Intel Xeon E3-1500 v5 CPU with up to 2.8 GHz clock rate. The processor manages 16 GB ECC DDR4 SDRAM. The front panel has two 10Gigabit Ethernet, one DisplayPort, one USB 3.0/2.0 and one RS-232 port.

CONCURRENT Technologies' AM F5x/msd series are high performance processor sub systems with AMC full size and mid size form factor. AMC.1 type 4 or type 8 AMC.2 type E2 and AMC.3 type S2 (SATA) are supported. The processor AMC is designed for high performance solutions. The long lifetime AdvancedMC technology allows the reuse of system components from small to high-end configurations: This secures your investments.

By adhering to industry standards like AMC and MicroTCA, the AM F5x/msd modules offer the advantage of solutions with high performance and longevity.

The board supports Linux, Windows and VxWorks.

ORDER NOW

Technical Description

proimg1

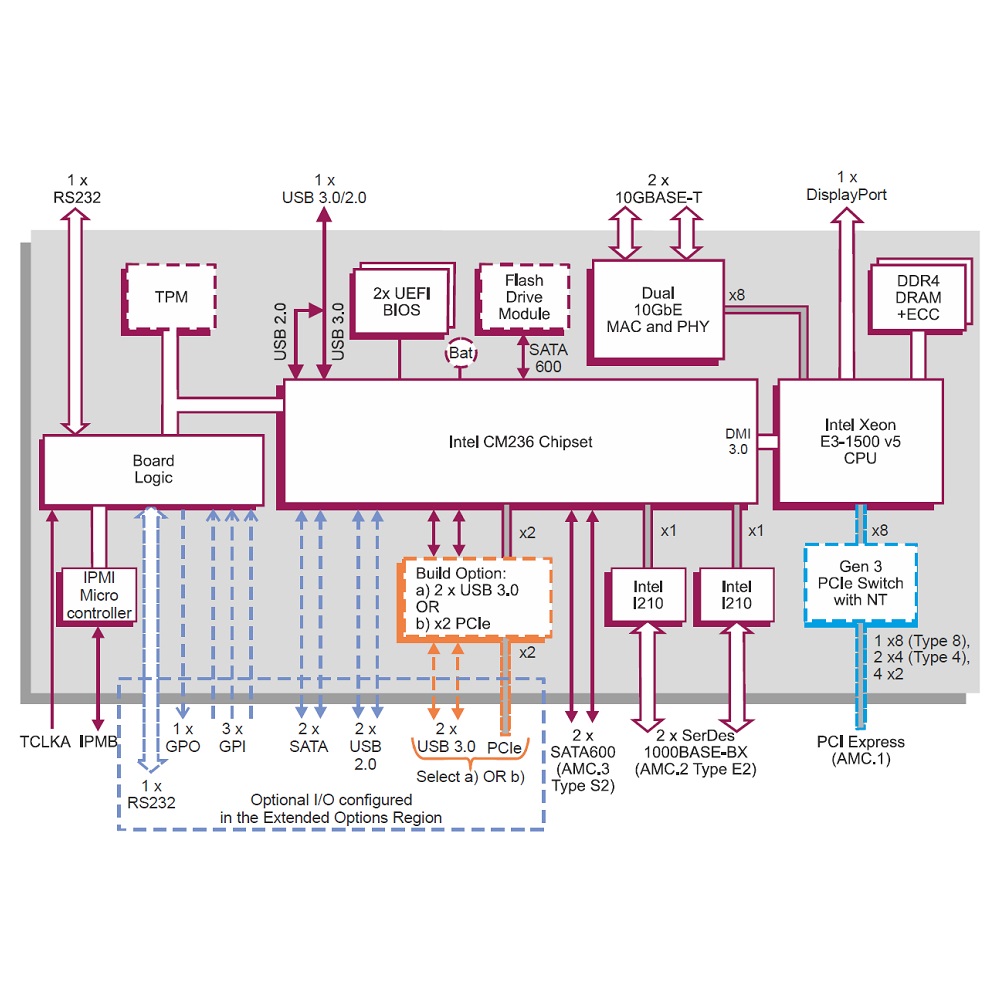

  • Processor AMC module
  • AMC module with AMC.1 type 4 or type 8, AMC.2 type E2, AMC.3 type S2 (SATA) interface, full size form factor, opt. mid size form factor
  • 4 Core 2.8 GHz Intel Xeon E3-1515M v5, 8 MB cache, Intel Iris Pro Graphics P580,
    4 Core
    2.8 GHz Intel Xeon E3-1505M v5, 8 MB cache, Intel HD Graphics P530,
    4 Core 2.0 GHz Intel Xeon E3-1505L v5, 8 MB cache, Intel HD Graphics P530
  • 16 GB ECC DDR4 SDRAM, soldered
  • Intel CM236 controller
  • DisplayPort on the front panel, DirectX 11 and 12, OpenGL 4.x and 5.x, OpenCL 2.1
  • Dual redundant 16 MB BIOS flash
  • Two 10GbE front panel ports, 10GBase-T, 1000Base-T, 100 Base-TX, Intel X540AT2
  • Two SerDes GbE ports, 1000Base-BX
  • Up to 5 SATA 6Gbit/s ports, 2 AMC.3 type S2 ports on the backplane, 1 port for a flash module and opt. 2 ports in the ext. option
  • Up to two RS-232 ports, 1 front panel Micro USB port (TxD and RxD) and opt. 1 port in the ext. option, TxD, RxD, CTS, RTS signals
  • Up to 5 USB ports, 1 USB 2.0/3.0 front panel port, opt. 2 USB 2.0 ports in the ext. option, opt. 2 USB 3.0 ports in the ext. option (replaces PCIe x2 port)
  • Two 10Gigabit Ethernet, one DisplayPort, one USB 2.0, and one RS-232 port with TxD, RxD in the front panel
  • PCIe fabric: one PCIe x8 Gen3 port or two PCIe x4 Gen3 ports or 4 PCIe x2 Gen3 ports
  • Opt. SATA flash module
  • Opt. one PCIe Gen 2 x2 or two x1 ports in the ext. option (replaces two USB 3.0 ports)
  • UEFI BIOS, LAN Boot Firmware
  • TCLKA telecom clock
  • Watchdog, real time clock, and 32bit timer
  • IPMI 1.5 management with 8 KB NVRAM support
  • Opt. Trusted Platform module (TPM)
  • Onboard Management Controller (BMC)
  • Fabric Interconnect Networking Software (FIN-S) support
  • 0°C .. 55°C operating temperature range
  • 2 years warranty
