3U VPX 22 Port 1/10/40GbE Layer 2+/3 Switch

3U VPX 1/10/40GbE Layer 2+/3 switch with up to 22 ports. Powered by the latest highly integrated Marvell System Chip (SoC) with programmable packet processors and controlled by Switchware, Interface Concept's field-proven network management application, the ComEth4080e series provides a high number of 1/10/40GbE ports. Two 40GbE, six 10GbE and eight GbE ports or 14 10GbE and eight GbE ports are available. Switchware supports a wide range of Layer 2/3 features controlled through an easy-to-use graphical user interface (GUI), command line interface (CLI) or SNMP (v2c or v3).

The ComEth4080e also supports VPX System Management in compliance with VITA 46.11 and based on the Intelligent Platform Management Interface (IPMI v1.5) for sensor management (temperature, voltage, current), inventory management, system configuration, recovery and diagnostic management.

The ComEth4080e series is available for five different environmental specifications: Standard operating temperature range (0°C .. 55°C), extended operating temperature range (-20°C .. +65°C), rugged operating temperature range (-40°C .. +75/85°C), conduction-cooled (-40°C .. +71°C) and conduction-cooled (-40°C .. +85°C).


Technical Description

  • 3U VPX Switch, VITA 46.11 compliant
  • 40GbE, 10GbE and GbE Layer 2+/3 Switch

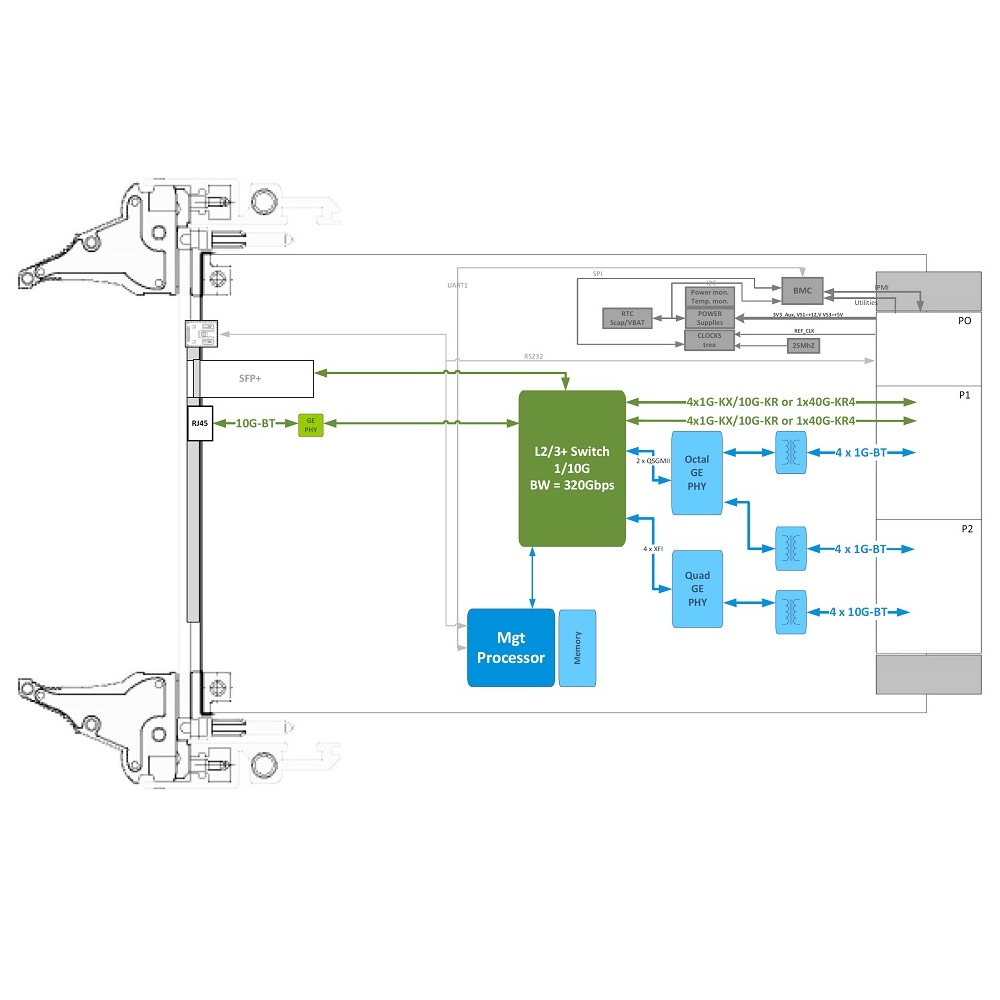

  • Up to 22 ports:
    8x 10GBASE-KR/1GBASE-KX via P1 or 2x 40GBASE-KR4 via P1
    8x 1G/100M/10M BASE-T via P1 and P2
    4x 10G/5G/2.5G/1G/100M/10M BASE-T via P2
    1x 10G/1G SFP+ front panel port
    1x 10G/5G/2.5G/1G/100M/10M BASE-T front panel port
  • Speed, duplex, auto-negotiation, flow control and power management on all ports
  • QoS on all ports
  • VLAN support / 802.1Q tagging
  • Port mirroring and port rights management
  • Static MAC address list and static IPM address list
  • Port static authentication
  • IEEE 802.1X port-based authentication
  • Ingress filtering
  • Storm prevention
  • Ingress / egress access lists
  • Static trunking / LACP
  • STP / RSTP
  • Secure switch management by HTTPS, SSH or SNMPv3
  • Login/password, key or certificate authentication
  • IGMP snooping (v1, v2, v3) and MLD snooping (v1, v2)
  • Layer3: ICMP, Proxy-ARP, DHCP-Relay, NAT, IPv4 routing (unicast/multicast), static IP routing (unicast and multicast), RIPv1, RIPv2 (IPv4), RIPng(IPv6), OSPFv2 (IPv4) / OSPFv3(IPv6)
  • PBIT results
  • Five different environment classes: standard (0°C to 55°C), extended temperature (-20°C to +65°C), rugged (-40°C to +75/85°C) and conduction-cooled (-40°C to +71/85°C)
  • 2 years warranty

Order Information


3U VPX 1/10/40 GbE Switch, 0°C .. +55°C


3U VPX 1/10/40 GbE Switch, -20°C .. +65°C


3U VPX 1/10/40 GbE Switch, -40°C .. +75/85°C


3U VPX 1/10/40 GbE Switch, conduction-cooled -40°C .. +71°C


3U VPX 1/10/40 GbE Switch, conduction-cooled -40°C .. +85°C
