ComEth4412a

3U VPX 12 Port 1/10/40GbE and 6 Port PCIe Layer 2+/3 Switch

3U VPX 1/10/40GbE Layer 2+/3 hybrid managed switch with up to 12 ports and 6 PCIe Gen3 ports. Powered by the latest highly integrated Marvell System Chip (SoC) with programmable packet processors and controlled by Switchware, Interface Concept's field-proven network management application, the ComEth4412a series offers a high number of 1/10/40GbE ports. One 40GbE, seven 10GbE, one GbE ports and 6 PCIe ports or 11 10GbE, one GbE ports and 6 PCIe ports are available. Switchware supports a wide range of Layer 2/3 functions that can be managed via an easy-to-use graphical user interface (GUI), command line interface (CLI) or SNMP (v2c or v3). The switch supports partitioning, upstream, downstream and non-transparent port modes (one NTB per partition).

The ComEth4412a was developed in alignment with the SOSA (Sensor Open Systems Architecture) technical standard. The SOSA (Sensor Open Systems Architecture) consortium is a voluntary, consensus-based member consortium of the Open Group, a vendor-neutral technology standards organization that develops an open technical standard for sensors. The switch also supports VPX System Management as defined by VITA 46.11 and based on the Intelligent Platform Management Interface (IPMI v1.5) for sensor management (temperature, voltage, current), inventory management, system configuration, recovery and diagnostic management. It supports IEEE 1588 PTP (Precision Time Protocol) for precise network timing and provides non-volatile memory protection (NVMRO).

The ComEth4412a series is for five different environmental specifications: standard operating temperature range (0°C .. 55°C), extended operating temperature range (-20°C .. +65°C), rugged operating temperature range (-40°C .. +75/85°C), conduction cooled (-40°C .. +71°C) and conduction cooled (-40°C .. +85°C).

ORDER NOW

Technical Description

proimg1
  • 3U VPX Switch, VITA 46.11, VITA 65.0 OpenVPX and SOSA compliant

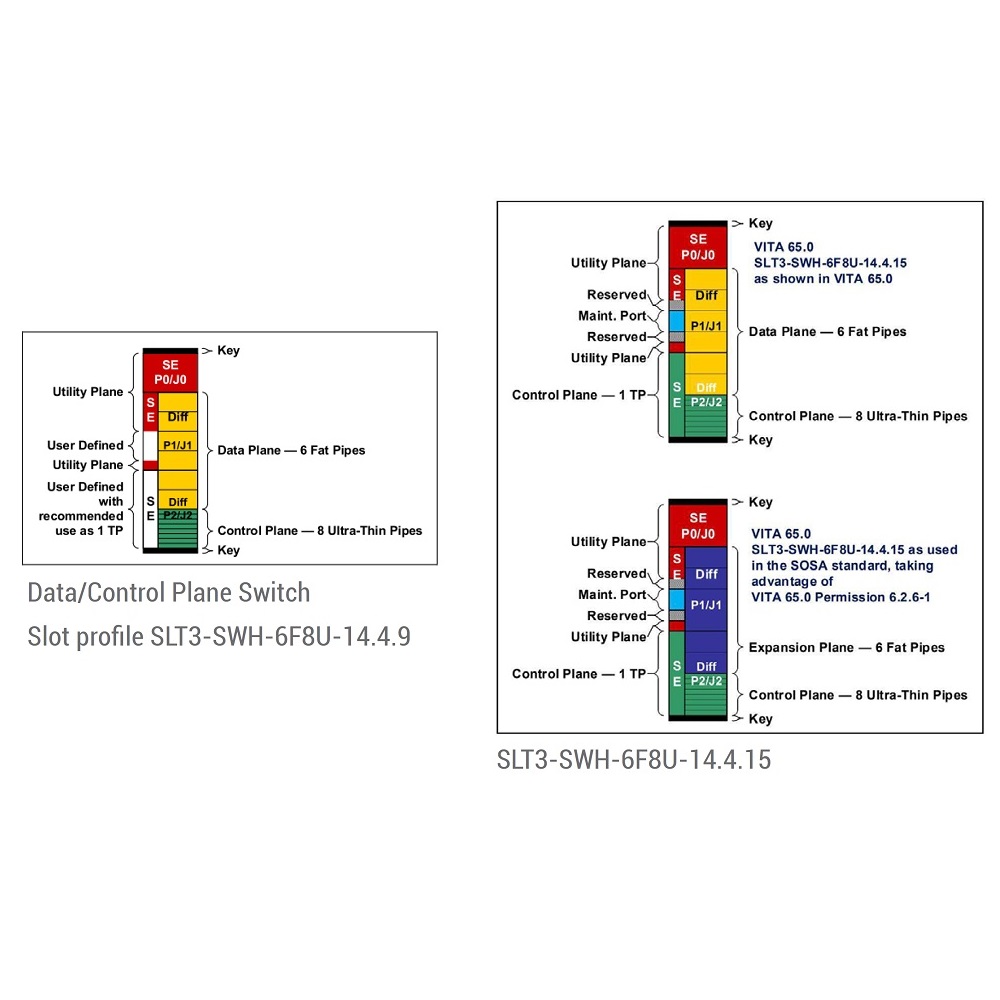

  • OpenVPX VITA 65.0 slot profiles:
    SLT3-SWH-6F8U-14.4.9
    SLT3-SWH-6F8U-14.4.15
  • 40GbE, 10GbE and GbE Layer 2+/3 switch

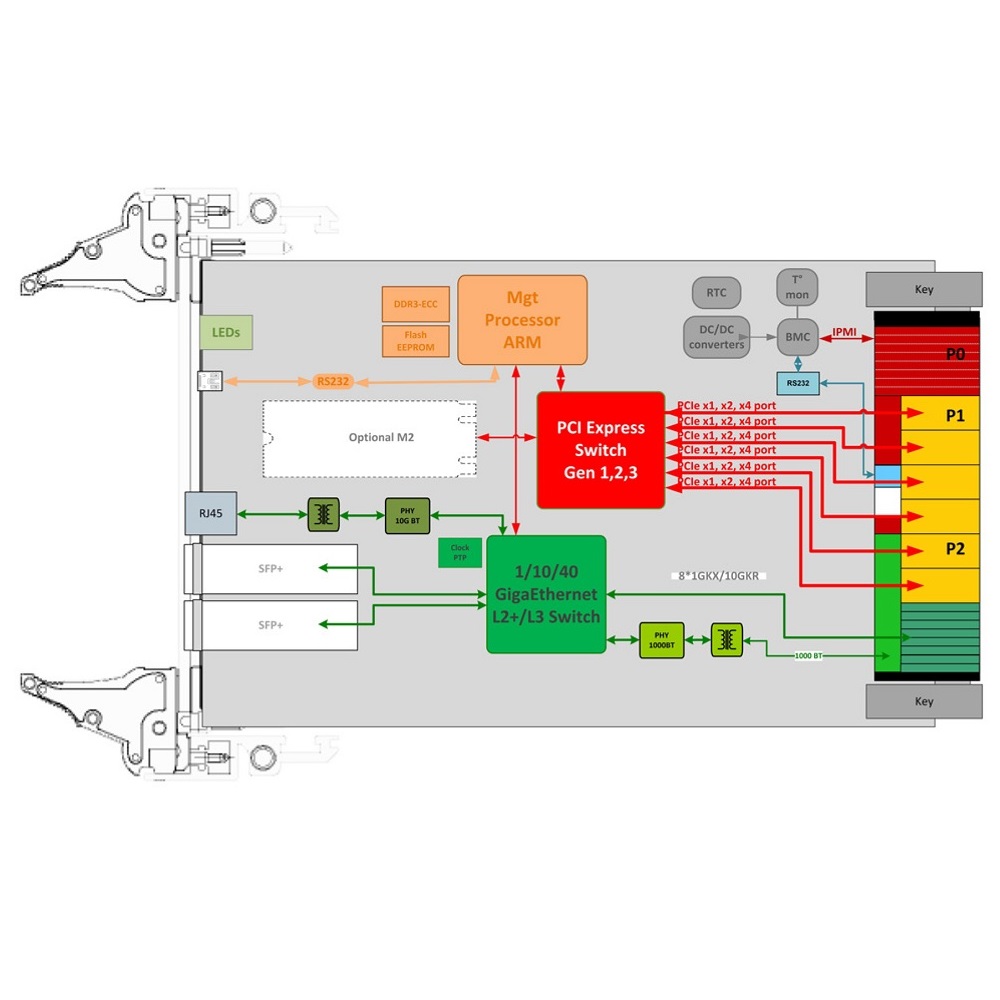

  • Up to 12 Ethernet and 6 PCIe ports:
    8x 10GBASE-KR/1000BASE-KX ports on P2 or 1x 40GBASE-KR4 and 4x 10GBASE-KR/1000BASE-KX ports on P2
    1x 1000BASE-T port on P2
    2x SFP+ (10G/1G) front panel ports
    1x 10G/5G/2.5G/1G/100M/10M BASE-T (RJ45) front panel ports
    6x PCIe ports Gen1/2/3 (x1, x2 or x4) on P1 and P2
  • Speed, duplex, auto-negotiation, flow control and power management on all ports
  • QoS on all ports
  • VLAN support / 802.1Q tagging
  • Port mirroring and port rights management
  • Static MAC address list and static IPM address list
  • Port static authentication
  • IEEE 802.1X port-based authentication
  • Ingress filtering
  • Storm prevention
  • Ingress / egress access lists
  • Static trunking / LACP
  • STP / RSTP
  • Secure switch management by HTTPS, SSH or SNMPv3
  • Login/password, key or certificate authentication
  • IGMP snooping (v1, v2, v3) and MLD snooping (v1, v2)
  • Layer3: ICMP, Proxy-ARP, DHCP-Relay, NAT, IPv4 routing (unicast/multicast), static IP routing (unicast and multicast), RIPv1, RIPv2 (IPv4), RIPng(IPv6), OSPFv2 (IPv4) / OSPFv3(IPv6)
  • PBIT results
  • Available for five different environment classes: Standard operating temperature range (0°C .. 55°C), extended operating temperature range (-20°C .. +65°C), rugged operating temperature range (-40°C .. +75/85°C), conduction-cooled (-40°C .. +71°C) and conduction-cooled (-40°C .. +85°C)
  • 2 years warranty

Order Information

ComEth4412a-100

3U VPX 1/10/40 GbE and PCIe Switch, 0°C .. +55°C

ComEth4412a-100e

3U VPX 1/10/40 GbE and PCIe Switch, -20°C .. +65°C

ComEth4412a-100r

3U VPX 1/10/40 GbE and PCIe Switch, -40°C .. +75/85°C

ComEth4412a-100c1

3U VPX 1/10/40 GbE and PCIe Switch, conduction-cooled -40°C .. +71°C

ComEth4412a-100c2

3U VPX 1/10/40 GbE and PCIe Switch, conduction-cooled -40°C .. +85°C

Technical Documentation

ComEth4412a Data Sheet
