3U VPX 57 Port 1/10/25/40/100GbE Switch and IP Router

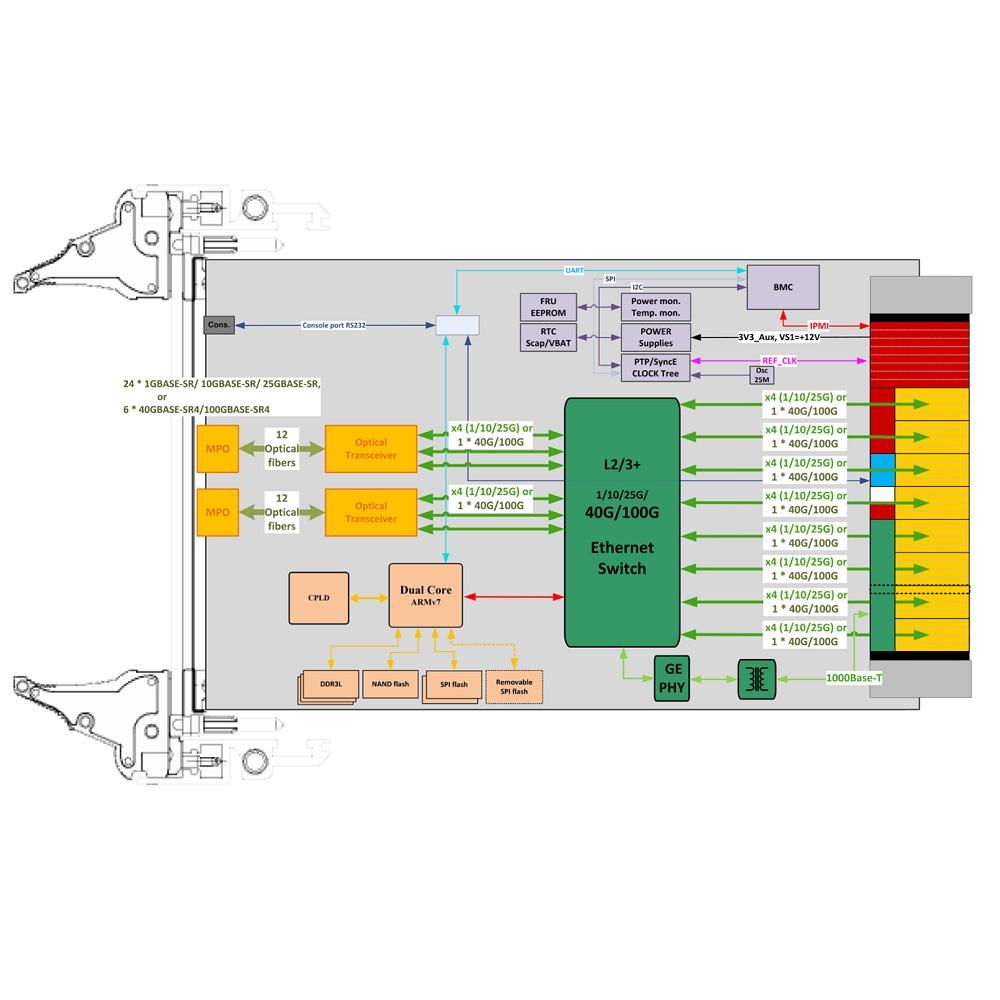

3U VPX 1/10/40/100GbE switch and IP router with up to 57 ports. Up to 14 40Gigabit Ethernet or 100Gigabit Ethernet ports or up to 56 10/25Gigabit Ethernet or 57 Gigabit Ethernet ports are available. The ComEth4682e integrates a layer 2 (Ethernet) and layer 3 switch and a control processors to support virtually separated control and data planes for highly secured 3U VPX systems. The Ethernet paket processor is managed by the dual-core ARM processor and offers remarkable switching capabilities.

The ComEth4682e also supports VPX System Management as defined by VITA 46.11 and based on the Intelligent Platform Management Interface (IPMI v1.5) for sensor management (temperature, voltage, current), inventory management, system configuration, recovery and diagnostic management. Interface Concepts Switchware supports a wide range of Layer 2/3 functions that can be managed via an easy-to-use graphical user interface (GUI), command line interface (CLI) or SNMP (v2c or v3). The switch is aligned with the SOSA (Sensor Open Systems Architecture) technical standard. The SOSA (Sensor Open Systems Architecture) consortium is a voluntary, consensus-based member consortium of the Open Group, a vendor-neutral technology standards organization that develops an open technical standard for sensors.

The ComEth4682e series is for five different environmental specifications: standard operating temperature range (0°C .. 55°C), extended operating temperature range (-20°C .. +65°C), rugged operating temperature range (-40°C .. +75/85°C), conduction cooled (-40°C .. +71°C) and conduction cooled (-40°C .. +85°C).

ORDER NOW

Technical Description

proimg1
  • 3U VPX Switch, VITA 46.0, VITA 46.11, VITA 65.0 and SOSA compliant

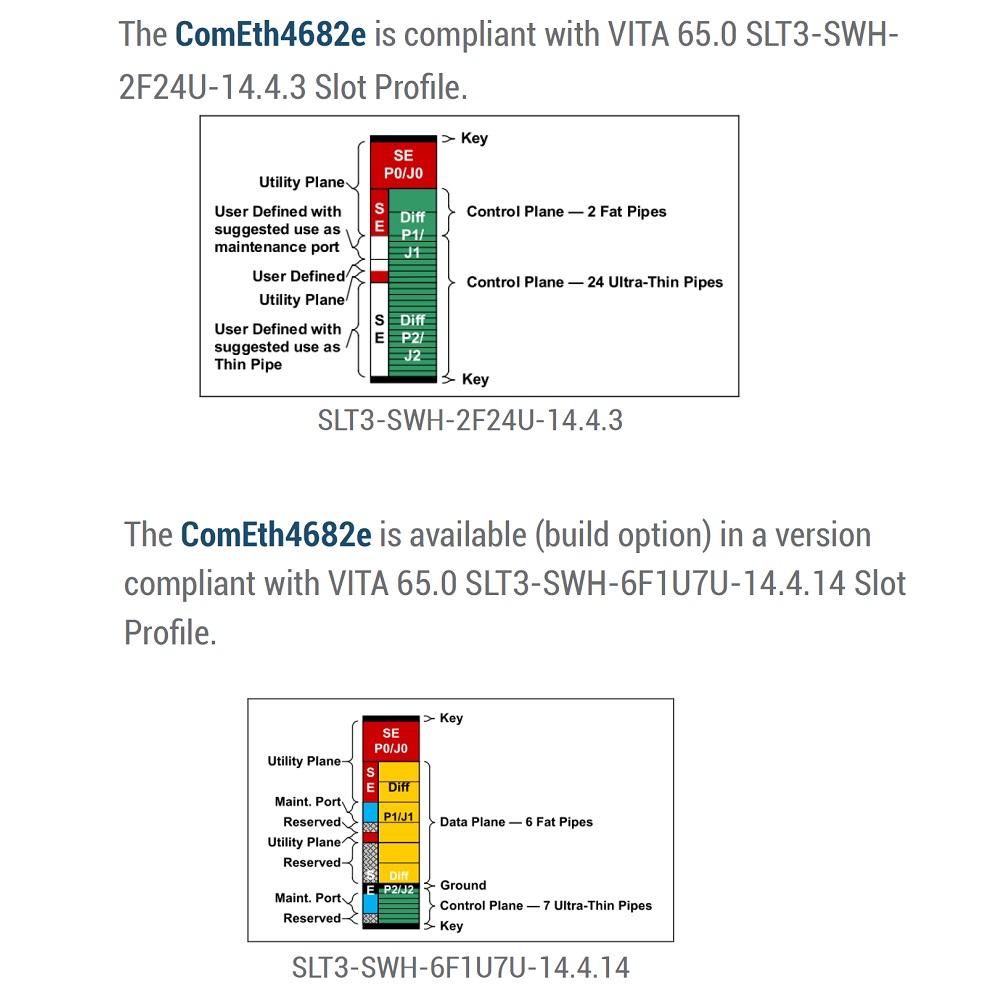

  • SLT3-SWH-2F24U-14.4.3, SLT3-SWH-4F16U-14.4.13, SLT3-SWH-8F-14.4.2, SLT3-SWH-6F8U-14.4.15 (32 Ports) and SLT3-SWH-6F1U7U-14.4.14 (31 ports – build option) slot profile
  • 100GbE, 40GbE, 25GbE, 10GbE and GbE switch and IP router
  • Up to 57 ports:
    • 8x fat pipe 40GBase-KR4 or 100GBase-KR4 rear I/O ports, each fat pipe can be splitted into 4x 25GBase-KR, 10GBase-KR or 1GBase-KX ports
    • 1x 1GBase-T rear I/O port
    • 6x optical 100GBase-SR4 or 40GBase-SR4 front panel ports via 2 MPO connector, each optical port can be splitted into 4x 25GBase-SR or 10GBase-SR or 1GBase-SR ports
  • Speed, duplex, auto-negotiation, flow control and power management on all ports
  • QoS on all ports
  • VLAN support / 802.1Q tagging
  • Port mirroring and port rights management
  • Static MAC address list and static IPM address list
  • Port static authentication
  • IEEE 802.1X port-based authentication
  • Ingress filtering
  • Storm prevention
  • Ingress / egress access lists
  • Static trunking / LACP
  • STP / RSTP
  • Secure switch management by HTTPS, SSH or SNMPv3
  • Login/password, key or certificate authentication
  • IGMP snooping (v1, v2, v3) and MLD snooping (v1, v2)
  • Layer3: ICMP, Proxy-ARP, DHCP-Relay, NAT, IPv4 routing (unicast/multicast), static IP routing (unicast and multicast), RIPv1, RIPv2 (IPv4), RIPng(IPv6), OSPFv2 (IPv4) / OSPFv3(IPv6)
  • PBIT results
  • Temperature and voltage information
  • Available for five different environment classes: Standard operating temperature range (0°C .. 55°C), extended operating temperature range (-20°C .. +65°C), rugged operating temperature range (-40°C .. +71/85°C), conduction-cooled (-40°C .. +71°C) and conduction-cooled (-40°C .. +85°C)
  • 2 years warranty

Order Information

ComEth4682e-100

3U VPX 100GbE Switch, 0°C .. +55°C

ComEth4682e-100e

3U VPX 100GbE Switch, -20°C .. +65°C

ComEth4682e-100r

3U VPX 100GbE Switch, -40°C .. +75/85°C

ComEth4682e-100c1

3U VPX 100GbE Switch, conduction-cooled -40°C .. +71°C

ComEth4682e-100c2

3U VPX 100GbE Switch, conduction-cooled -40°C .. +85°C

Technical Documentation

Cometh4682e-DS

Cometh4682e Data Sheet
