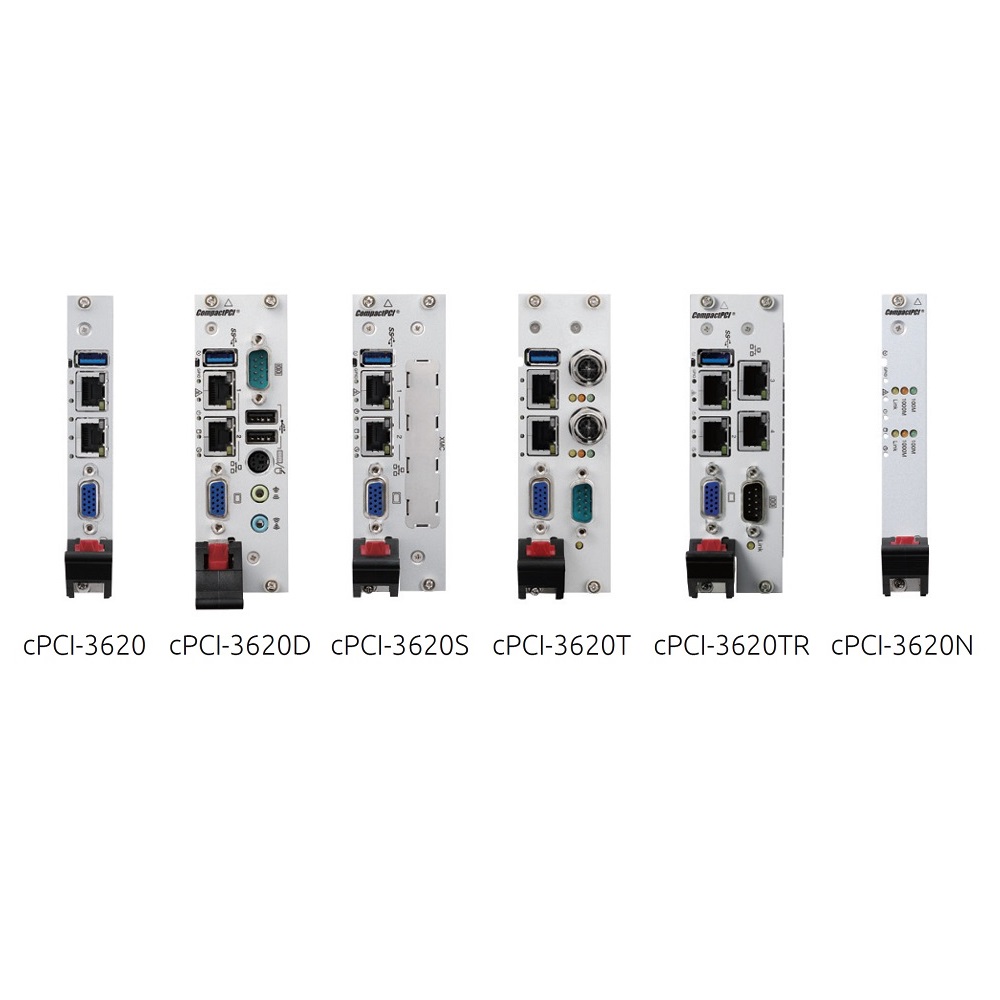

cPCI-3620 3U CompactPCI Intel Atom Low Power CPU Board with VGA Graphics Interface and opt. PMC/XMC Slot

Intel Atom CPU board with up to four Gigabit Ethernet ports, VGA graphics Interface and opt. PMC/XMC slot. ADLINK's cPCI-3620 3U 4/8/12HP CompactPCI board with an Quad Core 1.9 GHz Intel Atom E3845 or a Dual Core 1.75 GHz Intel Atom E3827 has up to 4 GB DDR3L-1333 MHz soldered SDRAM .
The cPCI-3620 offers up to four Gigabit Ethernet ports, up to four USB ports, one VGA port, up to three RS-232 ports, a 32 GB SSD and one SATA port for a 2,5" HDD/SSD. Opt. one PS2 mouse/keyboard port, audio interfaces with line out and microphone input and one PMC/XMC site is available.

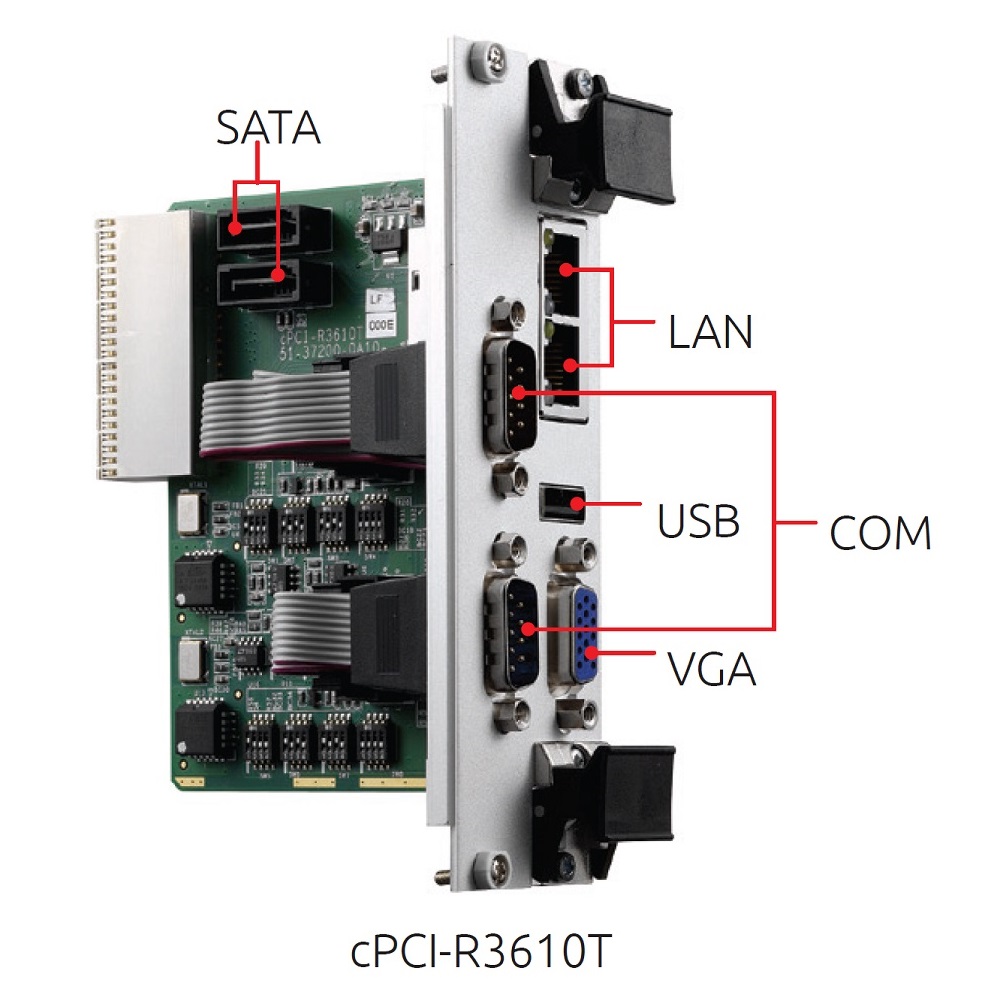

The cPCI-R3610T transition module has two Gigabit Ethernet ports, 2 RS-232 ports, one USB port, SATA port, and one VGA port.

The product is end of life on 2.11.2026. If you have any questions, please contact us.

ORDER NOW

Technical Description

proimg1
  • 3U 4/8HP universal-slot CPU board, PICMG 2.0 R 3.0, PICMG 2.1 R 2.0 hot-swap, 32bit/33MHz cPCI bus interface, 3.3/5 Vio
  • Quad Core 1.9 GHz Intel Atom E3845 with 2 MB L3 cache
    Dual Core 1.75 GHz Intel Atom E3827 with 1 MB L3 cache
  • Up to 4 GB DDR3L-1333 ECC SDRAM, soldered
  • VGA graphics integrated in CPU, front panel and rear I/O VGA connector
  • 32 GB SSD
  • SATA port for a 2.5″ HDD
  • Opt. PMC/XMC slot, 32bit/66 MHz, XMC site with PCIe x1 link
  • Up to 4 Gigabit Ethernet ports, two front panel ports or via J2, opt. two M12 MIL-STD ports on the cPCI-3620T version, Intel I210, 82574L controller
  • Up to three RS-232 ports, two RS-232 ports via RTM, opt. one RS-232 port on the cPCI-3620D, cPCI-3620L and cPCI-3620T version
  • Up to four USB ports, one USB 3.0 front panel port and one USB 2.0 port via RTM, opt. 2 USB 2.0 ports on the cPCI-3620D version and opt. one USB 2.0 port on the cPCI-3620L version
  • Opt PS2 mouse/ keyboard front panel port on the cPCI-3620D version
  • Opt. transition module with connectors for 2 Gigabit Ethernet ports, 2 RS-232 ports, one USB 2.0 port, one SATA 3Gbit/s port, and one VGA port
  • Opt. Audio Mic-in and Line-out front panel ports on the cPCI-3620D version
  • AMI EFI BIOS with dual 64 Mbit SPI Flash memory
  • HW monitor and watchdog timer
  • In 2 environmental classes available: -40°C .. +85°C (with air flow) and -40°C .. +70°C (fanless)
  • 2 years warranty

Order Information

cPCI-3620-330

3U/4HP CPCI Atom E3845 CPU board, 4GB RAM

cPCI-3620D-330

3U/8HP CPCI Atom E3845 CPU board, 4GB RAM

cPCI-3620N-130

3U/4HP CPCI Atom E3827 CPU board, 4GB RAM

cPCI-3620T-330

3U/8HP CPCI Atom E3845 CPU board, 4GB RAM

cPCI-3620X-130

3U/8HP CPCI Atom E3827 CPU board, 4GB RAM

cPCI-R3610

8HP rear transition module for cPCI-3620, 50mm, 2 GbE ports, 2 RS-232 ports, USB, SATA, VGA

cPCI-R3610T

8HP rear transition module for cPCI-3620, 80mm, 2 GbE ports, 2 RS-232 ports, USB, SATA, VGA

Technical Documentation

cPCI-3620-DS

cPCI-3620 data sheet

cPCI-3620-UM

cPCI-3620 user manual
