cPCI-6540

cPCI-6540 6U CompactPCI Xeon/Core i7 Gen9 CPU Board with up to 64 GB SDRAM and 1 or 2 PMC/XMC slots

6U CPCI CPU board with Intel Xeon or 9th generation Core i7 processor, C240 ​​chipset, up to 64 GB DDR4-2666 ECC SDRAM and one or two PMC/XMC slots. Adlink's cPCI-6540 series is available with up to 2.0 GHz 6-core Xeon or up to 4.4 GHz 6-core i7 processors.

The boards come with 16 to 64 GB DDR4-2444 ECC SDRAM, 16 to 32 GB soldered plus additional memory in the SO-CDIMM socket. SSD (only cPCI-6540) and M.2 modules can be optionally equipped. The cPCI-6540 offers one and the cPCI-6540V two PMC/XMC slots for PMCs with 64-bit/133 MHz and XMCs with PCIe x8 Gen2.

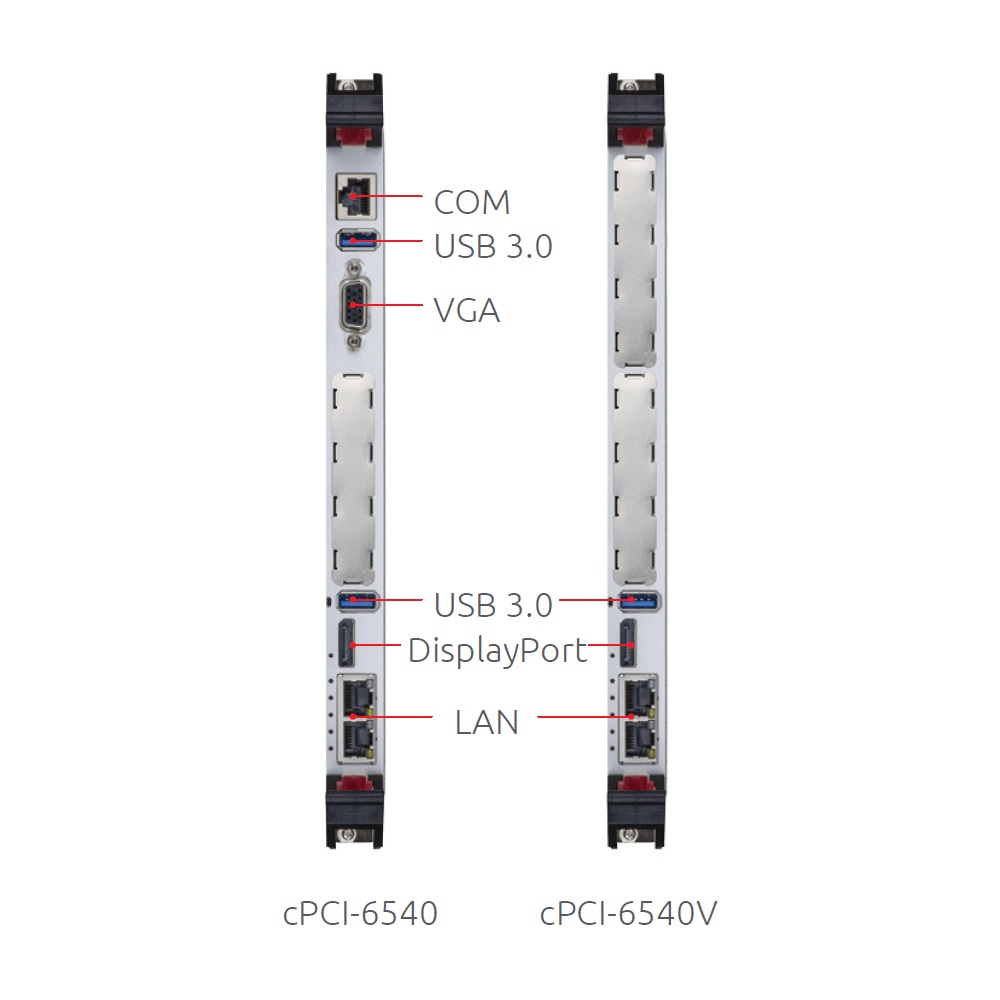

The cPCI-6540 front panel has two GbE ports, an RS-232 port, two USB 3.0 ports, a VGA port, a DisplayPort and a PMC/XMC slot. The cPCI-6540V front panel offers two GbE ports, a DisplayPort, USB 3.0 plus two PMC/XMC slots. The following interfaces are available for rear I/O: 2 GbE ports, DVI-I, eDP, PCIe x4, 3 SATA 3.0 ports, 6 USB 2.0 ports, USB 3.1, 16 GPIO, HD audio, KB/MS and two serial ports. A range of rear transition modules enables these I/O extensions to be used and, depending on the module, also offers additional interfaces.

The operating temperature range is -20°C to +70°C, the cPCI-6540 board family is also optionally available in the extended range from -40°C to +85°C.

Board Support Packages are available for Microsoft Windows 10, Windows Server 2016 (Xeon only), Ubuntu, SuSe, Redhat Enterprise and Wind River Linux (Yocto), Wind River VxWorks 7.0 on request.

ORDER NOW

TECHNISCHE BESCHREIBUNG

proimg1

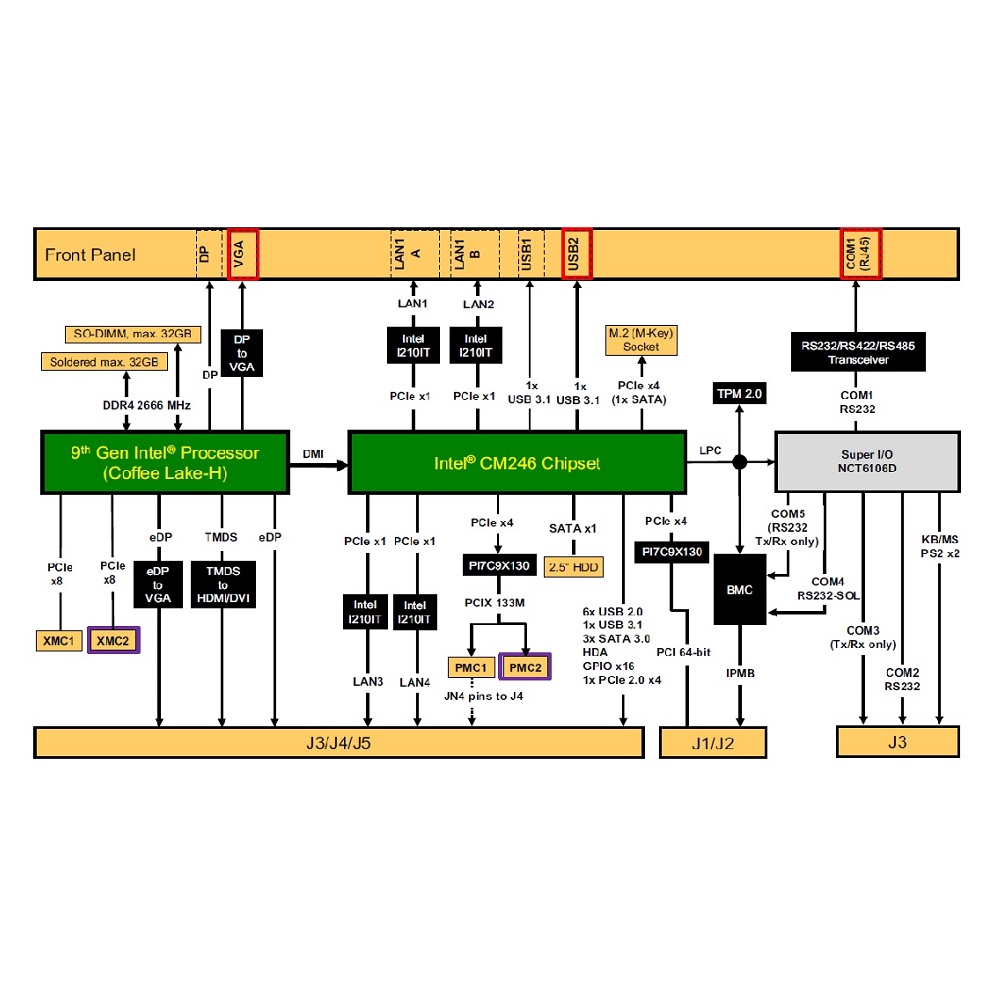

  • 6U 4HP universal slot CPU board, PICMG 2.0 R3.0, PICMG 2.1 R2.0, PICMG 2.9 R1.5, PICMG 2.16 R1.0, 32/64 bit 33/66MHz cPCI bus interface
  • Intel 6-core Xeon E-2276ME with 12MB cache, Intel 6-core 2.7/4.4GHz Core i7-9850HE with 9MB Cache, Intel 4-core 1.6/2.9GHz Core i3-9100HL with 6MB Cache or Intel 2-core Celeron G4930E with 2MB cache
  • 16 to 64GB DDR4-2666 ECC SDRAM, up to 32GB soldered, SODIMM socket for up to 32GB
  • Mobile Intel CM246 chipsets
  • Intel processor graphics up to DX 11.2 and OGL4.3, dual mode DP front panel port (DVI, HDMI,VGA), DVI-I and eDP via rear I/O, three independent displays
  • Two front panel GbE Ethernet ports (I210IT), two more I210IT rear I/O ports
  • PMC/XMC sites 64bit/133MHz or PCIe x8 Gen2, one slot on cPCI-6540, two on cPCI-6540V
  • One RS-232/422/485 front panel serial port, two RS-232 rear I/O ports
  • Two USB 3.1 ports on front panel, six USB2.0 and one USB 3.0 rear I/O ports
  • SATA III 2.5″ slot on cPCI-6540, PCIe x4 M.2 site, 3 SATA II rear I/O ports
  • HD Audio rear I/O port
  • PS/2 keyboard/mouse rear I/O ports
  • AMI UEFI BIOS
  • Operating temperature range -20°C bis +70°C, optional -40°C bis +85°C
  • 2 years warranty

Bestellbezeichnungen

cPCI-6540-402

cPCI-6540 CPU board with Intel Xeon E-2276ML, 64GB SDRAM, 2 GbE ports, 2 USB 3.0 ports, RJ-45 COM port, PMC/XMC site

cPCI-6540-401

cPCI-6540 CPU board with Intel Xeon E-2276ML, 32GB SDRAM, 2 GbE ports, 2 USB 3.0 ports, RJ-45 COM port, PMC/XMC site

cPCI-6540-302

cPCI-6540 CPU board with Intel Core i7-9850HL, 64GB SDRAM, 2 GbE ports, 2 USB 3.0 ports, RJ-45 COM port, PMC/XMC site

cPCI-6540-100

cPCI-6540 CPU board with Intel Core i3-9100HL, 16GB SDRAM, 2 GbE ports, 2 USB 3.0 ports, RJ-45 COM port, PMC/XMC site

More options on request.

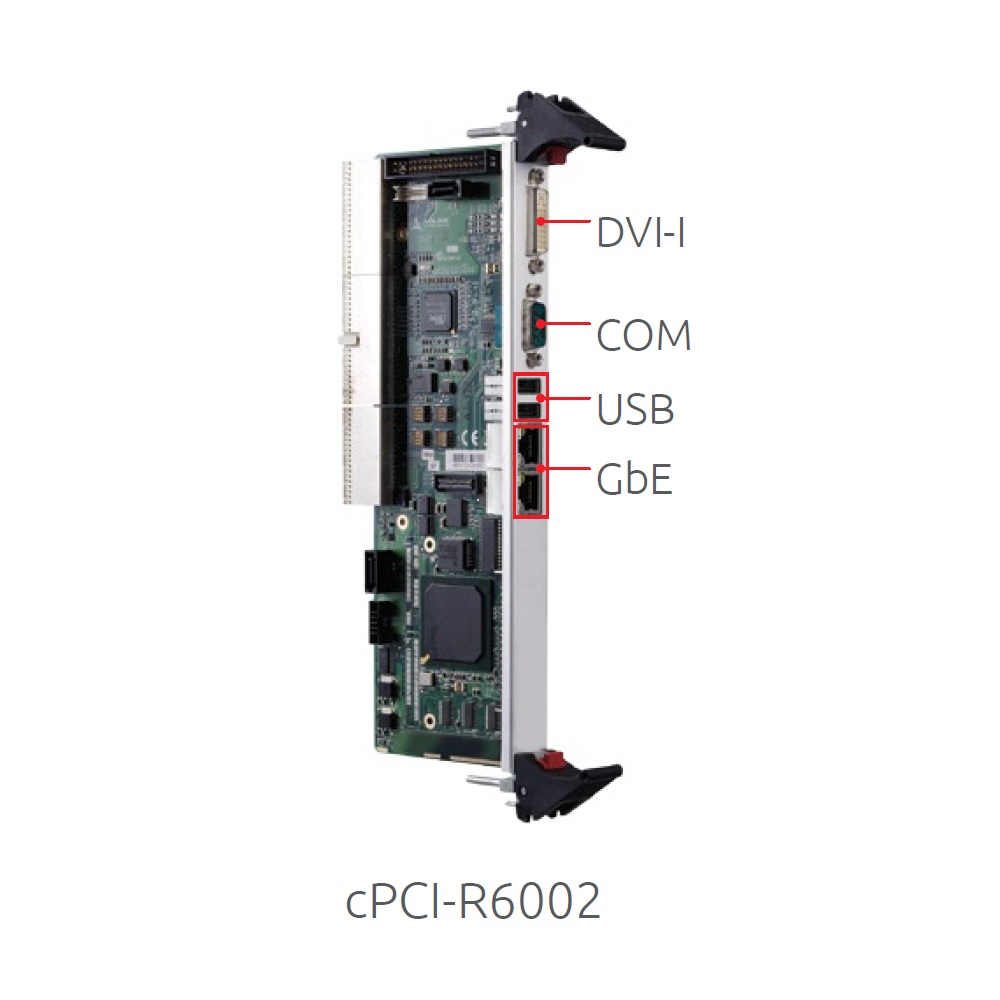

cPCI-R6002

4HP rear I/O module, 2x GbE, 2x COM, 3x USB, 2x SATA, DVI-I

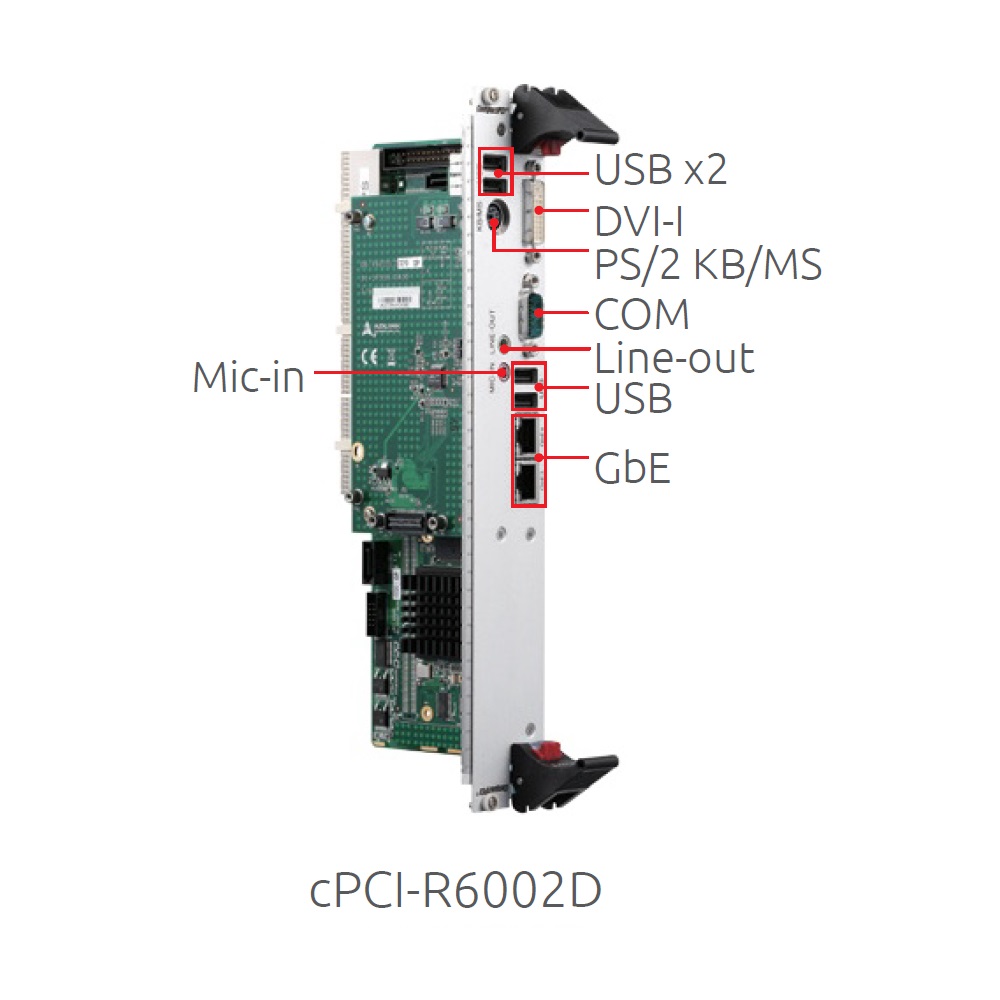

cPCI-6002D

8HP rear I/O module, 2x GbE, 2x COM, 5x USB, 2x SATA, VGA, PS/2 KB/MS

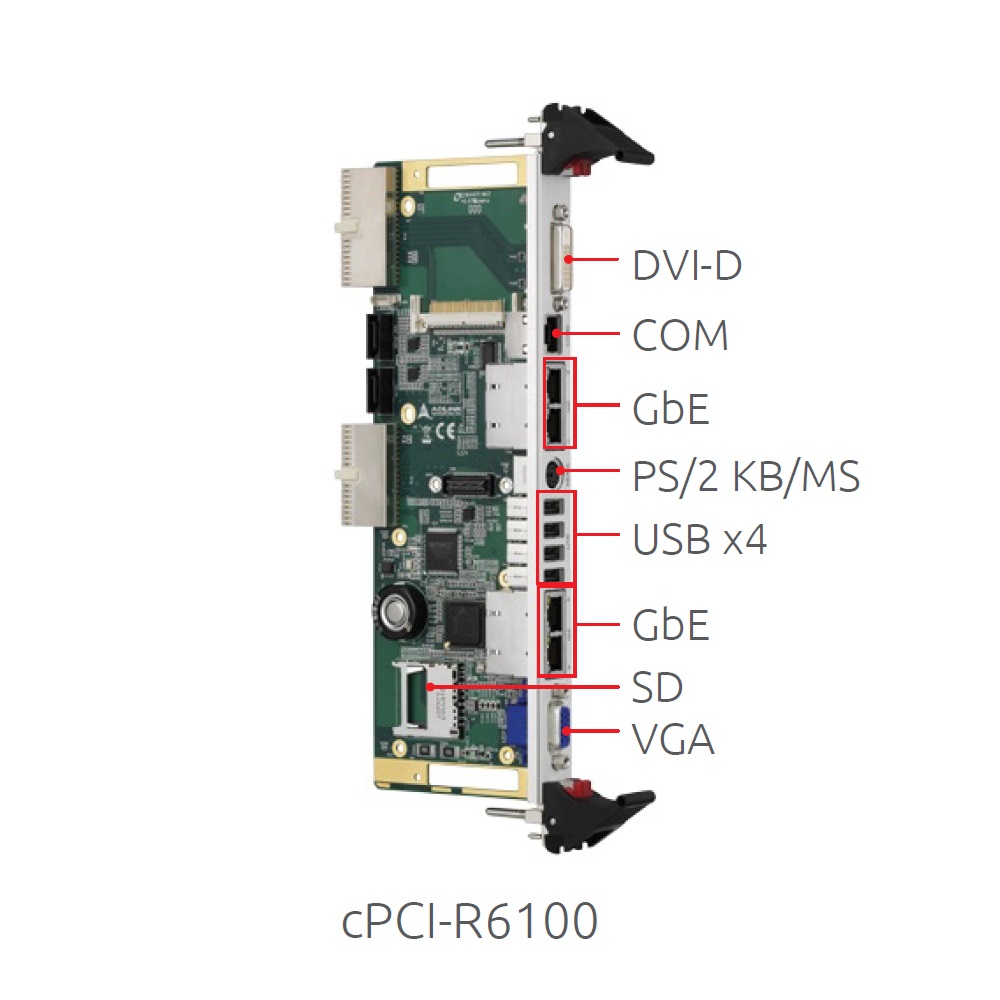

cPCI-R6100

4HP rear I/O module, 4x GbE, COM, 4x USB, 2x SATA, DVI, VGA, PS/2 KB/MS, CF, SD socket

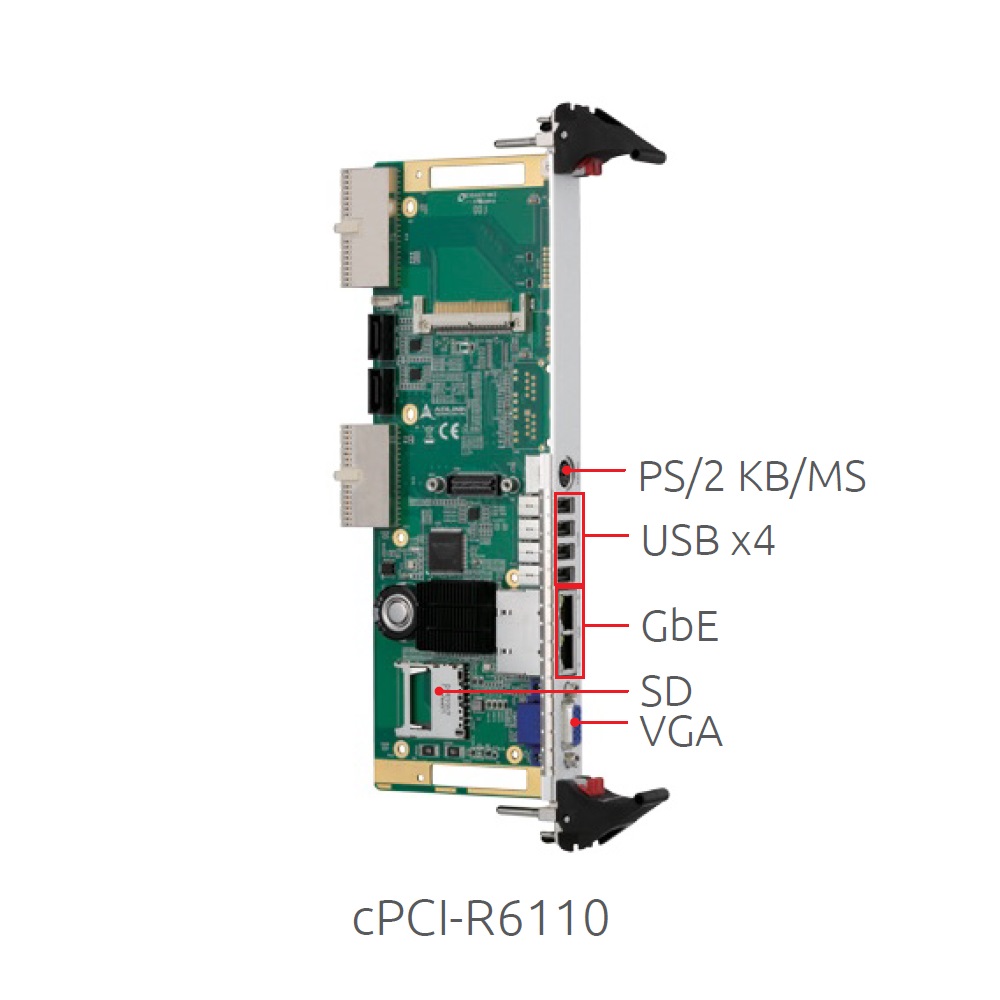

cPCI-R6110

4HP rear I/O module, 2x GbE, COM, 4x USB, 3x SATA, DVI, VGA, PS/2, CF, SD socket

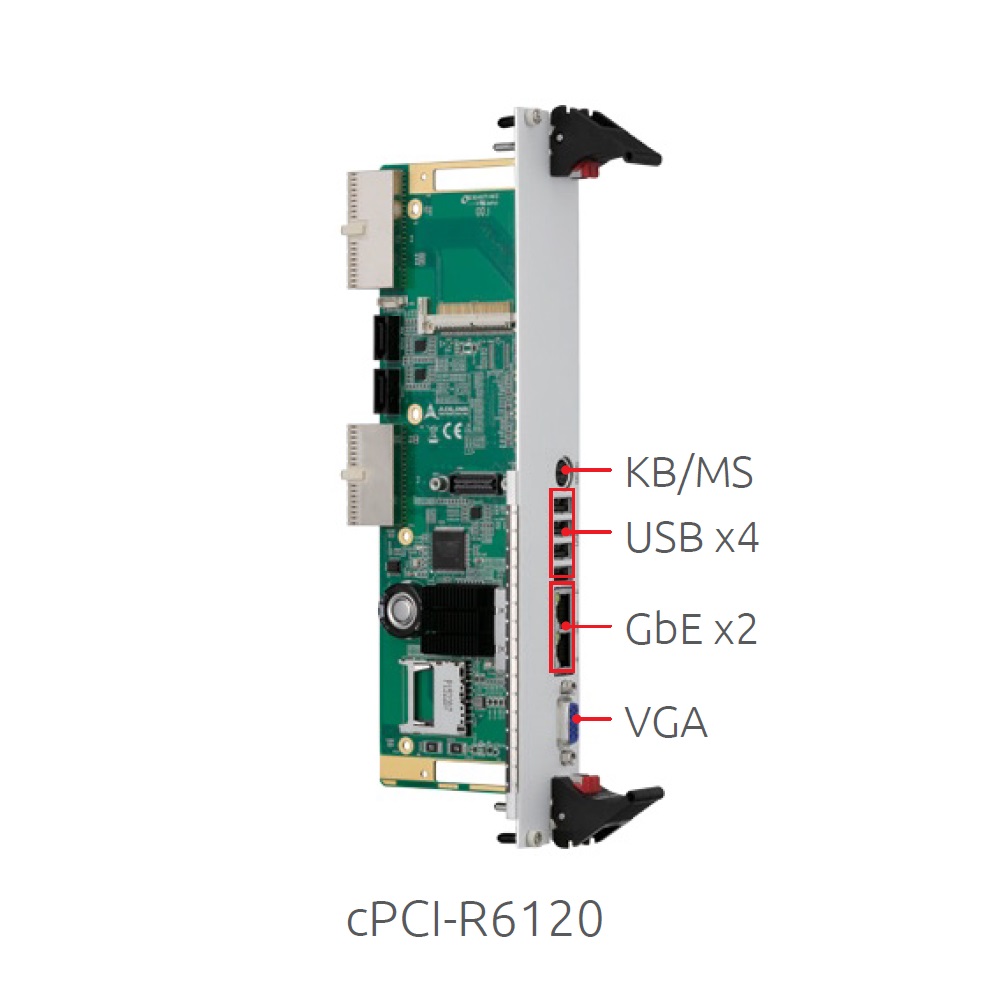

cPCI-R6120

8HP rear I/O module, 2x GbE, 4x USB, 2x SATA, VGA, PS/2 KB/MS, CF, SD socket, 2x SATA sites

cPCI-R6500/RTX300

8HP rear I/O module with NVIDIA RTX3000 MXM 3.0 graphics module type A with DVI-I, DVI-D, 2x GbE, 2x USB, COM, PS/2 KB/MS, 3x SATA

cPCI-R6500/A8860

4HP rear I/O module with AMD E8860MF MXM 3.0 graphics module with DVI-I, DVI-D, 2x GbE, USB
