cPCI-6636

cPCI-6636 6U CompactPCI Core i7 Gen. 6 or Xeon E3 CPU Board with up to 32 GB RAM, SEMA Support and opt. XMC Site

Core i7 Gen. 6 or Xeon E3 CPU Board. The boards are available with a 2.8 GHz Quad-Core Intel Xeon E3-1505M v5 or 2.8 GHz Quad-Core Intel Core i7-6820EQ or a 2.7 GHz Dual-Core Intel Core i3-6100E CPU. Up to 32 GB DDR4-2133 SDRAM are soldered and mounted on the board. The CM236 chipset supports ECC SDRAM.

The cPCI-6636 series offers four Gigabit Ethernet ports, up to 8 USB 3.0 ports, up to 6 RS-232 ports or one RS-232/422/485 port, one SATA 6Gbit/s port, three SATA 3Gbit/s ports, one SATA 6Gbit/s port for an onboard 2.5 HDD/SSD and audio interfaces. The boards support DirectX 12 and OpenGL up to version 4.5. The 4HP version has a CFast socket and the 8HP versions have a XMC site. The cPCI-6636 and cPCI-6636D versions have a DVI-I port and two DVI ports via rear I/O. The cPCI-6636DZ version provides two VGA front panel ports.

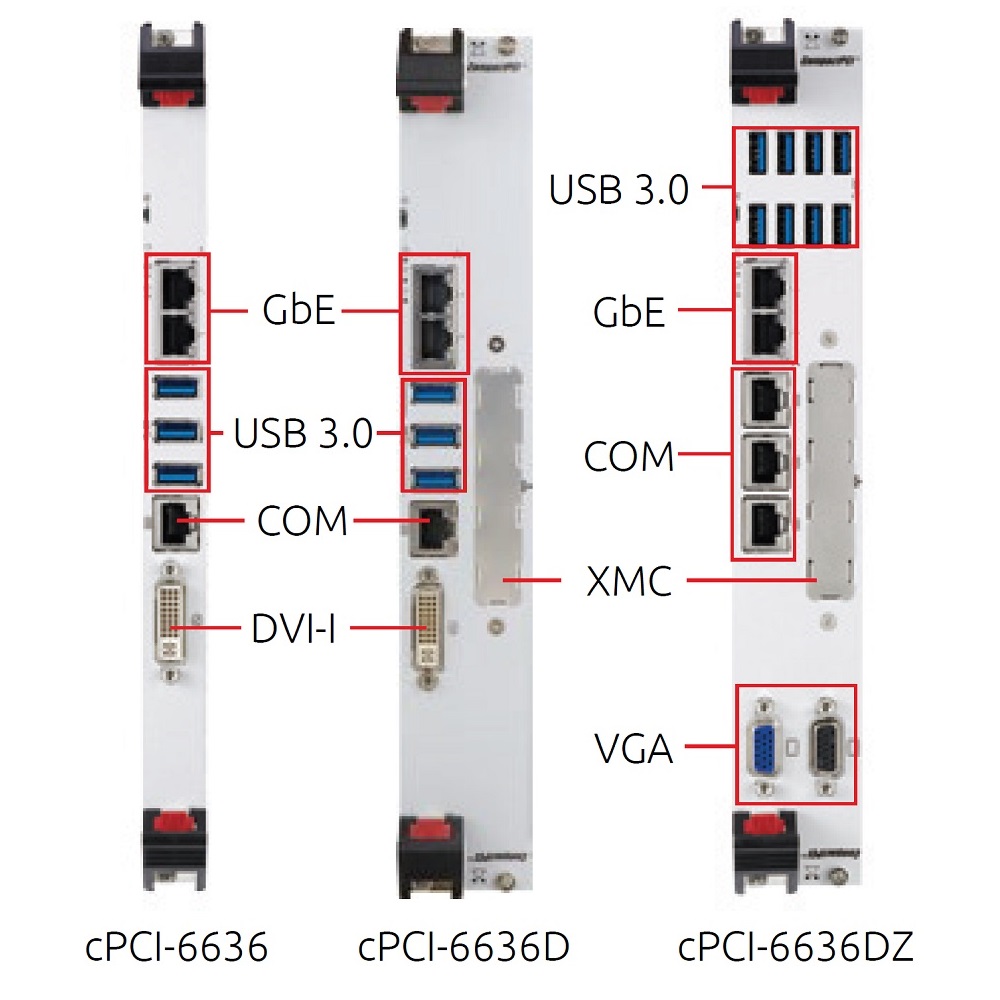

Two Gigabit Ethernet ports, one RS-232 port, 3 USB 3.0 ports, and one DVI-I port are on the front panel. The cPCI-6636D version has additional XMC front I/O. The cPCI-6636DZ version provides 2 Gigabit Ethernet ports, 8 USB 3.0 ports, 3 RS-232 ports, 2 VGA ports and XMC front I/O.

Board Support Packages are available for Microsoft Windows 10 (64bit), Microsoft Windows 7 Pro (64bit), RHEL 7.3 and above (64bit), Ubuntu 16.10 (64bit), Fedora 22 (64bit), and VxWorks 7.

ORDER NOW

Technical Description

proimg1
  • 6U 4HP/8HP universal-slot CPU board, satellite mode on the cPCI-6636 / cPCI-6636D, PICMG 2.0 R 3.0, PICMG 2.1 R 2.0, PICMG 2.16 R 1.0, 64-bit/66 MHz PCI bus interface, 3.3/5 Vio
  • Quad-Core 2.8/3.7 GHz Intel Xeon E3-1505M v5, 8MB cache,
    Quad-Core 2.8/3.5 GHz Intel Core i7-6820EQ, 8MB cache,
    Dual-Core 2.7 GHz Intel Core i3-6100E, 3MB cache
  • Up to 32 GB 2133 MHz DDR4 SDRAM
    ECC supported with CM236 chipset
  • Intel HM170 chipset on the cPCI-6636DZ version or
    Intel CM236 chipset on the cPCI-6636 / cPCI-6636D version
  • Graphics integrated in CPU,
    Intel HD graphics 530 on Core i3/i7 version,
    Intel HD graphics P530 on Xeon E3 version,
    DirectX 12 and OpenGL 4.4 support for Xeon E3,
    DirectX 12 and OpenGL 4.5 support for Core i3/i7,
    cPCI-6636 / cPCI-6636D: One DVI-I and two DVI to the rear,
    cPCI-6636DZ: Two VGA front panel ports
  • 2 Gigabit Ethernet front panel ports switchable to the rear and
    2 Gigabit Ethernet PICMG 2.16 ports to J3,
    Intel I210IT and Intel I219LM
  • One XMC site on the cPCI-6636D / cPCI-6636DZ version
  • Three RJ-45 front panel ports (converts to 6 RS-232 Tx/Rx ports) on the cPCI-6636DZ version or
    one RJ-45 (RS-232/422/485) front panel port on the cPCI-6636 / cPCI-6636D version
  • 8 USB 3.0 front panel ports on the cPCI-6636DZ version or
    3 USB 3.0 front panel ports on the cPCI-6636 / cPCI-6636D version
  • Five SATA ports, 1 SATA 6Gbit/s port for onboard 2.5 HDD/SSD, one 6 SATA Gbit/s onboard port, 3 SATA 3 Gbit/s ports to J3 and J5
  • One CFast socket on the 4HP version
  • Intel High Definition audio to J3
  • AMI UEFI BIOS with 64 Mbit SPI Flash
  • Watchdog and hardware monitor with SEMA 3.5 support
  • In 2 environmental classes available: standard (0°C .. +60°C) and extended grade version (-20°C .. +70°C)
  • 2 years warranty

Order Information

cPCI-6636SL/6820E/M16-16

6U/4HP CompactPCI CPU board, Quad Core 2.8 GHz Core i7-6820EQ, 16 GB RAM, RS-232, DVI-I, 3x USB and CFast

cPCI-6636SLD/6820E/M16-16

6U/8HP CompactPCI CPU board, Quad Core 2.8 GHz Core i7-6820EQ, 16 GB RAM, RS-232, DVI-I, 3x USB and 1 XMC site

cPCI-6636SLDZ/6820E/M4-0

6U/8HP CompactPCI CPU board, Quad Core 2.8 GHz Core i7-6820EQ, 4 GB RAM, 6x RS-232, 2x VGA, 8x USB and 1 XMC site

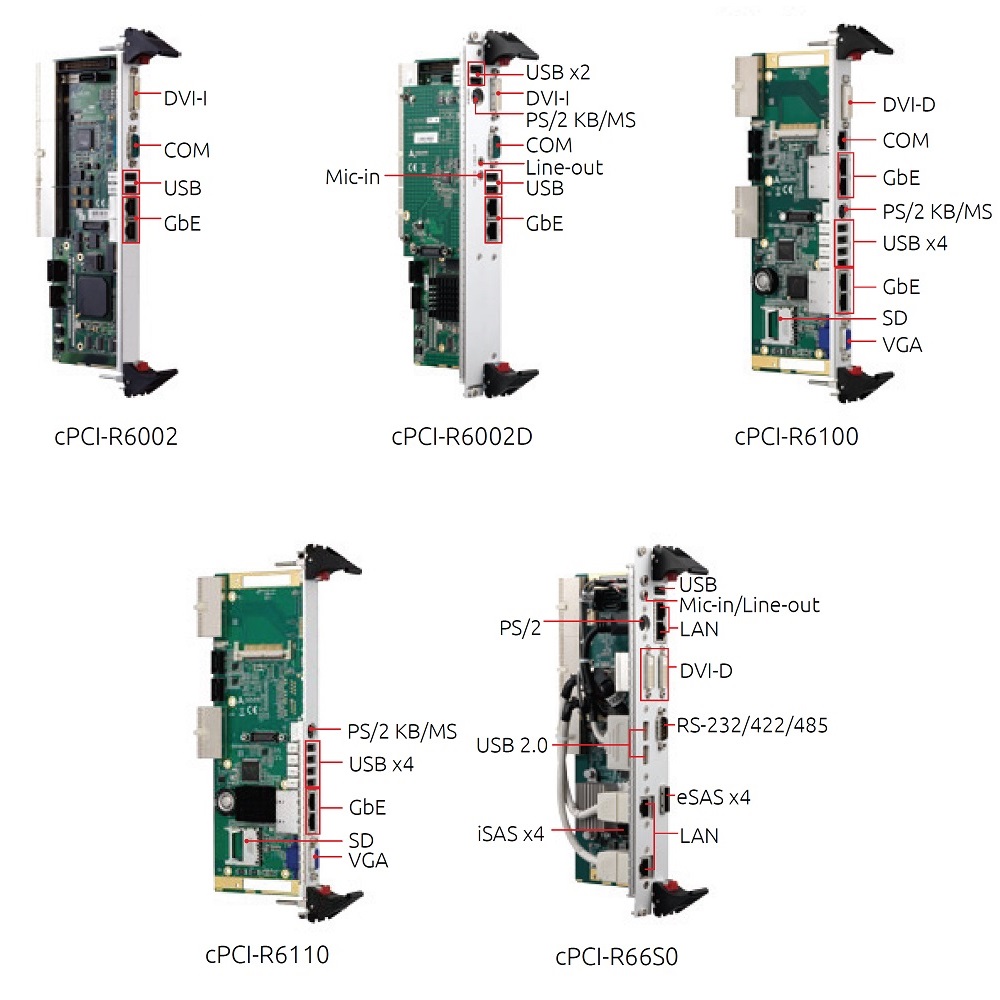

cPCI-R6002

4HP Transition module with 2x GbE, 3x USB 2.0, 2x SATA, 2 RS-232, DVI-I

cPCI-R6002D

8HP Transition module with 2x GbE, 4x USB 2.0, 1x RS-232, DVI-I, PS/2, Mic-In, Line-Out

cPCI-R6100

4HP Transition module with 4x GbE, 4x USB 2.0, RS-232, DVI, VGA, PS/2

cPCI-R6110

4HP Transition module with 2x GbE, 4x USB, VGA, PS/2

cPCI-R6120

8HP Transition module with 4x GbE, 3x USB, 2x DVI-D, 8x SAS, PS/2, RS-232, audio

Technical Documentation

cPCI-6636 data sheet
