cPCI-6S10 6U CompactPCI 10Gigabit Ethernet Switch with ARM Cortex-A9 Processor

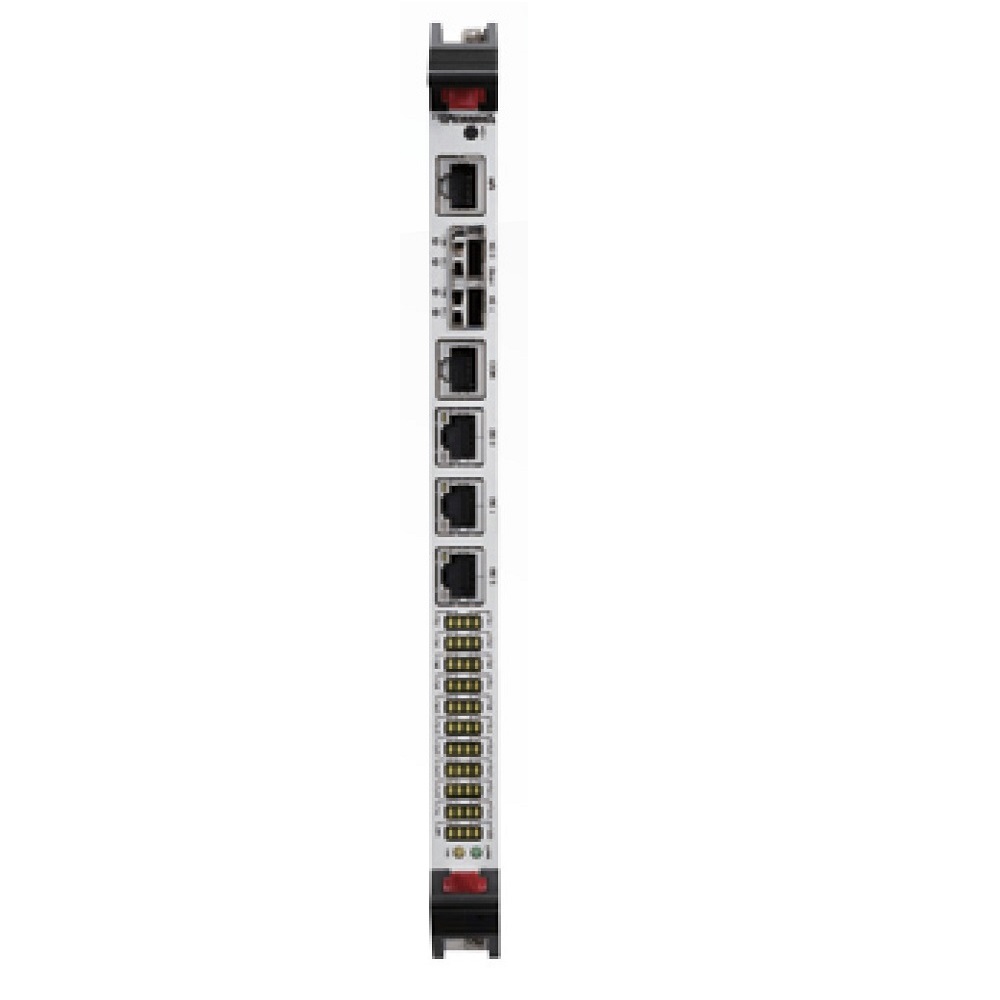

2 port 10Gigabit Ethernet and 24 port Gigabit Ethernet Switch with integrated ARM Cortex-A9 processor. Adlink Technologies 6U CompactPCI Switch cPCI-6S10 has two 10Gigabit Ethernet, three 1000BASE-T, one 100BASE-TX and one RS-232 ports on the front panel. The cPCI-6S10 offers 8MB SLC QSPI flash, 500 KB on-chip frame buffer and EMI protection.

The cPCI-6S10 series supports full and half duplex mode, flexible link aggregation (IEEE 802.3ad), DSCP remarking for IPv4 and IPv6, and Layer 2/3 switching with advanced support for VLANs, QoS and IPv6. The QoS allows to prevent packet loss with back pressure or flow control. It supports multiple symmetric and asymmetric protocols like IEEE 802.1D, IEEE 802.1w, IEEE 802.1s and IEEE 802.1X. In addition the switch can handles up to 4k MAC addresses, 8k VLANs (IEEE 802.1Q) and Jumbo frames.


Technical Description

  • 6U/4HP CompactPCI switch, PICMG 2.0 R3.0, PICMG 2.9 R1.0, PICMG 2.16 R1.0, IEEE 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1X, 802.3ad, and 802.3x compliant
  • Broadcom BCM56150 24 port Gigabit Ethernet and 2 port 10Gigabit Ethernet switch
  • Layer 2/3 switching with advanced support for VLANs, QoS and IPv6
  • Full and half duplex mode
  • ARM Cortex-A9 CPU integrated in Broadcom BCM56150
  • 8MB SLC QSPI flash
  • 4k MAC address management
  • 8k VLANs (IEEE 802.1Q)
  • Two 10Gigabit Ethernet SFP+ front panel ports
  • 24 1000Base-T ports, 3 front panel ports, 20 ports via J3/J5, and 1 port via J4
  • One 10/100Base-TX front panel port for remote management
  • 500 KB on-chip frame buffer
  • DSCP remarking for IPv4 and IPv6
  • Programmable classifier QoS, IEEE 802.1p and DSCP for IPv4 and IPv6
  • Flexible link aggregation (IEEE 802.3ad)
  • Back pressure and flow control (IEEE 802.3x), symmetric and asymmetric multiple protocol support: IEEE 802.1D, IEEE 802.1w, IEEE 802.1s and IEEE 802.1X
  • Jumbo Frame support
  • RS-232 front panel management port
  • EMI protection
  • Hardware monitor
  • 0°C .. +60°C operating temperature range
  • 2 years warranty

Order Information


6U cPCI Switch with 24 GbE and 2 10GbE ports, PacketManager software

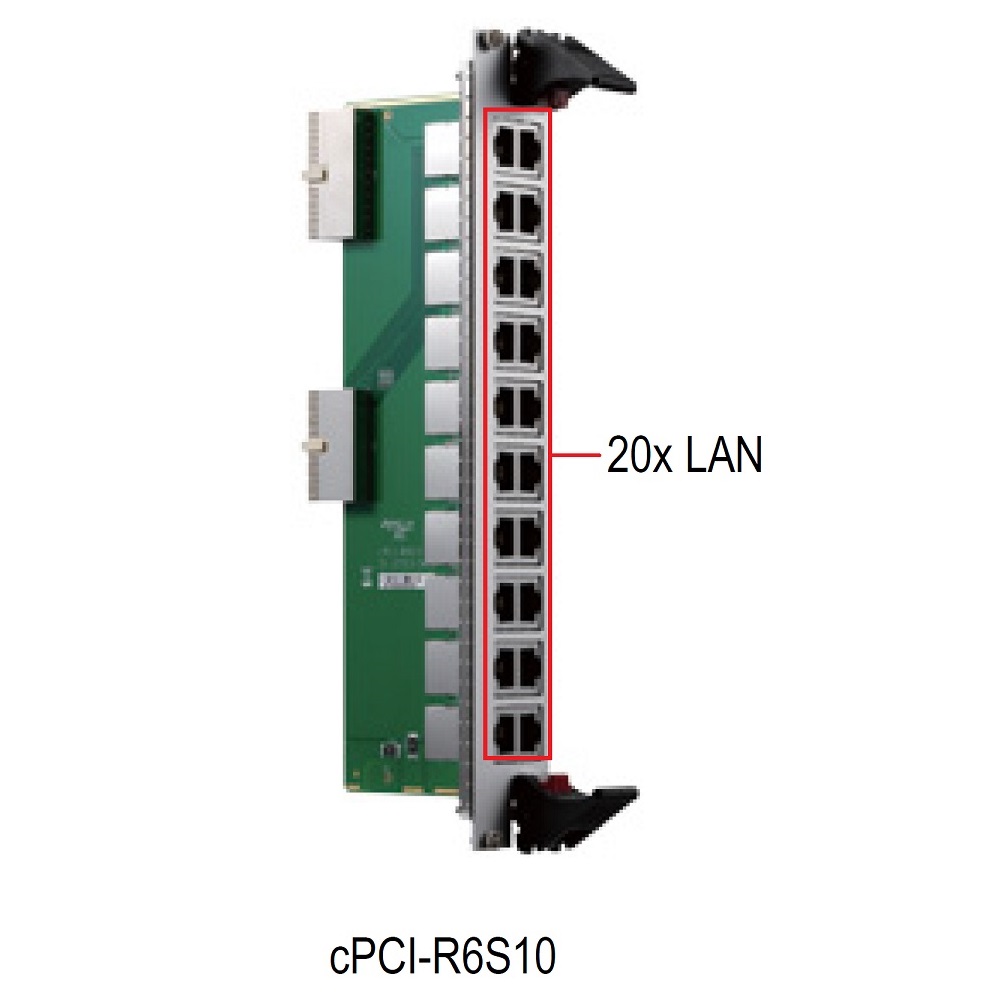

6U/8HP cPCI transition module with 20 GbE ports


8 slot 64bit 6HE cPCI H.110 & 2.16 backplane cBP-6614A

Technical Documentation

cPCI-6S10 data sheet
