cPCI-8602 6U CompactPCI Dual 64 bit PMC Carrier Board

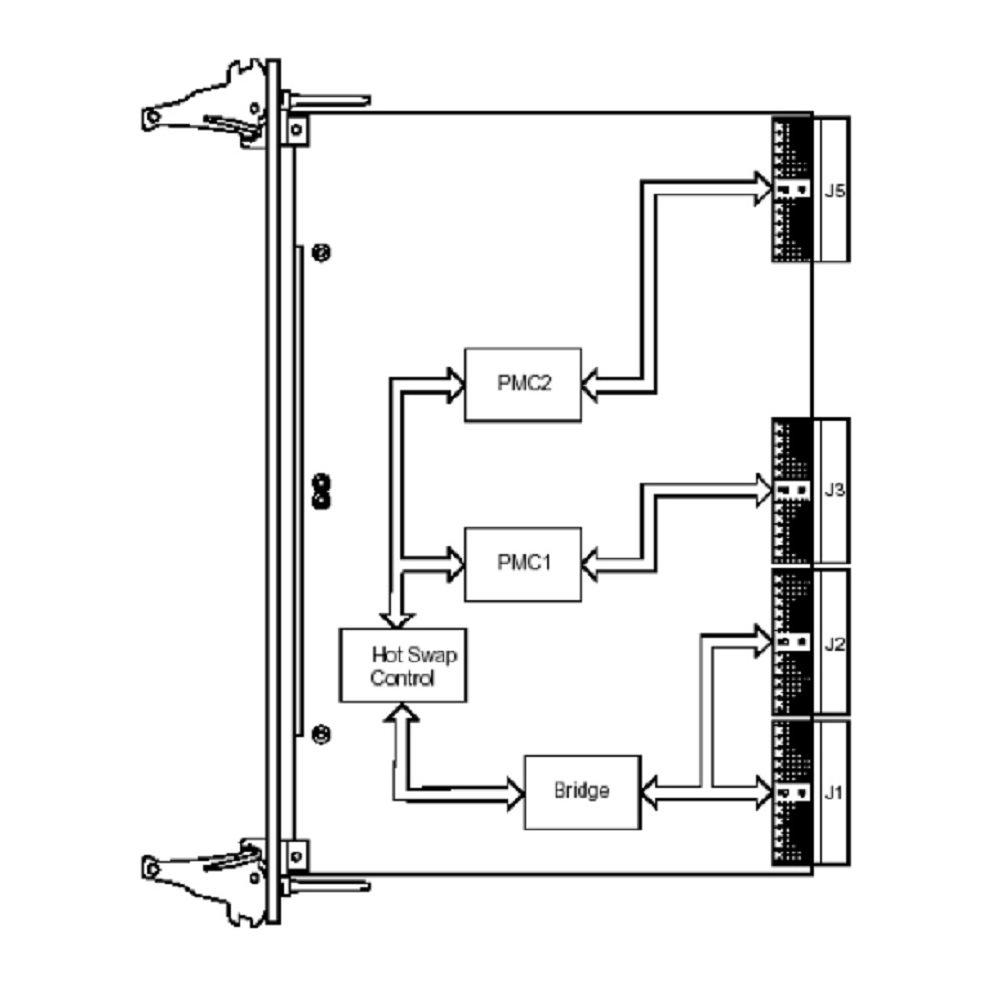

6U CompactPCI carrier board for two PMC modules. ADLINK Technology's cPCI-8602 supports 64bit/66MHz operation with 3.3V or 5V signalling voltage (Vio). The board provides front panel and backplane I/O. The backplane I/O is routed via J3 and J5 and allows the use with standard backplanes.

The board is compliant to CompactPCI hot swap specifications PICMG® 2.1, Rev. 1.0.


Technical Description

  • 6U CompactPCI board, PICMG 2.0 R1.1 compliant, 64bit/66 MHz PCI interface, PCI 2.1 and hot swap PICMG 2.1 R1.0 compliant, 3.3/5V Vio
  • Two 64bit/66MHz PMC sites for IEEE 1386.1 compliant modules
  • Front panel I/O and backplane I/O via J3 and J5
  • DEC 21154 64-bit PCI bridge
  • 5°C .. 50°C operating temperature range
  • 2 years warranty

Order Information


6U CPCI 2 port PMC carrier board
