cPCI-A3525 3U CompactPCI Serial Intel Xeon/Core i7 Gen 9 CPU Board with up to 32GB RAM and two DisplayPorts

CompactPCI Serial Intel Xeon/Core i7 Gen 9 CPU Board with up to 4 Gigabit Ethernet ports and two DisplayPorts. ADLINK's cPCI-A3525 is a 3U/4HP CompactPCI board with CM246 chipset and up to 32 GB DDR4-2666 MHz ECC SODIMM SDRAM.

The cPCI-A3525 offers two dual mode DisplayPorts (DVI, VGA and HDMI), up to 4 Gigabit Ethernet ports, 7 SATA ports, two USB 3.0, 8 USB 2.0 ports, two PCIe x8 Gen3 ports, two PCIe x4 Gen3 ports and one PCIe x2 Gen3 port. In addition a 128GB SSD via an opt. adapter board (DB-P620) is available.

The board supports Microsoft Windows 10 and Linux.

ORDER NOW

Technical Description

proimg1
  • 3U/4HP CompactPCI Serial CPU board, PICMG CPCI-S,0 CompactPCI Serial R2.0
  • Six core 2.8 (4.7) GHz Intel Xeon E-2276ML CPU
    Six core 1.9 (4.1) GHz Intel Core i7-9850HL CPU,
    Six core 2.7 (4.4) GHz Intel Core i7-9850HE CPU
  • Intel CM246 chipset
  • Up to 32 GB DDR4-2666 ECC SDRAM
  • 2 dual mode DisplayPorts (DVI, VGA and HDMI) in the front panel
  • Opt. onboard 128GB SSD via adapter board (DB-P620)
  • 7 SATA ports via rear I/IO
  • Up to 4 Gigabit Ethernet ports, 2 GbE front panel ports and opt. 2 ports via adapter board (DB-P620), Intel I219-LM, Intel I210-AT
  • 10 USB ports, two USB 3.0 front panel ports or via rear I/O and 8 USB 2.0 ports via rear I/IO
  • 1 PCIe x8 Gen3 port via P1 and P2, 1 PCIe x8 Gen3 port via P2, two PCIe x4 Gen3 ports via P6 and one PCIe x2 Gen3 port via P4
  • AMI UEFI BIOS with dual 128 Mbit SPI Flash
  • HW monitor and watchdog timer
  • 0°C .. +60°C operating temperature range
  • 2 years warranty

Order Information

cPCI-A3525-111

3U/4HP CPCI Core i7-4700 CPU board, 8 GB RAM, 32GB SSD

cPCI-A3525-221

3U/4HP CPCI Core i7-5700 CPU board, 16 GB RAM, 32GB SSD

cPCI-A3525BL-110

3U/8HP CPCI Core i7-4700 CPU board, 8 GB RAM, RS-232, 2 USB 2.0, VGA, mSATA socket, SATA port

cPCI-A3525B-220

3U/8HP CPCI Core i7-5700 CPU board, 16 GB RAM, RS-232, 2 USB 2.0, VGA, mSATA socket, SATA port

cPCI-A3525D-110

3U/8HP CPCI Core i7-4700 CPU board, 8 GB RAM, RS-232, 2 USB 2.0, Line-in, Line-out, mSATA socket, SATA port

cPCI-A3525D-220

3U/8HP CPCI Core i7-5700 CPU board, 16 GB RAM, RS-232, 2 USB 2.0, Line-in, Line-out, mSATA socket, SATA port

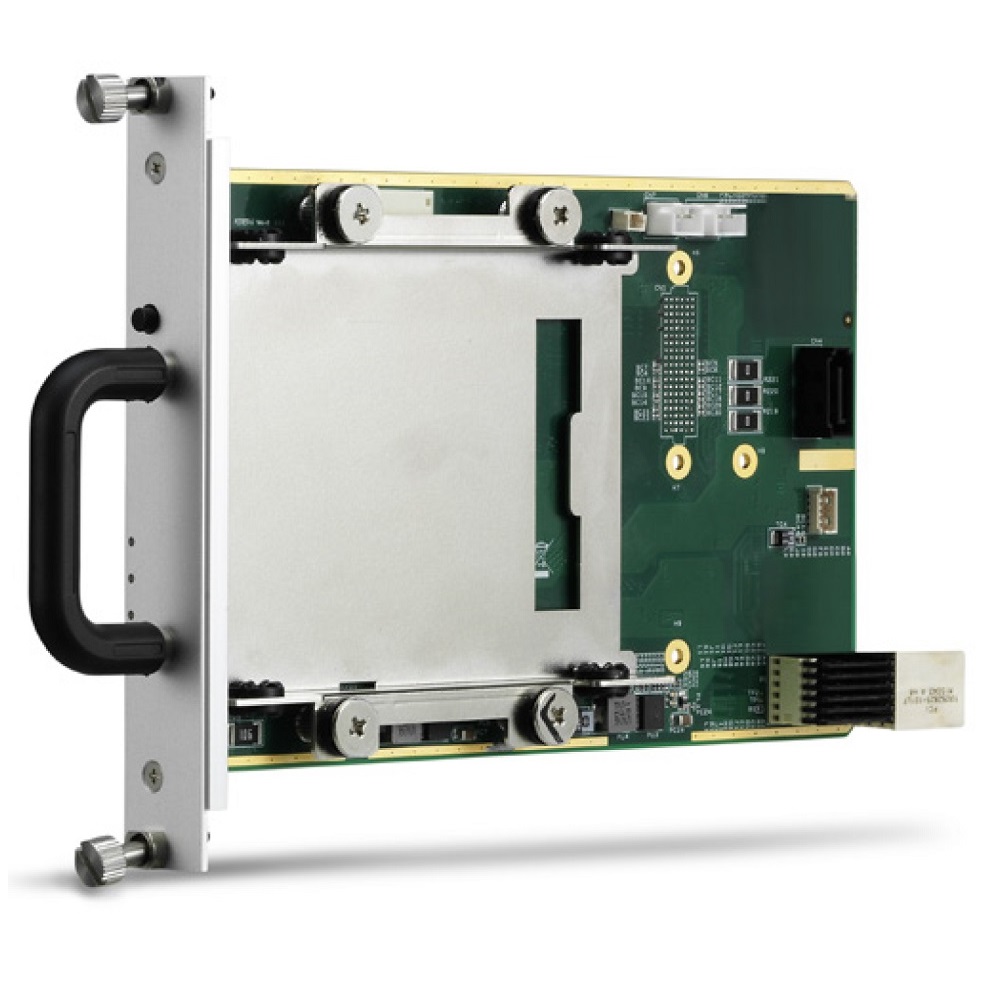

cPCI-A3H10

3U cPCI Serial 2.5" SATA storage carrier, hot-swap, anti-shock and anti-vibration kit

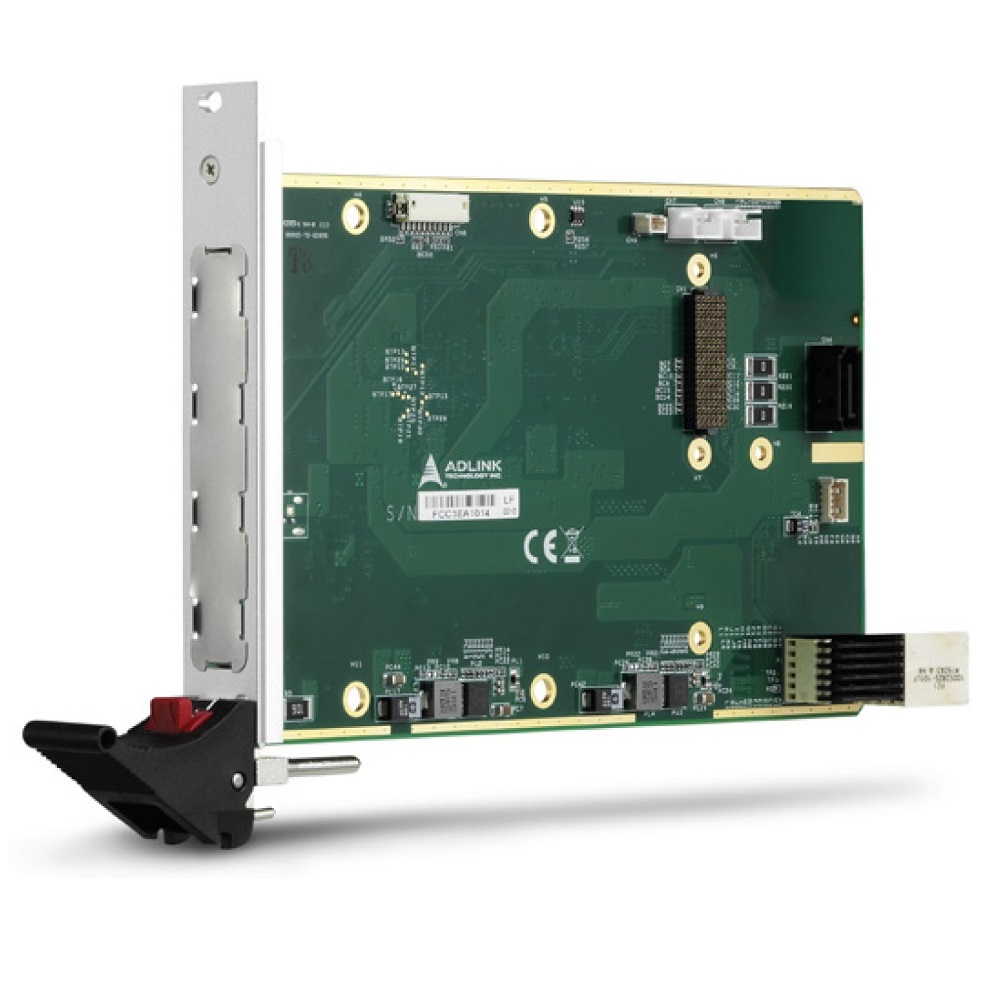

cPCI-A3X10

3U cPCI Serial XMC carrier

DP-DVI cable

DisplayPort to DVI cable

DP-VGA cable

DisplayPort to VGA cable

DP-HDMI cable

DisplayPort to HDMI cable

Technical Documentation

cPCI-A3525 Data Sheet
