1U Rugged Workstation with Xeon or Core i Gen 10/11 CPU, 128GB RAM and Front or Rear Power Supply

1U Rugged Workstation Xeon® W-1300 or Core i9/i7/i5/i3 Gen. 11/10 and 128GB RAM. The GAP series of rugged servers and workstations are designed for applications that require rugged and qualified MIL-GRADE equipment with up to 20G/11ms shock (MIL-STD-810G Method 516.7). The GAP-145x-W8 are designed for 19" rack mounting and are suitable for operation in critical environments. The 1U workstations with a depth of 450mm feature Intel® Xeon® W-1300 processors or 10th/11th Generation Intel® Core™ i9/i7/i5/i3 processors supporting up to 8 Cores (16 thread with Hyper-Threading), 16MB smart cache and up to 128GB DDR4 memory with ECC memory support. Integrated IPMI services support monitoring, control and management funtions sending alarm notifications in case of critical events. GAP workstations are designed to meet MIL-STD-810 for temperature and shock and MIL-STD-167-1A for vibrations. Optionally, they can conform to MIL-STD-461 for EMI/EMC. The I/O connectors and power supply input can be provided with MIL-GRADE connectors. The workstations have one PCIe x16 slot and one M.2 PCIe 4.0 x4 2280/22110 NVMe slot with M-Key and two M.2 PCIe 3.0 x4 2280/22110 NVMe slots with M-Key.

The GAP-145F-W8 has front I/O and a rear AC power supply. DisplayPort, HDMI, VGA, DVI-D, GbE LAN, 2.5GHz GbE LAN, IPMI, 4x USB 3.2, USB-C and audio are available in the front. The workstation provides one 2.5" SATA/SAS SSD and two hot swap U.2 NVMe SSDs or three hot swap 2.5” SATA/SAS SSDs.

The GAP-145P-W8 has front I/O and a front redundant (or optional single) AC power supply. DisplayPort, HDMI, VGA, DVI-D, GbE LAN, 2.5GHz GbE LAN, IPMI, 4x USB 3.2, USB-C and audio are available in the front. The workstation provides one 2.5" SATA/SAS SSD.

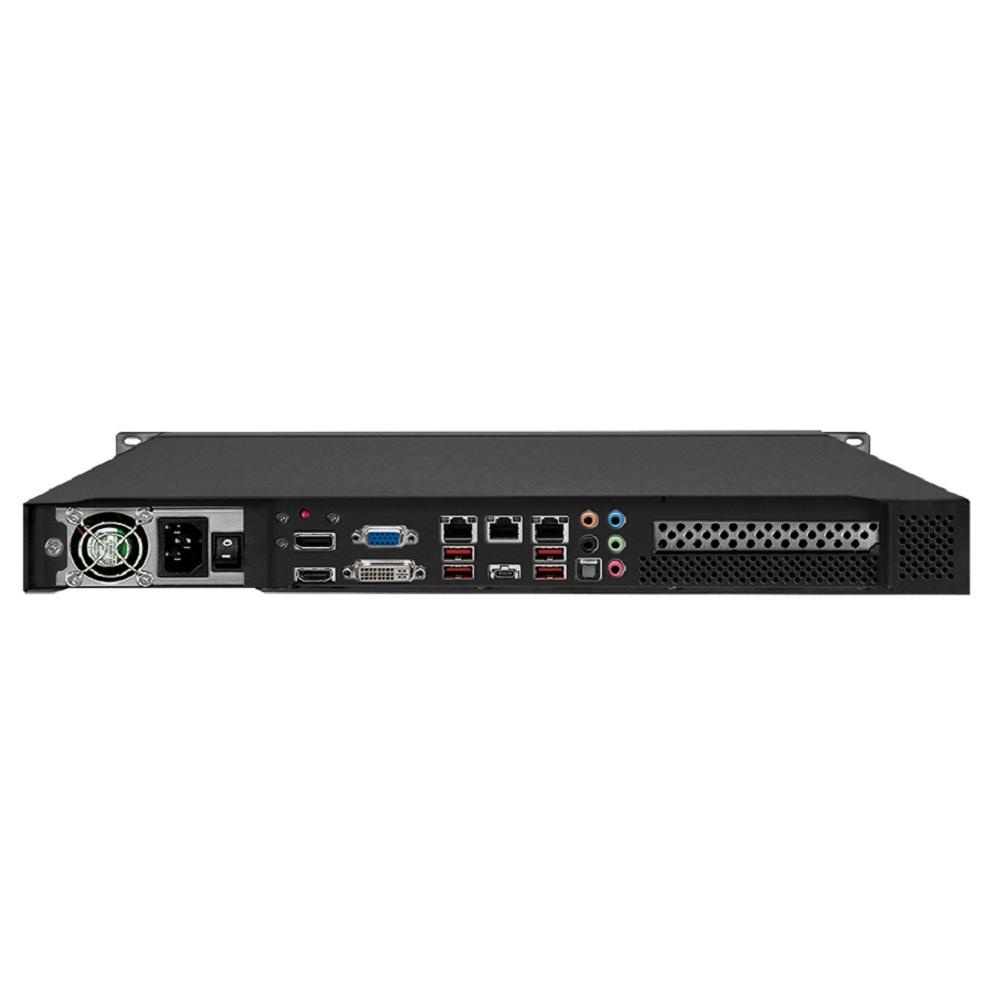

The GAP-145R-W8 has rear I/O and a rear (optional redundant) AC power supply. DisplayPort, HDMI, VGA, DVI-D, GbE LAN, 2.5GHz GbE LAN, IPMI, 4x USB 3.2, USB-C and audio are available in the rear. The workstation provides up to six hot swap U.2 NVMe SSDs or nine hot swap 2.5” SATA/SAS SSDs.

ORDER NOW

Technical Description

proimg1
  • 1U rugged workstation, 450mm depth
  • Intel® Xeon® W-1300 or Core i9/i7/i5/i3 Gen. 11/10 processors
  • Up to 128GB DDR4-3200 MHz RAM, 4 DIMM slots
  • Intel W580 chipset
  • ASPEED AST2500 BMC graphics
  • PCIe x16 slot
  • M.2 PCIe 4.0 x4 2280/22110 NVMe with M-Key and 2x M.2 PCIe 3.0 x4 2280/22110 NVMe with M-Key
  • GAP-145F: One 2.5″ SATA/SAS SSD and 2x hot-swap U.2 NVMe SSDs or 3x hot-swap 2.5″ SATA/SAS SSDs
    GAP-145P: One 2.5″ SATA/SAS SSD
    GAP-145R: Up to 6x hot-swap U.2 NVMe SSD or 9x hot-swap 2.5″ SATA/SAS SSDs
  • DisplayPort, HDMI, VGA, DVI-D, GbE LAN, 2.5GHz GbE LAN, IPMI, 4x USB 3.2, USB-C and audio in the front of the GAP-145F and GAP-145P version, in the rear of the GAP-145R version
  • GAP-145F: Rear AC power supply
    GAP-145P: Front redundant AC power supply, optional single
    GAP-145R: Rear AC power supply, optional redundant
  • 0°C .. 50°C operating temperature range, MIL-STD-810H, method 501.7 & 502.7,
    optional -20°C .. +60°C operating temperature range
  • 20G/11ms shock MIL-STD-810G method 516.7, optional EMC MIL-STD-461 and conformal coating
  • 2 years warranty

Order Information

GAP-145F-W8-100

1U Rugged WS, front I/O, rear power supply, 3x hot-swap SSD

GAP-145P-W8-100R

1U Rugged WS, front I/O, front power supply redundant, SSD

GAP-145P-W8-100

1U Rugged WS, front I/O, front power supply, SSD

GAP-145R-W8-100R

1U Rugged WS, rear I/O, rear power supply redundant, 9x hot-swap SSD

GAP-145R-W8-100

1U Rugged WS, rear I/O, rear power supply, 9x hot-swap SSD

Technical Documentation

GAP-145F-W8-DS

GAP-145F-W8 data sheet

GAP-145P-W8-DS

GAP-145P-W8 data sheet

GAP-145R-W8-DS

GAP-145R-W8 data sheet
