1U Rugged Server with Xeon CPU, up to 2TB RAM and Front or Rear Power Supply

1U rugged server with an Intel® Xeon® Gen. 5 or an Intel® Xeon® Gen. 4 Scalable and up to 2TB RAM. The GAP series of rugged servers and workstations are designed for applications that require rugged and qualified MIL-GRADE equipment with up to 20G/11ms shock (MIL-STD-810G Method 516.7). The GAP-1xxx-S8-SOLO are designed for 19" rack mounting and are suitable for operation in critical environments. The 1U servers feature a scalable 4th or 5th generation single-socket Intel® Xeon® processor that provide integrated AI acceleration and advanced security features, as well as up to 2TB of DDR5-4800 RAM. Integrated IPMI services support monitoring, control and management functions sending alarm notifications in case of critical events. GAP servers are designed to meet MIL-STD-810F for temperature and shock and MIL-STD-167-1A for vibrations. Optionally, they can conform to MIL-STD-461 for EMI/EMC. The I/O connectors and the power supply input can be provided with MIL-GRADE connectors. All version have one M.2 NVMe slot, two Disk on Module slots, two PCIe 5.0 x16 Full-Height Full-Length slots and one PCIe 5.0 x16 Low Profile slot as well as a dedicated IPMI LAN port and two 10GbE ports with RJ45 connectors.

The GAP-145F-S8-SOLO has a depth of 450 mm. The front I/O and rear power supply layout includes three removable 2.5" SATA SSDs or two U.2 NVMe SSDs or one removable 2.5" SAS SSD. The server provides 2x 10GbE, VGA, 2x USB 3.0, 2x USB 2.0, IPMI and COM in the front panel.

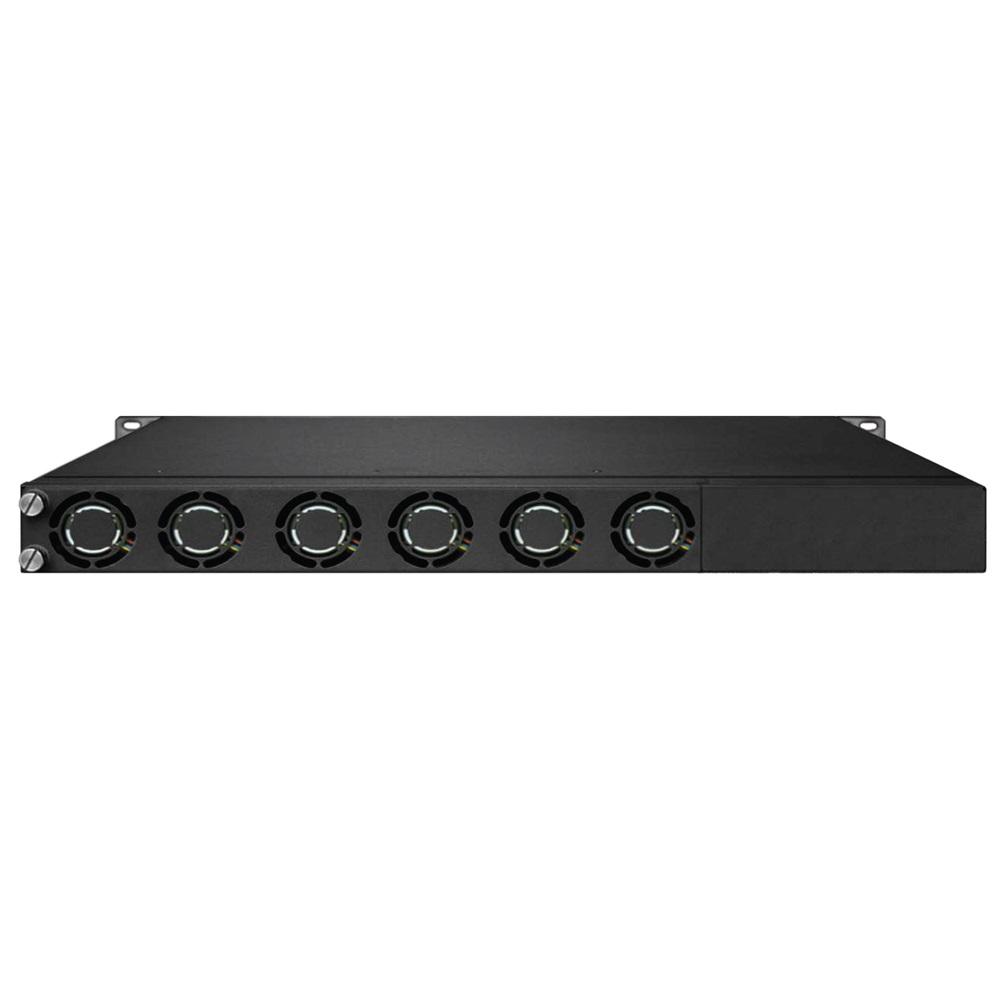

The GAP-145P-S8-SOLO has a depth of 450 mm. The front I/O and front power supply layout includes up to two 2.5" U.2/SATA/SAS SSDs. The server provides 2x 10GbE, VGA, 2x USB 3.0, 2x USB 2.0, IPMI and COM in the front panel.

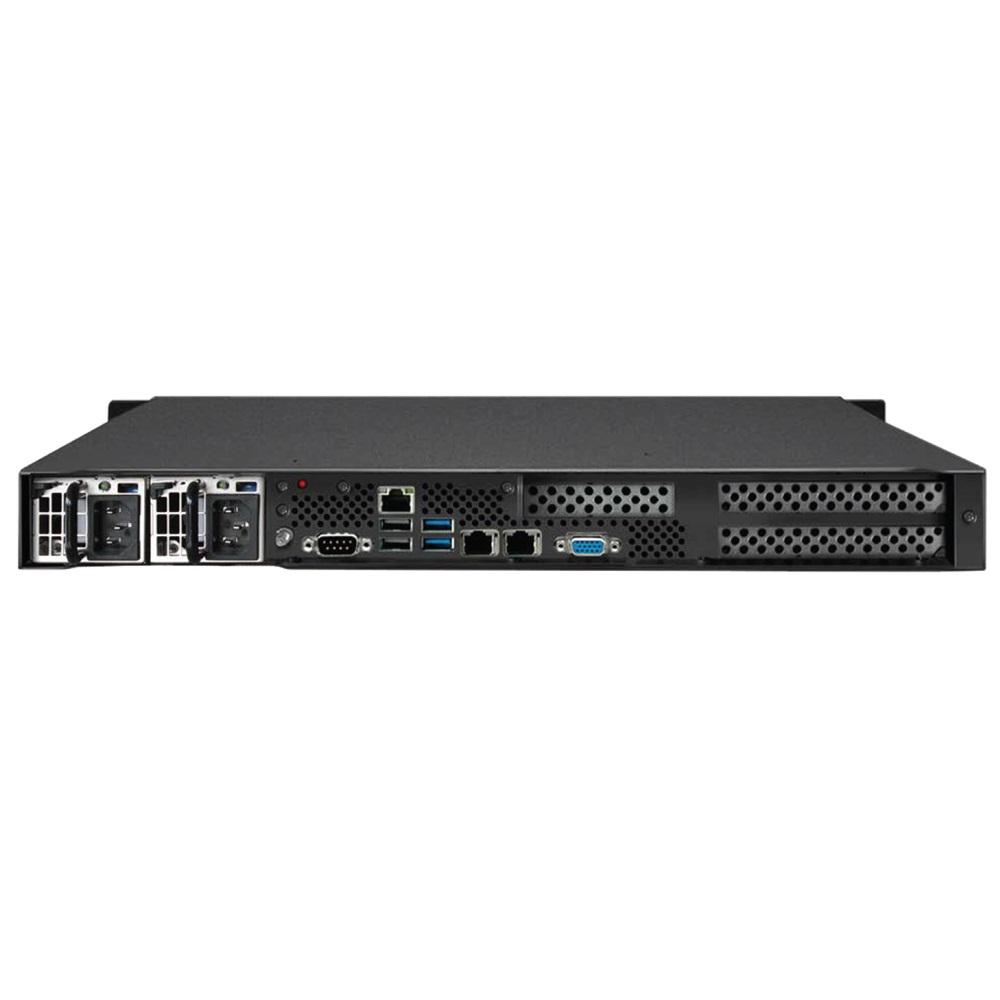

The GAP-151R-S8-SOLO has a depth of 510 mm. The rear I/O and rear power supply layout includes up to 9 removable 2.5" SATA SSDs or up to 6 U.2 NVMe SSDs or up to 3 removable 2.5" SAS SSDs. The server provides 2x 10GbE, VGA, 2x USB 3.0, 2x USB 2.0, IPMI and COM in the rear.

ORDER NOW

Technical Description

proimg1
  • 1U rugged server, 450mm or 510mm depth
  • One Intel® Xeon® 5th Gen or Intel® Xeon® 4th Gen scalable processors
  • Up to 2TB ECC DDR5-4800 MHz RAM, 8 DIMM slots
  • Intel C741 chipset
  • ASPEED AST2600 BMC graphics
  • Two 10GbE ports with RJ45 connector
  • IPMI LAN port
  • 2 PCIe 5.0 x16 full height full length slots
  • PCIe 5.0 x16 low profile slot
  • 2 SATA Disk on Module
  • M.2 2280/22110 NVMe with M-Key
  • GAP-145F: One 2,5″ U.2 NVMe/SATA/SAS SSD, up to one 2,5″ SAS SSD or 2 hot-swap U.2 NVMe SSDs or 3 hot-swap 2.5” SATA SSDs
    GAP-145P: Up to two 2,5″ U.2 NVMe/SATA/SAS SSDs
    GAP-151R: Up to three 2,5″ SAS SSD or 6x hot-swap U.2 NVMe SSDs or 9 hot-swap 2.5” SATA SSDs
  • VGA, 2 USB 3.0, 2 USB 2.0, 2 10GbE, IPMI and COM in the front of the GAP-145F and GAP-145P version, in the rear of the GAP-151R version
  • GAP-145F: Rear AC or DC power supply
    GAP-145P: Front redundant AC or DC power supply
    GAP-151R: Rear redundant AC power supply
  • 0°C .. 50°C operating temperature range, MIL-STD-810H, method 501.7 & 502.7,
    optional -20°C .. +60°C operating temperature range
  • 20G/11ms shock MIL-STD-810G method 516.7, optional EMC MIL-STD-461G
  • 2 years warranty

Order Information

GAP-145F-S8-Solo-100

1U Rugged Server, front I/O, rear power supply, Xeon CPU, 450mm depth

GAP-145P-S8-Solo-100

1U Rugged Server, front I/O, front power supply redundant, Xeon CPU, 450mm depth

GAP-151R-S8-Solo-100

1U Rugged Server, rear I/O, rear power supply redundant, Xeon CPU, 510mm depth

Technical Documentation

GAP-145F-S8-Solo-DS

Server_GAP-145F-S8-Solo data sheet

GAP-145P-S8-Solo-DS

Server_GAP-145P-S8-Solo data sheet

GAP-151R-S8-Solo-DS

Server_GAP-151R-S8-Solo data sheet
