GAP-351x Rugged Workstation G7 Series

3U Rugged Workstation with Xeon or Core i Gen 9/8 CPU, up to 128GB RAM and Front or Rear Power Supply

3U Rugged Workstation with Xeon® E3-2200/2100 or Core i7/i5/i3 Gen. 9/8 and 128GB RAM. The GAP series of rugged servers and workstations are designed for applications that require rugged and qualified MIL-GRADE equipment with up to 20G/11ms shock (MIL-STD-810G Method 516.7). The GAP-351x-G7 are designed for 19" rack mounting and are suitable for operation in critical environments. The 3U workstations with a depth of 510mm feature Intel® Xeon® E-2200/2100 processors or 9th/8th Generation Intel® Core™ i7/i5/i3 processors supporting up to 8 Cores (16 thread with Hyper-Threading), 16MB smart cache and up to 128GB DDR4 memory with or without ECC memory support. Integrated IPMI services support monitoring, control and management funtions sending alarm notifications in case of critical events. GAP workstations are designed to meet MIL-STD-810 for temperature and shock and MIL-STD-167-1A for vibrations. Optionally, they can conform to MIL-STD-461 for EMI/EMC. The I/O connectors and power supply input can be provided with MIL-GRADE connectors. The workstations have two PCIe 3.0 x16 slots, one PCIe 3.0 x4 slot, one PCIe 3.0 x1 slot and one PCI slot. Optional DVD drive is available.

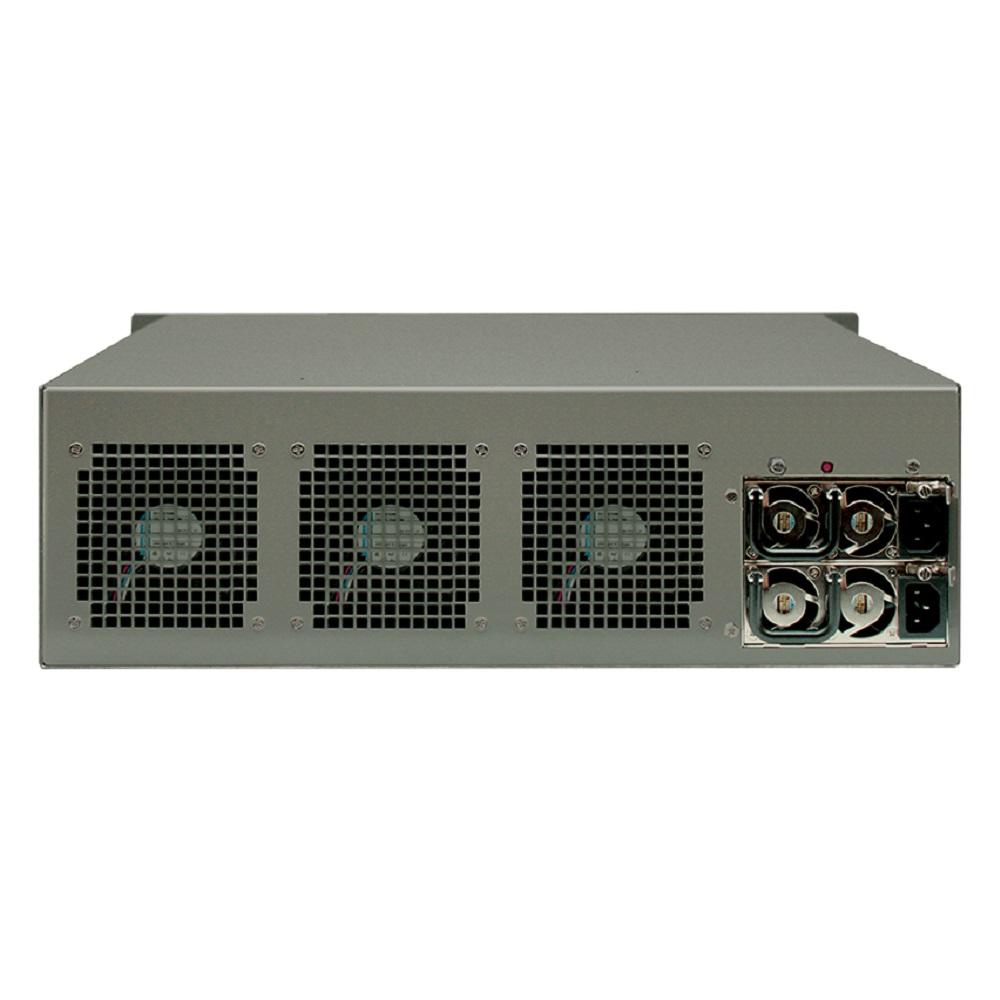

The GAP-351F-G7 has front I/O and a rear redundant AC power supply. VGA (IPMI), 4x USB 3.1, 2x GbE LAN, HDMI, DVI-D, DisplayPort and audio are available in the front. The workstation provides up to three hot swap 2.5" SSDs and three 2.5” SSDs. RAID 0, 1, 5 and 10 are supported.

The GAP-351P-G7 has front I/O and a front redundant AC power supply. VGA (IPMI), 4x USB 3.1, 2x GbE LAN, HDMI, DVI-D, DisplayPort and audio are available in the front. The workstation provides up to three hot swap 2.5" SSDs and three 2.5” SSDs. RAID 0, 1, 5 and 10 are supported.

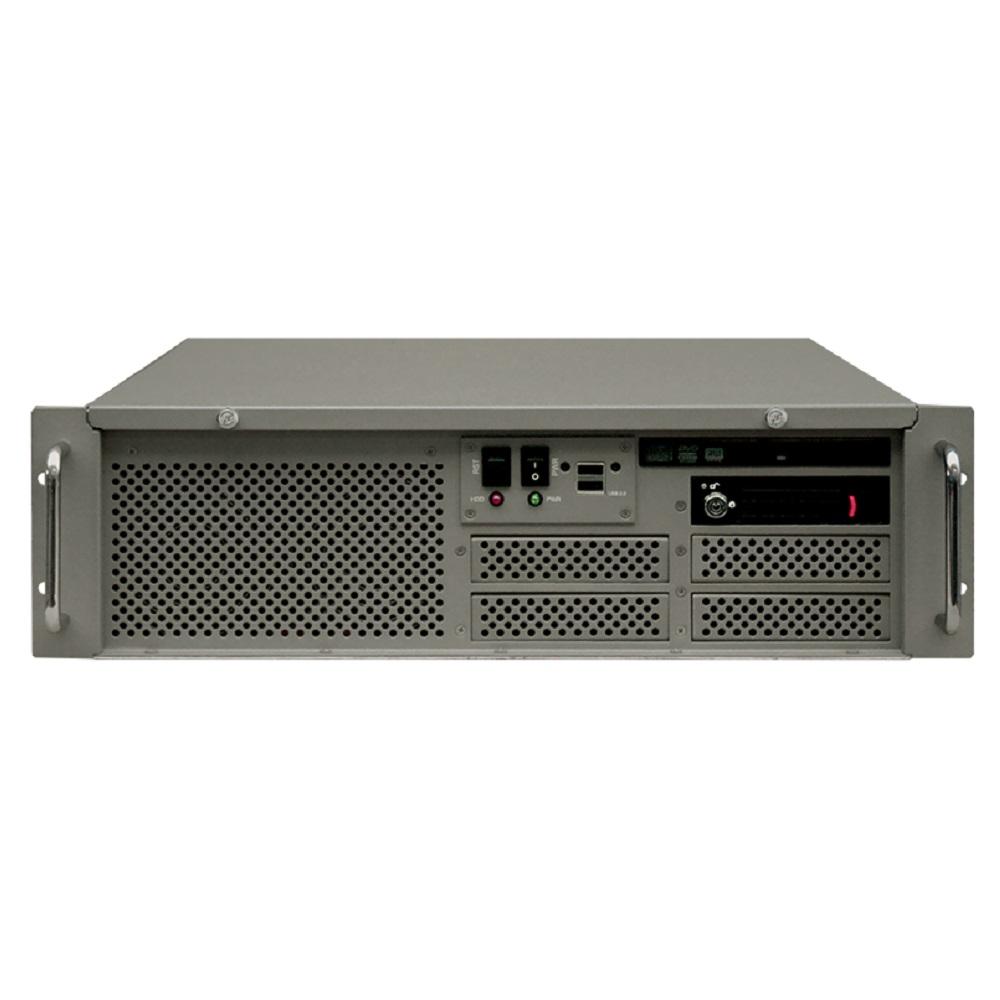

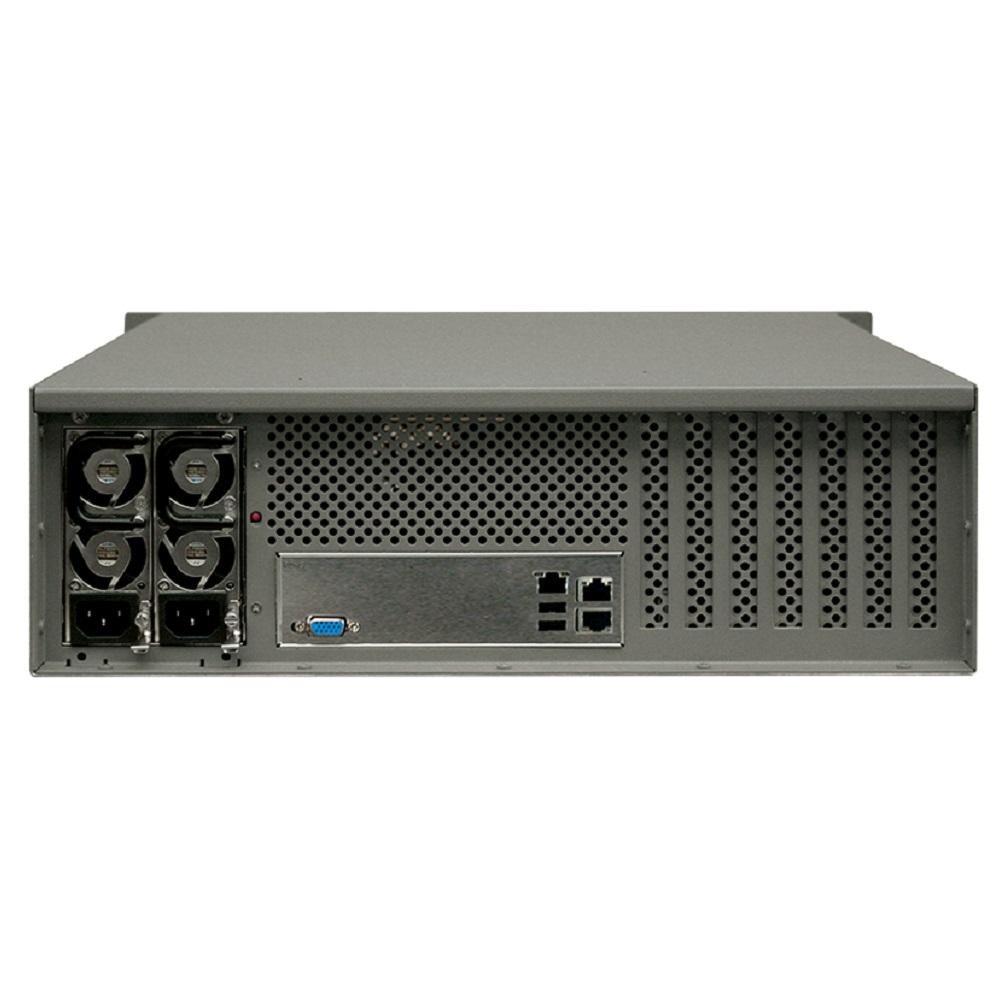

The GAP-351R-G7 has rear I/O and a rear redundant AC power supply. VGA (IPMI), 4x USB 3.1, 2x GbE LAN, HDMI, DVI-D, DisplayPort and audio are available in the rear. In addition the workstation provides two USB 2.0 ports in the front, up to 15 hot swap 2.5" SSDs and three 2.5” SSDs. RAID 0, 1, 5 and 10 are supported.

ORDER NOW

Technical Description

proimg1
  • 3U rugged workstation, 510mm depth
  • Intel® Xeon® E3-2200/2100 or Core i7/i5/i3 Gen. 9/8 processors
  • Up to 128GB DDR4-2666 MHz RAM
  • Intel C246 chipset
  • 2x PCIe 3.0 x16 slots, PCIe 3.0 x4 slot, PCIe 3.0 x1 slot and one PCI slot
  • GAP-351F and GAP-351P: Up to 3x hot-swap 2.5″ SSDs and 3x 2.5″ SSDs, RAID 0, 1, 5 and 10
    GAP-351R: Up to 15x hot-swap 2.5″ SSDs and 3x 2.5″ SSDs, RAID 0, 1, 5 and 10
  • 2x USB 2.0 in the front of the GAP-351R version
  • VGA (IPMI), 4x USB 3.1, 2x GbE LAN, HDMI, DVI-D, DisplayPort and audio in the front of the GAP-145F and GAP-145P version, in the rear of the GAP-151R version
  • Optional DVD drive
  • GAP-351F and GAP-351R: Rear redundant AC power supply
    GAP-351P: Front redundant AC power supply
  • 0°C .. 50°C operating temperature range, MIL-STD-810H, method 501.7 & 502.7,
    optional -20°C .. +60°C operating temperature range
  • 20G/11ms shock MIL-STD-810G method 516.7, optional EMC MIL-STD-461 and conformal coating
  • 2 years warranty

Order Information

GAP-351F-G7-100

3U Rugged WS, front I/O, rear power supply redundant, 3x hot-swap + 3x SSD

GAP-351P-G7-100

3U Rugged WS, front I/O, front power supply redundant, 3x hot-swap + 3x SSD

GAP-351R-G7-100

3U Rugged WS, rear I/O, rear power supply redundant, 15x hot-swap + 3x SSD

Technical Documentation

GAP-351F-G7 data sheet

GAP-351P-G7 data sheet

GAP-351R-G7 data sheet
