HPERC-KBL-MC Intel Xeon Military Computer with Coldplate Conduction
HPERC-KBL-MH Intel Xeon Military Computer with Headsink

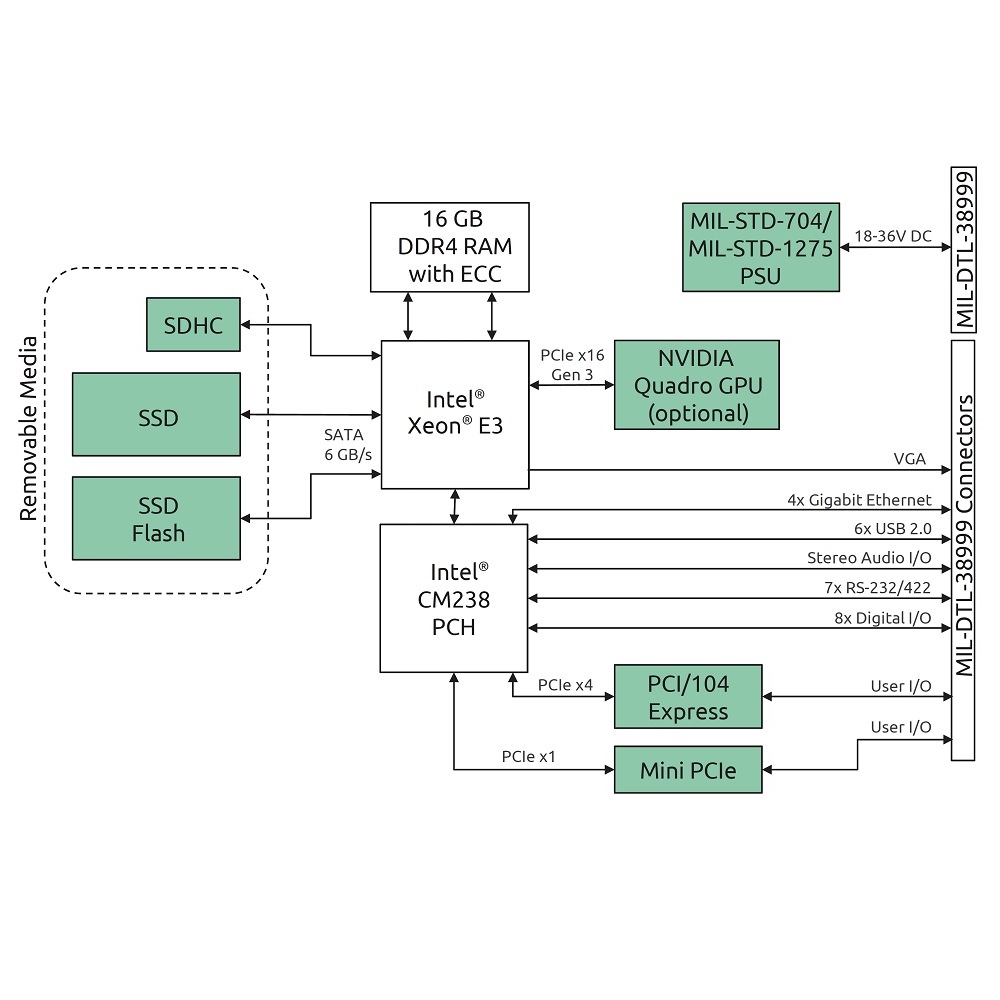

HPERC-KBL-Mx Block Diagram
HPERC-KBL-Mx Extreme Rugged Intel Xeon Military Computer
Extreme rugged military computer with Intel CM238 chip set and a Quad Core 3.0 GHz Intel Xeon E3-1505M v6. Up to 32 GB DDR4-2400 ECC RAM are available. The water proofed system is IP67 dust proofed. In addition the system is MIL-STD-810G shock and vibration compliant.
The HPERC-KBL-Mx from ADLINK Technology has four Gigabit Ethernet ports, two DVI ports, one VGA port, six USB 2.0 ports, seven RS-232/422 ports, 8 GPIO ports, audio in and out, one SDHC with up to 64 GB and two 2,5" SLC SSDs via SATA 6Gbit/s with RAID 0/1. Opt. Nvidias Quadro GT1030 GPGPU with 4GB GDDR5 is available via MXM PCIe x16 port.
The HPERC-KBL-Mx is specially designed for extreme rugged environments. It can be expanded with MXM (PCIe x16 Gen3), PCI/104 Express type 2 and Mini PCIe Mini card. The ports are routed to two front MIL-DTL-D38999 connectors.
The system provides software triggered secure erase and an Infineon TPM.
The system supports Windows 10 and RHEL 7.3.
- Military Industrial PC, VITA 75.21 or VITA 75.22 compliant
- Quad Core 3.0 GHz Intel Xeon E3-1505M v6
- Up to 32 GB DDR4 2400 MHz ECC RAM
- Intel CM238 Express chip set
- Opt. NVIDIA Quadro GT1030 with 4GB GDDR5 GPGPU via MXM PCIe x16 port
- Three simultaneous display outputs with two DVI and one VGA port
- 4 Gigabit Ethernet ports, Intel I210 controller
- Two 2,5″ SLC SSDs via SATA 6Gbit/s with RAID 0/1 and opt. secure erase
- One SDHC, up to 64GB
- 6 USB 2.0 ports
- 7 RS-232/422 ports
- 8 GPIO ports
- Audio in and out
- Infineon SLB 9665XT2.0 TPM
- IP67 water and dust proofed
- Shock- and vibration compliant to MIL-STD-810G
- MIL-DTL-D38999 connectors
- MXM (PCIe x16 Gen3) slot
- PCI/104 Express Typ 2 (PCIe Gen2) slot
- Mini PCIe Card (PCIe Gen2) slot
- AMI EFI BIOS
177.8 mm x 98.7 mm x 223.7 mm (w x h x d) MC version,
150.0 mm x 130.0 mm x 304.8 mm (w x h x d) MH version
- -40°C .. +75°C operating temperature range
- 2 years warranty
HPERC system, 3.0 GHz Xeon E3-1505M v6, 16GB RAM, Cold plate
HPERC system, 3.0 GHz Xeon E3-1505M v6, 16GB RAM, Finned-convection

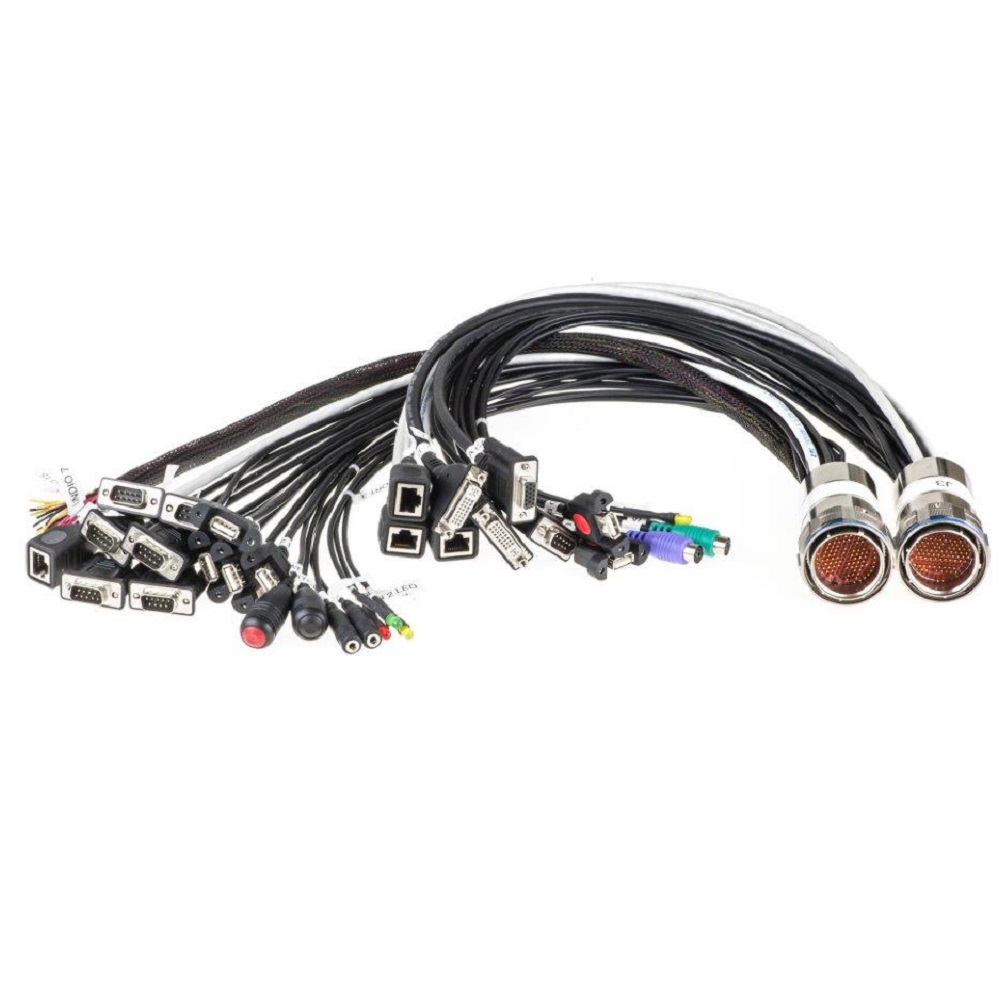

HPERC breakout cable kit incl. all I/O and AC adapter
MXM NVIDIA Quadro GPGPU with 4 GB GDDR5
