IC-ARM-VPX3b

3U VPX CPU Board with 16 Core ARM based QorIQ LX2080A/LX2160A Processor, 10Gigabit Ethernet Ports and 32GB RAM

3U VPX CPU board based on an up to 2.2 GHz QorIQ LX2160A processor with 16 ARM Cortex-A72 cores or an up to 2.2 GHz QorIQ LX2080A processor with 8 ARM Cortex-A72 cores and 32 GB DDR4 ECC SDRAM. 512 kB F-SRAM and 128 MB flash are available.

INTERFACE CONECPTs IC-ARM-VPX3b provides four 10Gigabit Ethernet ports and two Gigabit Ethernet ports. The data plane offers four additional 10Gigabit Ethernet ports or one PCIe x4 Gen3 port. On the expanison plane, three PCIe x4 ports via P1/P2 or one PCIe x8 port via P2 are available.

In addition the IC-ARM-VPX3b provides one USB 3.1 port, one USB 2.0 port, one RS-232 port, one RS-232/422 port, one CANbus interface, up to 4 GPIO ports and one PCIe x4 Gen 3 link. One M.2 slot and eMMC are available.

The IC-ARM-VPX3b comes with UBoot firmware in a secured flash and provides board support packages for LINUX and VxWorks. Other real time operating systems like PikeOS, LynxOS, Integrity,.. can be ported on request.

The board is available in six different environment classes from standard (0°C to 55°C), extended temperature (-20°C to +65°C), rugged (-40°C to +75°C), rugged (-40°C to +85°C), conduction-cooled (-40°C to +71°C) and conduction-cooled (-40°C to +85°C).

ORDER NOW

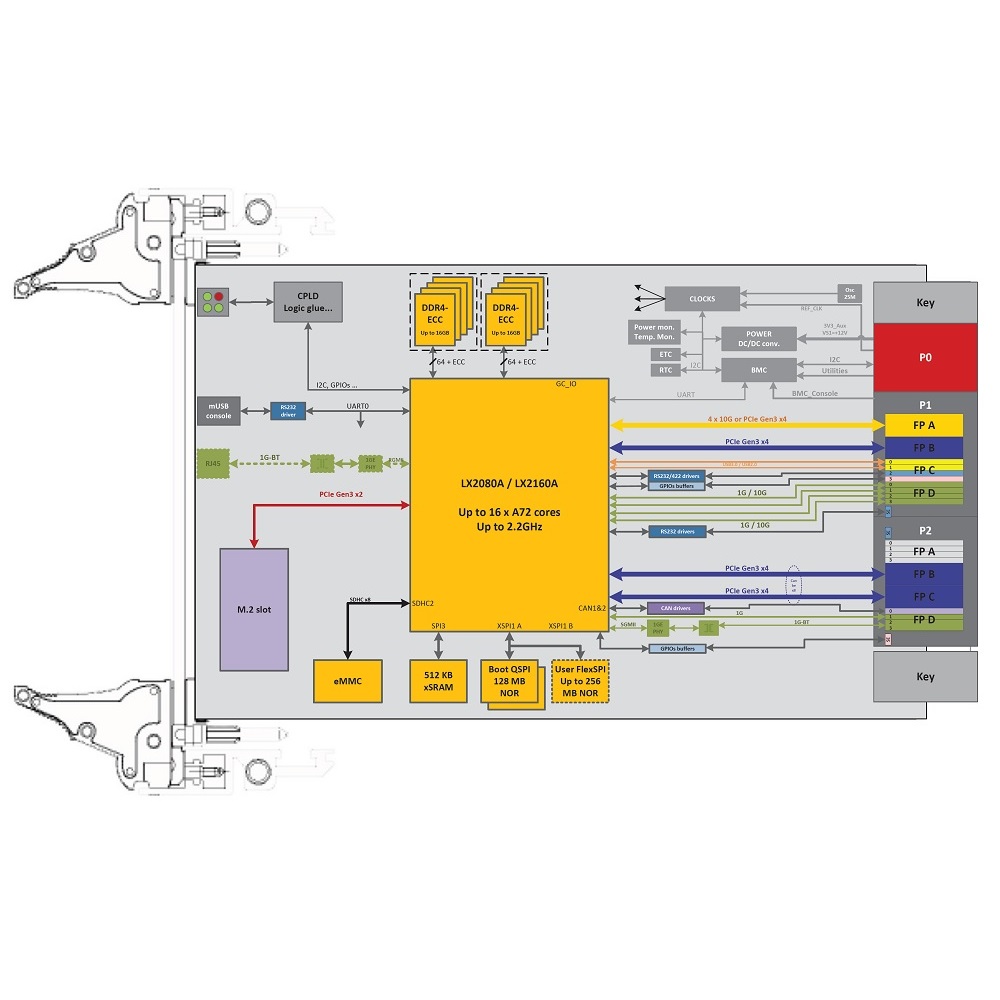

Technical Description

proimg1
  • 3U/4HP VPX CPU board, VITA 46.0, VITA 46.11 and VITA 65.0 OpenVPX compliant

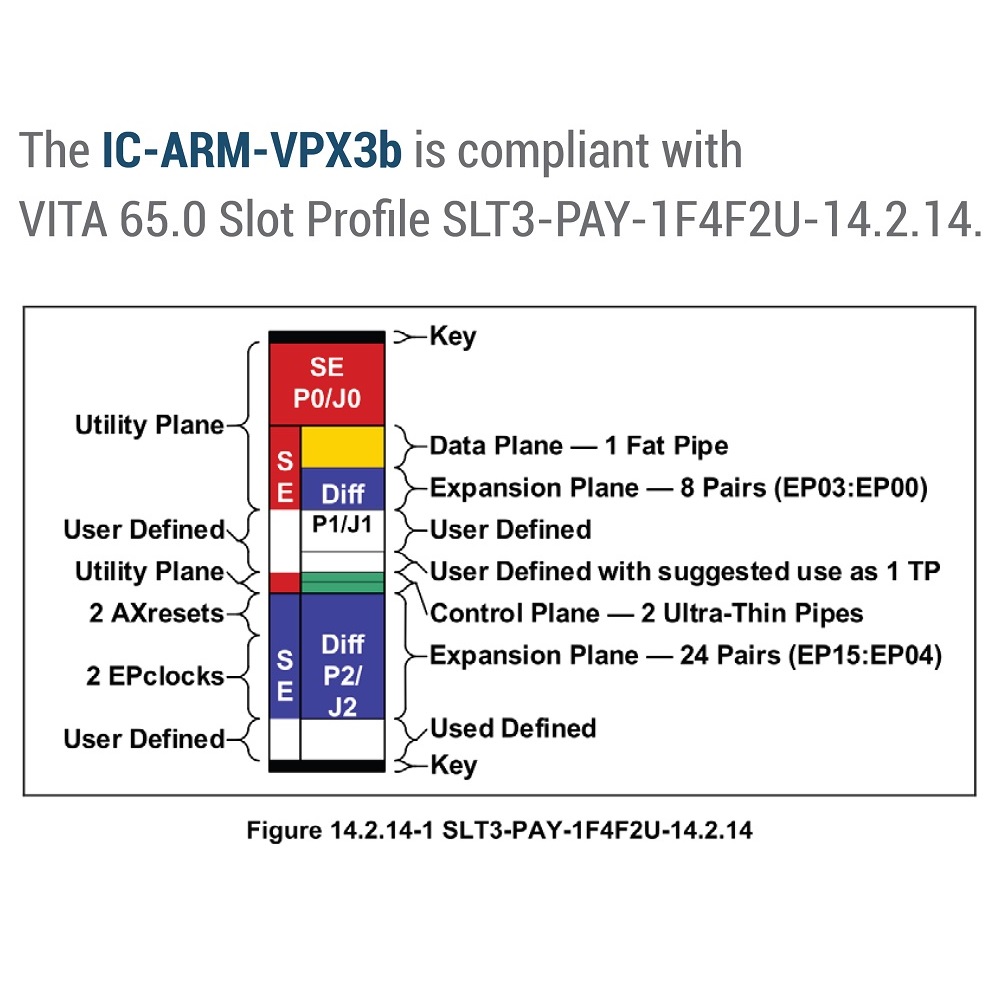

  • SLT3-PAY-1F4F2U-14.2.14 slot profile
  • Up to 2.2 GHz QorIQ LX2160A CPU with 16 ARM Cortex-A72 cores or
    up to 2.2 GHz QorIQ LX2080A CPU with 8 ARM Cortex-A72 cores
  • Up to 32 GB DDR4 ECC SDRAM
  • 512 kB F-SRAM
  • 128 MB Quad SPI NOR Flash
  • eMMC
  • Four 10Gigabit Ethernet 10GBase-KR ports or one PCIe x4 Gen3 port via P1 on the data plane
  • Three PCIe x4 Gen3 ports via P1/P2 or one PCIe x8 Gen3 port via P1 on the expansion plane
  • Four 10GBase-KR/KX ports via P1 on the control plane
  • Two USB ports via P1, one USB 3.1 and one USB 2.0 port
  • Two RS-232 ports via P1, one RS232 port and one RS232/422 port
  • One CANbus interface via P2
  • Up to 4 GPIO ports via P1/P2
  • One M.2 slot
  • Board management controller with PCI µ-controller for system management via VITA 46.11, real time clock with supercap backup, elapse time counter and DC and thermal monitoring
  • UBoot based firmware in secured flash
  • Available in 6 environmental classes: standard (0°C .. 55°C), extended grade (-20°C .. +65°C), rugged (-40°C .. +75°C), rugged (-40°C .. +85°C), conduction-cooled (-40°C .. +71°) and conduction-cooled (-40°C .. +85°)
  • 2 years warranty

Order Information

IC-ARM-VPX3b-110

3U/4HP CPU Board, LX2080A, 32 GB RAM, 0 .. +55°C

IC-ARM-VPX3b-121

3U/4HP CPU Board, LX2080A, 32 GB RAM, -20 .. +65°C

IC-ARM-VPX3b-222

3U/4HP CPU Board, LX2160A, 32 GB RAM, -40 .. +75°C, Rugged

IC-ARM-VPX3b-223

3U/4HP CPU Board, LX2160A, 32 GB RAM, -40 .. +85°C, Rugged

IC-ARM-VPX3b-224

3U/4HP CPU Board, LX2160A, 32 GB RAM, -40 .. +71°C, conduction-cooled

IC-ARM-VPX3b-225

3U/4HP CPU Board, LX2160A, 32 GB RAM, -40 .. +85°C, conduction-cooled

RTM132

3U VPX RTM with 1x QSFP+, 2 x SFP+, 1x RJ45

Technical Documentation

IC-ARM-VPX3b Data Sheet
