IC-FEP-VPX3a

IC-FEP-VPX3a 3U VPX Board with Xilinx Virtex-5 Processor and FMC Site

The 3U 4HP VPX board is equipped with an user configurable Xilinx Virtex-5 FPGA and an FMC slot. The Xilinx Virtex-5 SX95T FPGA of the INTERFACE CONCEPTs IC-FEP-VPX3 is configured by a serial flash and is programmable during process. The in-circuit debugging option is available via JTAG header for read back and real time debugging (ChipScope).

256 MB DDR2 SDRAM and opt. up to 8 MB QDR-II SRAM are available for pre-processing. I/O processing is handled on a separate VITA 57 FMC module that plugs into the FPGA base board. A variety of these external I/O cards offer an interface for your analogue and digital I/O signals.

The fabric links of the backplane allow data rates of 2,5 Gbps or 3,125 Gbps per lane depending on the typ of the interface (PCIe or Aurora-SRIO available thanks to specific IP). In addition two Ethernet 1000BASE-KX ports are available on the backplane.

ORDER NOW

Technical Description

proimg1

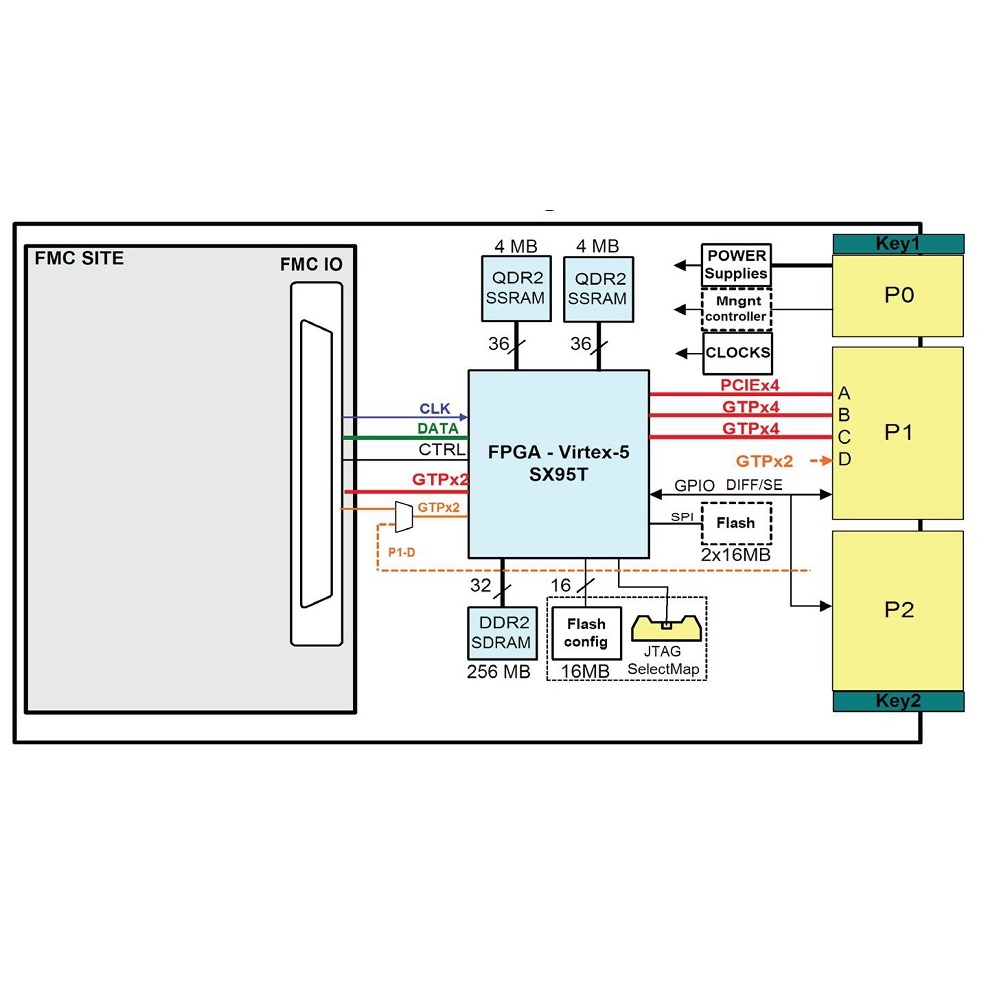

  • 3U/4HP VPX CPU board, VITA 46.0, VITA 57.1 conform
  • Xilinix Virtex-5 XC5VSX95T with 640 DSP slices, 14.720 Virtex-5 slices and 244 BlockRAM, opt. FX70T or FX100T Virtex-5 FPGA
  • One FMC site, VITA 57.1
  • 256 MB DDR2 RAM
  • Opt. 2 QDR2 banks with up to 8MB RAM
  • 16MB flash
  • 32MB SPI flash
  • 2,5 Gb/s or 3.125 Gb/s data rate per lane, depending on the type of the interface (PCIe or SRIO)
  • Opt. PIC µ-controller for system management
  • 24 GPIOs on P2, 8 single-ended IOs and 16 Differential pairs
  • One RS-232 port via P1
  • 2 GTP x1 links usable as 2 1000BASE-KX ports
  • One PCIe x4 port
  • Two GTP x4 ports
  • In 3 environmental classes available: standard (0°C .. 55°C), extended (-20°C .. +65°C), and conduction-cooled (-40°C .. +75°C)
  • 2 years warranty

Order Information

IC-FEP-VPX3a-001

3U/4HP VPX board, Virtex-5 XC5VSX95T, FMC site, VITA 57.1

IC-FEP-VPX3a-010

3U/4HP VPX board, Virtex-5 FX70T, FMC site, VITA 57.1

IC-FEP-VPX3a-020

3U/4HP VPX board, Virtex-5 FX100T, FMC site, VITA 57.1

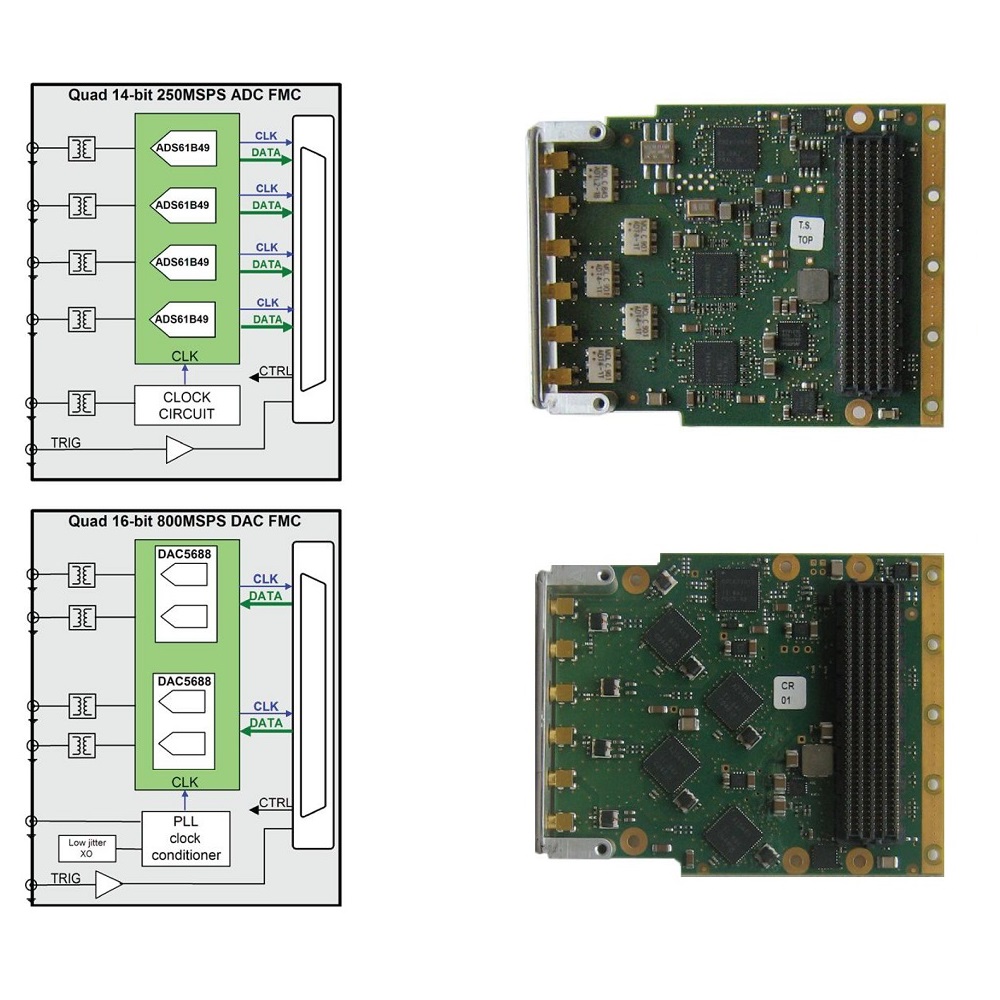

IC-DAC-FMCa

Quad 16bit 800 Ms/s DAC

IC-ADC-FMCa

Quad 16bit 135/200 Ms/s ADC

IC-ADC-FMCb

Quad 14bit 250 Ms/s ADC

Technical Documentation

IC-FEP-VPX3a Data Sheet
