IC-PPC-VPX3d

IC-PPC-VPX3d 3U VPX CPU Board with QorIQ T2080 Processor, 10Gigabit Ethernet and 8 GB RAM

3U VPX CPU board based on the QorIQ T2080 with up to 1.8 GHz, four e6500 cores, nvSRAM and NOR flash. Up to 8 GB DDR3 ECC SDRAM are available.

INTERFACE CONECPTs IC-PPC-VPX3d offers one 10GBase-T port, two 10GBase-KR ports or two Gigabit Ethernet GBase-KX ports. Opt. is one 10GBase-T SFP+ front panel and one XMC slot available.

In addition the IC-PPC-VPX3d provides two USB 2.0 ports, one RS-232 console port, two RS-232/422 ports, two SATA ports, 6 GPIO ports, one PCIe x4 Gen2/3 port and two PCIe x4 Gen 2 ports, each configurable as 4 PCIe x1 ports.

The IC-ARM-VPX3a comes with UBoot firmware in a secured flash and provides board support packages for LSP for LINUX and VxWorks. Other real time operating systems like PikeOS, LynxOS, Integrity,.. can be ported on request.

The board is available in five different environment classes from standard (0°C to 55°C), extended temperature (-20°C to +65°C), rugged (-40°C to +75°C), conduction-cooled (-40°C to +71°C) and conduction-cooled (-40°C to +85°C).

ORDER NOW

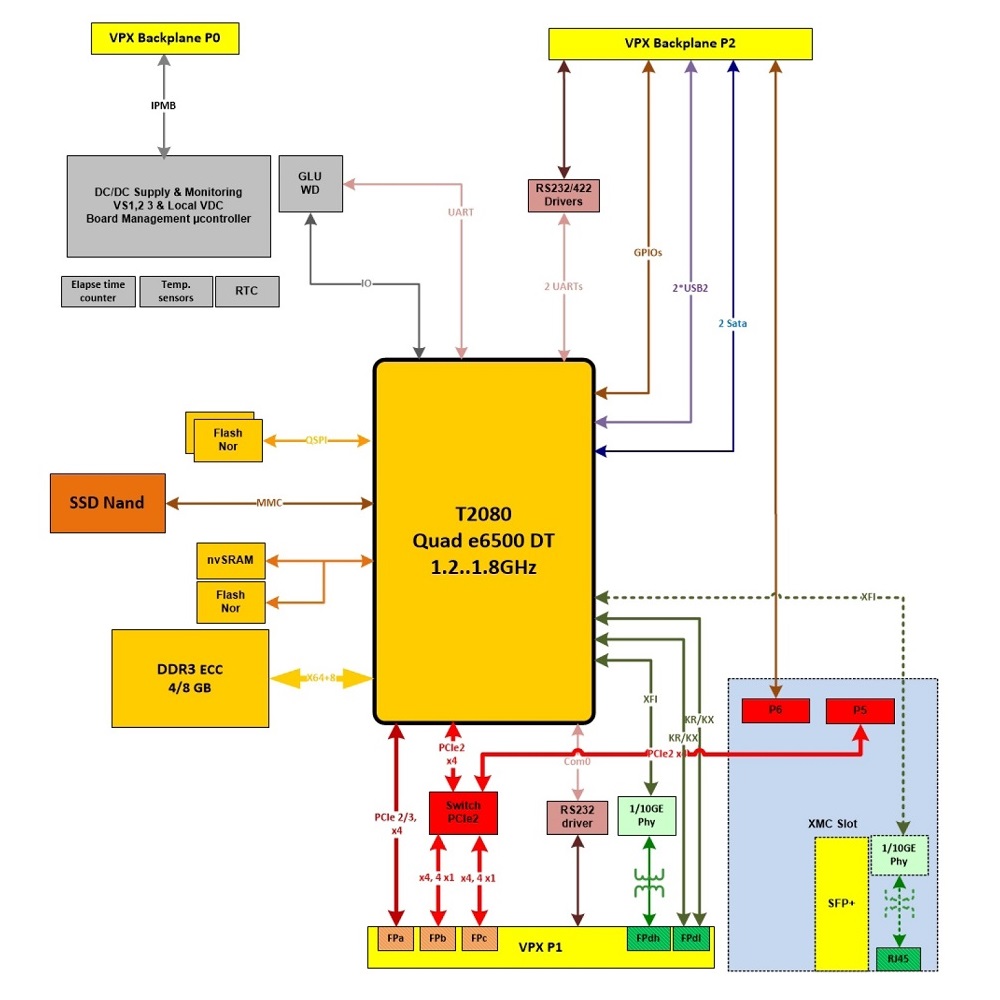

Technical Description

proimg1
  • 3U/4HP VPX CPU board, VITA 46.0, VITA 46.9, VITA 46.11, VITA 47, VITA 65
  • SLT3-PAY-3F2U-14.2.13,
    SLT3-PAY-1F4U-14.2.8 profile
  • Up to 1.8 GHz QorIQ T2080 CPU with quad e6500 cores
  • Up to 8 GB DDR3 ECC RAM
  • nvSRAM
  • NOR flash
  • Up to four 10Gigabit Ethernet ports, up to two 10GBase-KR ports via P1d, one 10GBase-T port via P1d and opt. one 10GBase-T SFP+ front panel port
  • Up to two Gigabit Ethernet GBase-KX ports via P1d
  • Opt. XMC slot
  • Two USB 2.0 ports via P2
  • One RS-232 console port via P1
  • Two RS-232/422 ports via P2
  • Two SATA ports via P2
  • 6 GPIO ports via P2
  • Up to three PCIe x4 links, one PCIe x4 Gen2/3 port via P1a and two PCIe x4 Gen2 ports via P1b/P1c
  • Up to 8 PCIe x1 Gen2 ports
  • Board management controller with PCI µ-controller for system management via VITA 46.11, real time clock with supercap backup, elapse timer counter and DC and thermal monitoring
  • UBoot based firmware in secured flash
  • In 5 environmental classes available: standard (0°C .. 55°C), extended grade (-20°C .. +65°C), rugged (-40°C .. +75°C), conduction-cooled (-40°C .. +71°) and conduction-cooled (-40°C .. +85°)
  • 2 years warranty

Order Information

IC-PPC-VPX3d-110

3U/4HP CPU board, P5010, 2 GB RAM, 0 .. +55°C

IC-PPC-VPX3d-111

3U/4HP CPU board, P5010, 2 GB RAM, -20 .. +65°C

IC-PPC-VPX3d-112

3U/4HP CPU board, P5010, 2 GB RAM, -40 .. +75°C, rugged

IC-PPC-VPX3d-113

3U/4HP CPU board, P5010, 2 GB RAM, -40 .. +75°C, conduction-cooled

IC-PPC-VPX3d-210

3U/4HP CPU board, P5020, 2 GB RAM, 0 .. +55°C

IC-PPC-VPX3d-211

3U/4HP CPU board, P5020, 2 GB RAM, -20 .. +65°C

IC-PPC-VPX3d-212

3U/4HP CPU board, P5020, 2 GB RAM, -40 .. +75°C, rugged

IC-PPC-VPX3d-213

3U/4HP CPU board, P5020, 2 GB RAM, -40 .. +75°C, conduction-cooled

Technical Documentation

IC-PPC-VPX3d Data Sheet
