MAG2A Series

Rugged Mission Computer provides MIL-DTL-38999 Avionic Interfaces

Rugged Mission Computer with MIL-DTL-38999 avionic interfaces and 3G-SDI graphics and video capture capabilities. Designed for critical environments applications, the rugged and high-performance IP65 compliant MAG series mission computers meet MIL-STD-810/MIL-STD-461 and RTCA/DO-160G specifications. The MAG series features a Quad Core Intel® Xeon® E3-1505M v6 processor with 16GB DDR4 and 64GB flash and offers 3x MIL-DTL-38999 circular connectors. The dedicated Nvidia Pascal Quadro P2000 video processor with 4GB of GDDR5 RAM and rich video I/O selection provides two 3G-SDI outputs, two 3G-SDI inputs, two independent VGA outputs and one DVI output. The graphic processor board can transfer video inputs into the system memory via PCI Express for manipulation and/or to be recorded into a local SATA SSD supporting Secure Erase hardware. 3x Gigabit Ethernet ports, 2x USB 2.0 ports, one USB 3.0 port, 4x serial COM (RS232/RS422/RS485) and up to 4 configurable digital I/Os are also available.

The MAG2A AVIO also offers dual channel dual redundant MIL-STD-1553B interfaces, 4x ARINC-429 TX channels and 8x ARINC-429 RX channels.

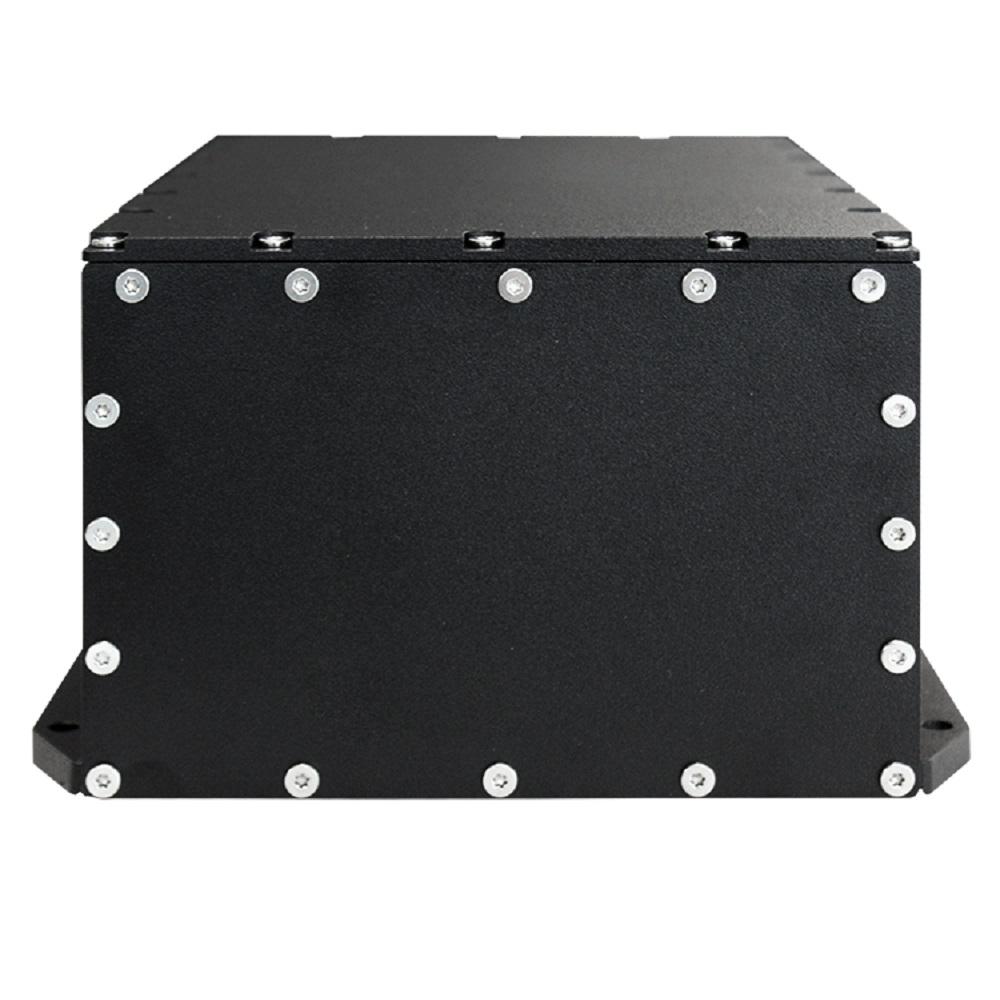

The MAG2A EVO is designed for GPGPU computing, AI processing, deep learning, and H.265/H.264 encoding and decoding applications. The Mission Computer also features an RGB sync-on-green input, two additional USB 2.0 ports, audio input and audio output.

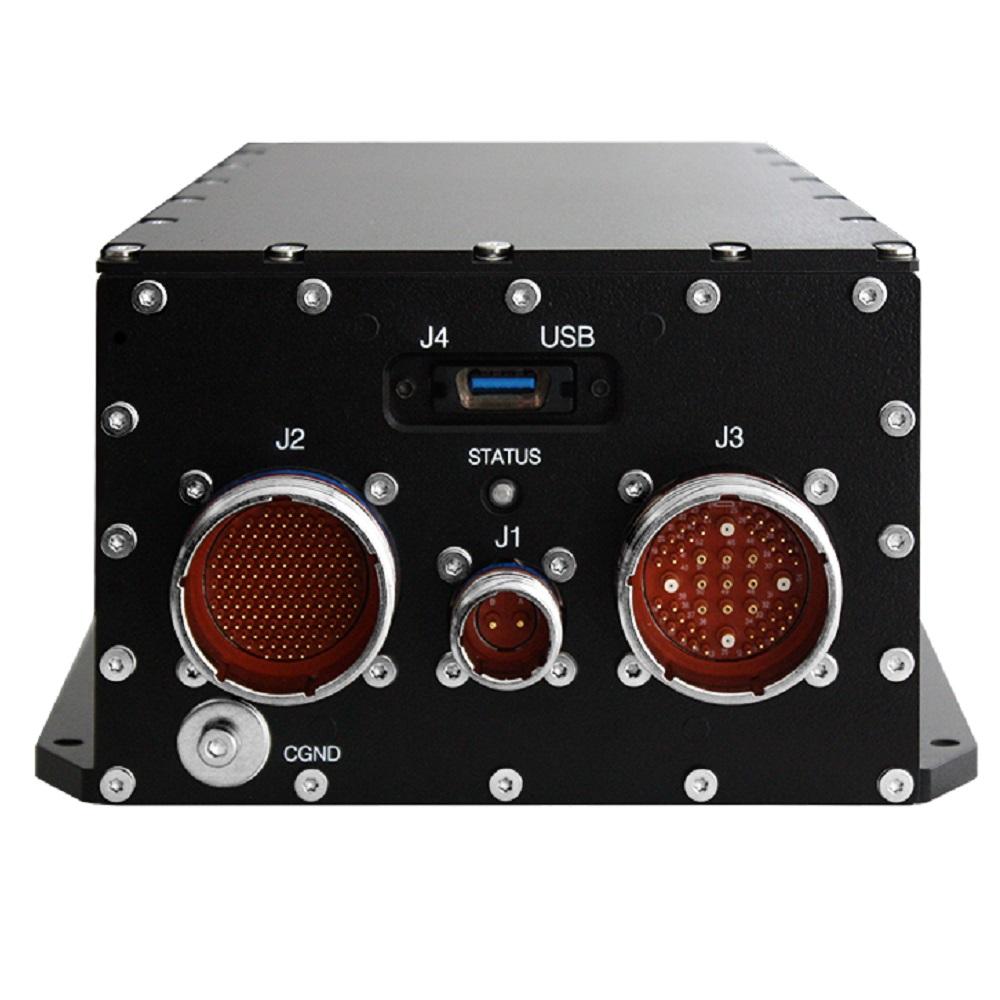

The MAG2A IO is designed for GPGPU computing, AI processing, deep learning, and H.265/H.264 encoding and decoding applications. The Mission Computer offers additional configurable I/O options, such as up to 4x isolated or non-isolated RS232, RS422, RS485, 2x CANbus (with ARINC 825 support), 8x analog video inputs, 2x Gigabit Ehernet ports, 2x MIL-STD-1553 interfaces and 8x ARINC429 RX + 4x ARINC-429 TX interfaces.
