MTCA.4 Starter Kits

MTCA.4 Starter Kits

Our MicroTCA / MTCA.4 starter kits consist of a chassis, MCH, CPU module with hard disk space and power module. All components are fully integrated and tested. The system is closed with AMC & RTM filler modules, including adapter and connection cable. All systems have a 2 year guarantee. Further configurations on request.

ORDER NOW

TECHNISCHE BESCHREIBUNG

proimg1

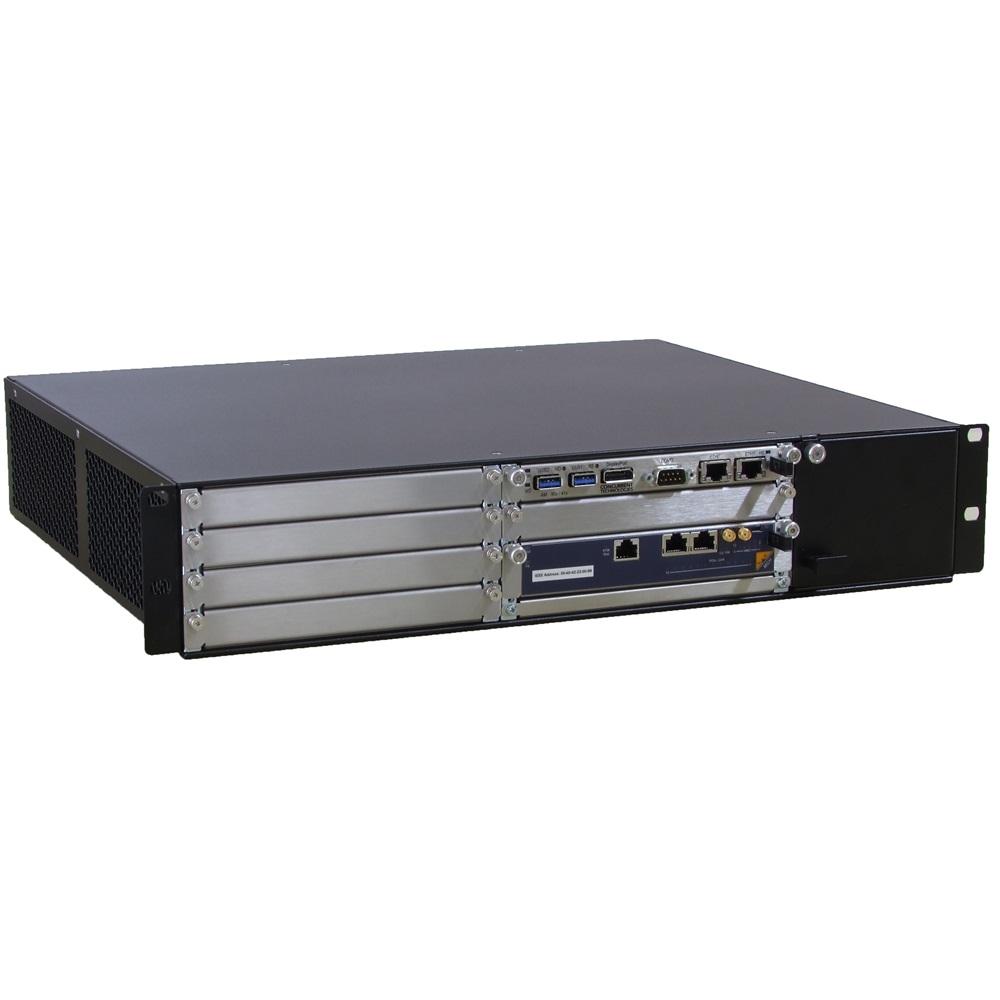

MTCA-6P-PH10x
2U 19″ 6-Slot Starter Kit, PCIe Gen 3

  • 2U 19” 6-Slot MTCA.4 crate, 6 double mid size AMC slots, 4 µRTM slots, MCH & PM slot, three different cooling concepts
  • NAT-MCH-PHYS48: MCH for 12 AMCs, 2 CUs and up to 4 PMs; GbE switch, clock generation and distribution; PCIe x4 to every AMC
  • AM G64/471 with Quad Core 3.0GHz Xeon E3-1505M v6 with 16GB ECC DDR4 RAM, 256GB SSD, Zone 3 I/O connector
  • NAT-PM-AC600D, NAT 600W AC power module

MTCA-6P-PH1080x
2U 19″ 6-Slot Starter Kit, PCIe Gen 3

  • As above, but with NAT-MCH-PHYS80 MCH instead of NAT-MCH-PHYS

MTCA-6P-PH20x
2U 19″ 6-Slot Starter Kit, PCIe Gen 3

  • 2U 19” 6-Slot MTCA.4 crate, 5 double mid size AMC slots, 5 µRTM slots, 1 double full size AMC slot, MCH with µRTM slot,  JSM slot, PM slot, three different cooling concepts
  • NAT-MCH-PHYS48: MCH for 12 AMCs, 2 CUs and up to 4 PMs; GbE switch, clock generation and distribution; PCIe x4 to every AMC
  • AM G64/471 with Quad Core 3.0GHz Xeon E3-1505M v6 with 16GB ECC DDR4 RAM, 256GB SSD, Zone 3 I/O connector
  • NAT-PM-AC600D, NAT 600W AC power module

MTCA-6P-PH2080x
2U 19″ 6-Slot Starter Kit, PCIe Gen 3

  • As above, but with NAT-MCH-PHYS80 MCH instead of NAT-MCH-PHYS

MTCA-7S-PH10a
5U 7-Slot Starter Kit, PCIe Gen 3

  • 5U 42HP 7-Slot MTCA.4 crate, 6 double mid-size AMC & µRTM slots, 1 double full-size AMC & µRTM slot, MCH & PM slot
  • NAT-MCH-PHYS48: MCH for 12 AMCs, 2 CUs and up to 4 PMs; GbE switch, clock generation and distribution; PCIe x4 to every AMC
  • AM G64/471 with Quad Core 3.0GHz Xeon E3-1505M v6 with 16GB ECC DDR4 RAM, 256GB SSD, Zone 3 I/O connector
  • NAT-PM-AC600D, NAT 600W AC power module

MTCA-12S-PH10a
9U 19″ 12-Slot Starter Kit, PCIe Gen 3 with opt. LLRF Backplane

  • 9U 19” 12-Slot MTCA.4 crate, 12 double mid-size AMC & µRTM slots, 2 MCH & 4 PM slots
  • NAT-MCH-PHYS48: MCH for 12 AMCs, 2 CUs and up to 4 PMs; GbE switch, clock generation and distribution; PCIe x4 to every AMC
  • AM G64/471 with Quad Core 3.0GHz Xeon E3-1505M v6 with 16GB ECC DDR4 RAM, 256GB SSD, Zone 3 I/O connector
  • MTCA.4, W-IE-NE-R 1000W AC power module







Bestellbezeichnungen

MTCA-6P-PH10a

6 Slot 2U 19" MTCA.4 Starter Kit, Phys clock, front to left air cooling

MTCA-6P-PH10b

6 Slot 2U 19" MTCA.4 Starter Kit, Phys clock, right to left air cooling

MTCA-6P-PH10c

6 Slot 2U 19" MTCA.4 Starter Kit, Phys clock, right to left air cooling with more powerful fan units

MTCA-6P-PH1080a

6 Slot 2U 19" MTCA.4 Starter Kit, MCH with spec. Phys clock, front to left air cooling

MTCA-6P-PH1080b

6 Slot 2U 19" MTCA.4 Starter Kit, MCH with spec. Phys clock, right to left air cooling

MTCA-7S-PH10a

7 Slot 5U 42HP MTCA.4 Starter Kit, Phys clock

MTCA-12S-PH10a

12 slot 9U 19" MTCA.4 Starter Kit, Phys clock
