MVME2500/2502 EOL

MVME2500/2502 Low Cost VMEbus CPU-Board with QorIQ P2020 and P2010 Processor for Harsh Environments

Freescale QorlQ P2010 processor with 800 MHz e500 core or Freescale QorlQ P2020 processor with two 1.0 GHz e500 cores or Freescale QorlQ P2020 processor with two 1.2 GHz e500 cores. The QorIQ processor has 512KB L2 cache. Up to 2 GB DDR3 800 MHz are soldered on the board. In addition 16 MB SPI flash is available.

The MVME2500 offers one PMC/XMC site and the MVME2502 offers 2 PMC/XMC sites. The board has also three Gigabit Ethernet ports, one USB 2.0 port, five serial ports, one SDHC flash slot, and opt. one SSD. The MVME2500 family is available with IEEE handles or standard handles.

The MVME2500 family uses the U-Boot firmware which provides power-on self-test, initialization and operating system booting capabilities. It is based on the 2009.08 patched U-Boot provided by Freescale.

The MVME2500 family is a perfect migration path for the PowerQUICC processor boards (MVME3100 and MVME4100), as well as the G4 processor boards (MVME5100 and MVME5110) and has only 28W power consumption with the Dual Core CPU. That's why the MVME2500 family provides an unbeatable cost-performance ratio.

Board support packages for VxWorks, Linux, QNX, and Integrity are available.

The product is end of life on 15.3.2024. If you have any questions, please contact us.

ORDER NOW

Technical Description

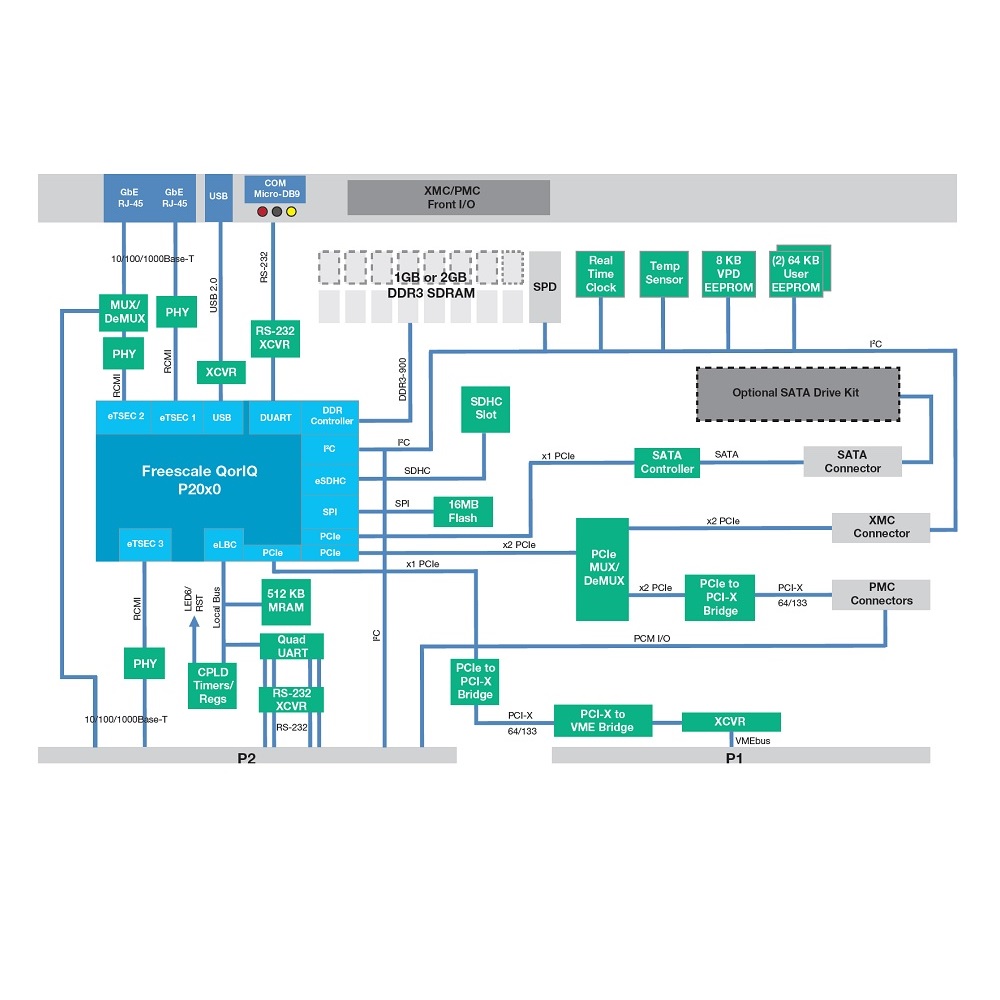

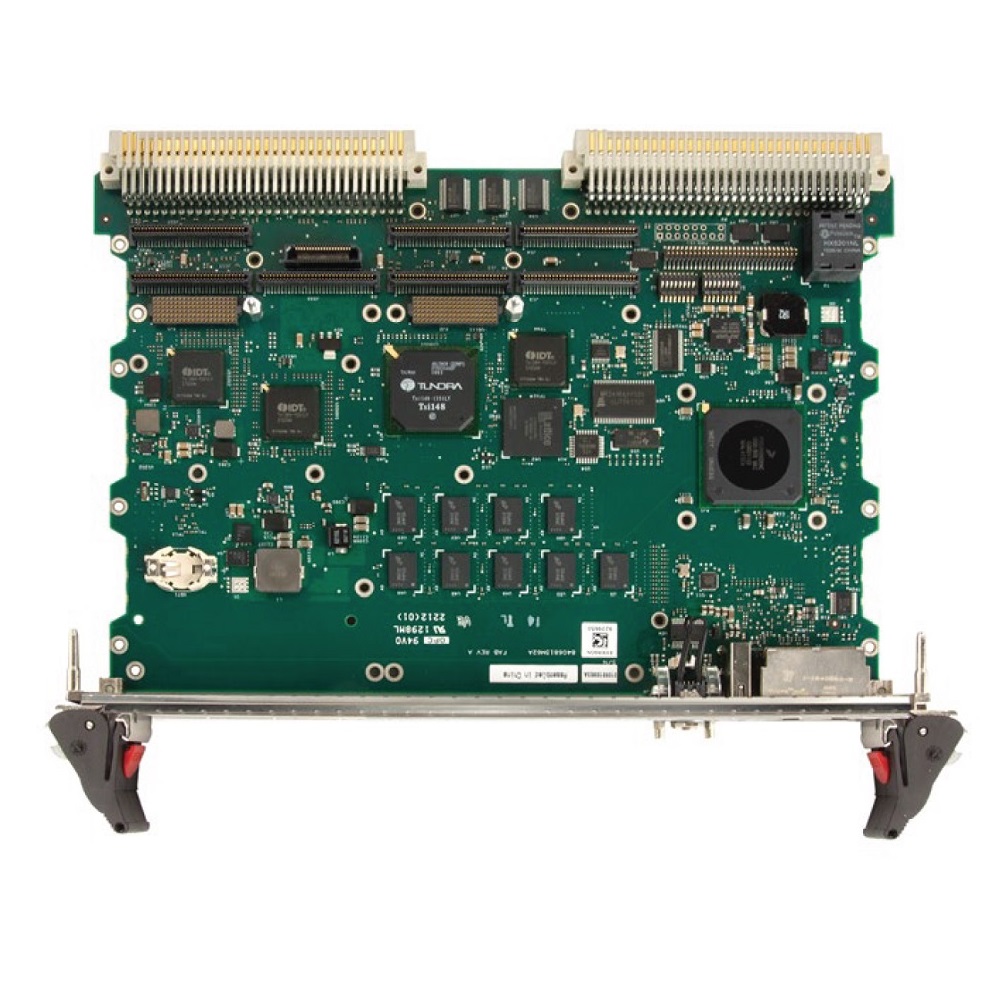

proimg1
  • 6U/4HP VMEbus board
  • 800 MHz Freescale QorlQ P2010 CPU with one e500 core,
    1.0 GHz Freescale QorlQ P2020 CPU with two e500 cores,
    1.2 GHz Freescale QorlQ P2020 CPU with two e500 cores
  • Up to 2 GB 800 MHz DDR3 RAM, soldered
  • 8 GB eMMC flash on the MVME2502
  • SDHC slot
  • 512 KB MRAM
  • 16 MB SPI flash
  • Up to 2 PMC/XMC sites
  • Three Gigabit Ethernet ports, 1 front panel port, 1 rear port, and 1 front panel or rear port, selectable
  • One serial Micro-DB9 front panel port
  • Front USB 2.0 interface
  • Four RS-232 ports
  • U-Boot firmware
  • 2eSST VMEbus interface
  • Real time clock and watchdog timer
  • In 2 environmental classes available: standard 0°C .. 55°C and extended grade -40°C .. +71°C
  • 2 years warranty, opt. extendable to 5 years

Order Information

MVME2500-01080101S

VMEbus CPU board QorIQ P2010 800MHz, 1GB DRAM, standard handles

MVME2500-01080101E

VMEbus CPU board QorIQ P2010 800MHz, 1GB DRAM, IEEE handles

MVME2500-02120201S

VMEbus CPU board QorIQ P2020 1200MHz, 2GB DRAM, standard handles

MVME2500-02120201E

VMEbus CPU board QorIQ P2020 1200MHz, 2GB DRAM, IEEE handles

MVME2500-01080102E

VMEbus CPU board QorIQ P2010 800MHz, 1GB DRAM, IEEE handles, -40°C .. +71°C

MVME2500-02100202S

VMEbus CPU board QorIQ P2020 1200MHz, 2GB DRAM, standard handles, -40°C .. +71°C

MVME2500-02100202E

VMEbus CPU board QorIQ P2020 1200MHz, 2GB DRAM, IEEE handles, -40°C .. +71°C

MVME2502-02120201E

VMEbus CPU board QorIQ P2020 1.2GHz, 2GB DRAM, 2 PMC/XMC slots, IEEE handles

MVME2502-02120201S

VMEbus CPU board QorIQ P2020 1.2GHz, 2GB DRAM, 2 PMC/XM slots, standard handles

MVME2502-02100202E

VMEbus CPU board QorIQ P2020 1.0GHz, 2GB DRAM, 2 PMC/XMC slots, IEEE handles, -40°C .. +71°C

MVME2502-02100202S

VMEbus CPU board QorIQ P2020 1.0GHz, 2GB DRAM, 2 PMC/XMC slots, standard handles, -40°C .. +71°C

MVME7216E-101

Transition module, I/O via 5 rowP2, 2xGbE, 4 serial, PIM

MVME721ET-101

Transition module, I/O via 5 rowP2, 2xGbE, 4 serial, PIM, -40°C .. +71°C

MVME721ET-102

Transition module, I/O via 5 rowP2, 2xGbE, 4 serial, PIM, -40°C .. +71°C, scanbe handles

SERIAL-MINI-D2

Serial cable Micro D sub connector to standard DB9

VME-HDMNTKIT

HDD/SSD mounting kit

MVME2500-BSP

Linux BSP

MVME2500-doc

User's manual

Technical Documentation

MVME2500 Data Sheet
