MVME8100 Rugged Conduction-cooled VMEbus CPU Board with QorIQ P5020 Processor and VXS Interface

Freescale P5020 QorIQ processor with 1.8/2.0 GHz. The board provides 512 KB FRAM, 8 GB eMMC NAND Flash, 16 MB SPI ROM and up to 8 GB ECC DDR3-1333 RAM. Standard 0°C .. +55°C and conduction-cooled -40°C .. +85°C versions are available.

The MVME8100 offers two PMC/XMC slots, up to five Gigabit Ethernet ports, one Micro DB9 port, three USB 2.0 ports, one SATA Port, four GPIO ports, up to 2 PCI x4 links, up to 2 SRIO x4 links and up to 4 RS-232/422/485 ports. The MVME8100 is available with IEEE handles and standard handles.

Bard Support Packages for WindRiver VxWorks, Linux, Green Hills Integrity and Hypervison are available.

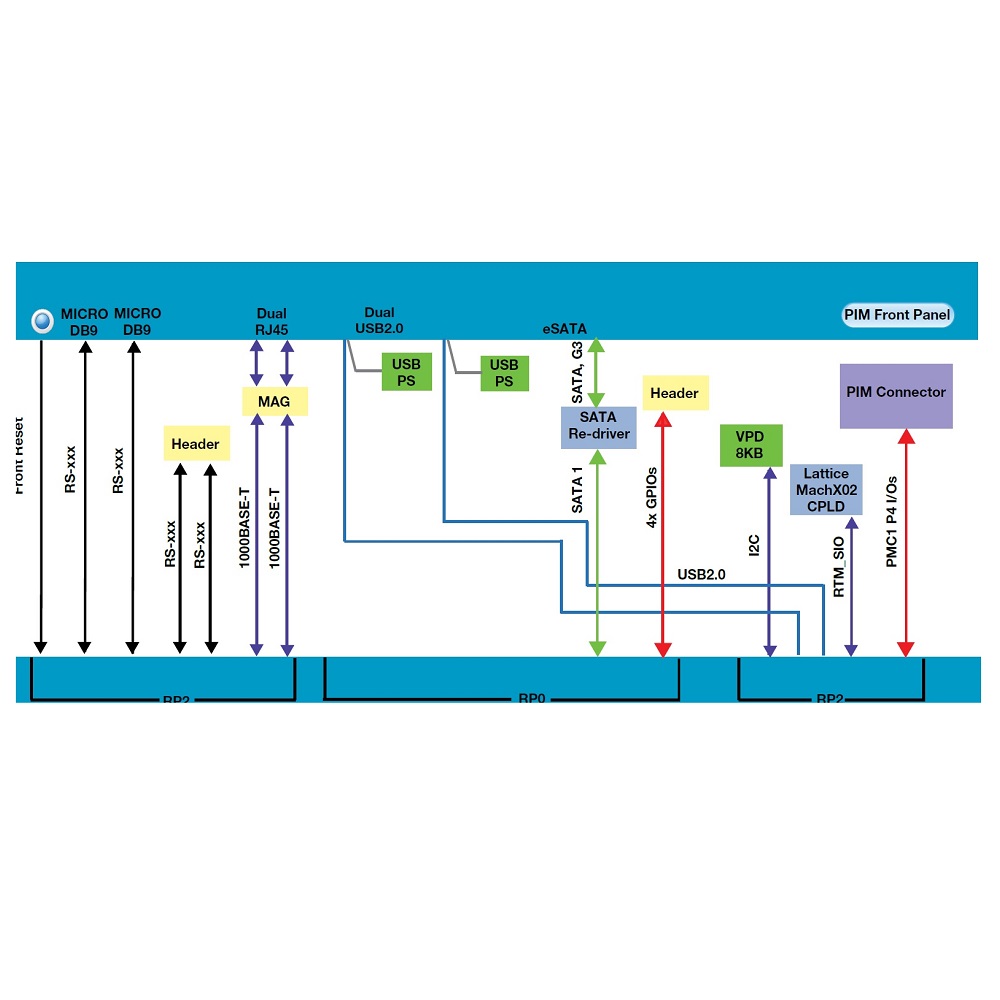

The MVME8100 can be combined with the transition module VXS-RTM1 which offers two additional USB 2.0, two serial interfaces (RJ-45 or DB9), two Gigabit Ethernet and one SATA interface. A PIM-module can be used via PMC slot 1.

ORDER NOW

Technical Description

proimg1

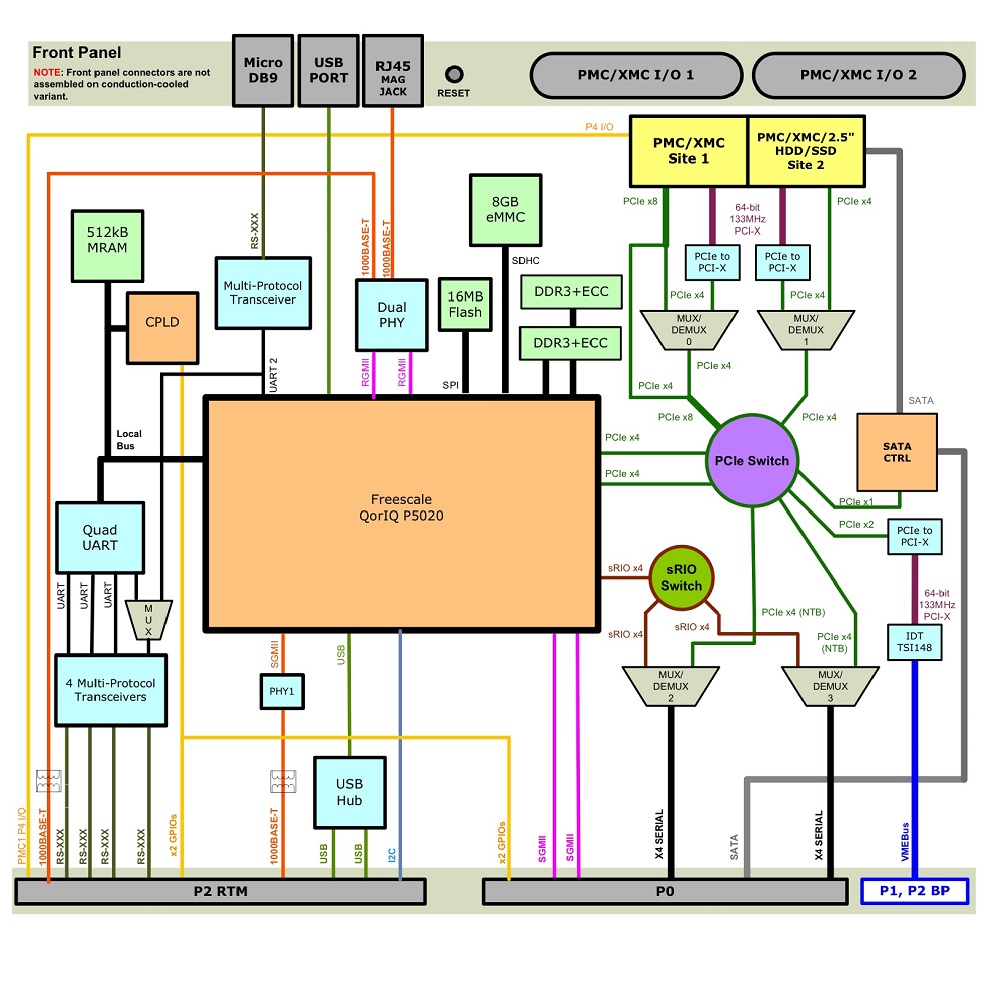

  • 6U/4HP VMEbus board with VXS interface, VME64x, VITA 1.5 2eSST, VITA 39 XMC, VITA 41.0, 41.2, 41.4, 41.6 VXS compliant
  • 1.8/2.0 GHz Freescale P5020 QorIQ processor
  • Up to 8 GB DDR3-1333 ECC RAM, soldered
  • 16 MB SPI ROM
  • 512 KB FRAM
  • 8 GB eMMC NAND flash with SD/MMC interface
  • Two PMC/XMC slots
  • Opt. 2,5″ SATA HDD/SSD occupies PMC slot 1
  • Up to five Gigabit Ethernet ports
  • One Micro DB9 front panel port
  • Three USB ports, one USB 2.0 front panel port
  • One SATA port via P0
  • 4 GPIO ports
  • Up to 2 PCIe x4 VITA 41.4 links via P0
  • Up to 2 SRIO x4 VITA 41.2 links via P0
  • 3 or 4 RS232/422/485 ports via P2
  • Watchdog and real time clock
  • UBoot firmware
  • WindRiver VxWorks, Linux, Green Hills Integrity and Hypervisor Board Support packages
  • In 4 environmental classes available: standard 0°C .. 55°C, extended grade -40°C .. +71°C, conduction-cooled -40°C .. +71°C and conduction-cooled -40°C .. +85°C
  • 2 years warranty, opt. extendable to 5 years

Order Information

MVME8100-202200401S

VME/VXS CPU board, 2 GHz P5020, 4 GB RAM, 2 PMC/XMC slots, standard handles, 0°C .. +55°C

MVME8100-202200401E

VME/VXS CPU board, 2 GHz P5020, 4 GB RAM, 2 PMC/XMC slots, IEEE handles, 0°C .. +55°C

MVME8100-202180404

VME/VXS CPU board, 1.8 GHz P5020, 4 GB RAM, 2 PMC/XMC slots, CC version

VXS1-RTM1

RTM for MVME8100

VME-64GBSSDKIT

64GB SSD and mounting kit

VME-HDMNTKIT

HDD/SSD mounting kit

Technical Documentation

MVME8100 Data Sheet
