MVME8105 VMEbus CPU Board with QorIQ P5020 Processor

Freescale P5020 QorIQ processor with 2.0 GHz., the board provides 512 KB MRAM, 8 GB eMMC NAND Flash, 16 MB SPI ROM and 4 GB ECC DDR3-1333 RAM.

The MVME8105 offers two PMC/XMC slots, three Gigabit Ethernet ports, one Micro DB9 port, two USB 2.0 ports, two GPIO ports, and 4 RS-232/422/485 ports. The MVME8105 is available with IEEE handles and standard handles.

Bard Support Packages for WindRiver VxWorks, Linux and Green Hills Integrity are available.

The MVME8105 can be combined with the transition module MVME8110-RTM which offers two additional USB 2.0, two Micro DB9 RS-232/422/485, two RS-232/422/485, two Gigabit Ethernet, two GPIO ports and one PIM site.

The product is end of life on 15.3.2024. If you have any questions, please contact us.

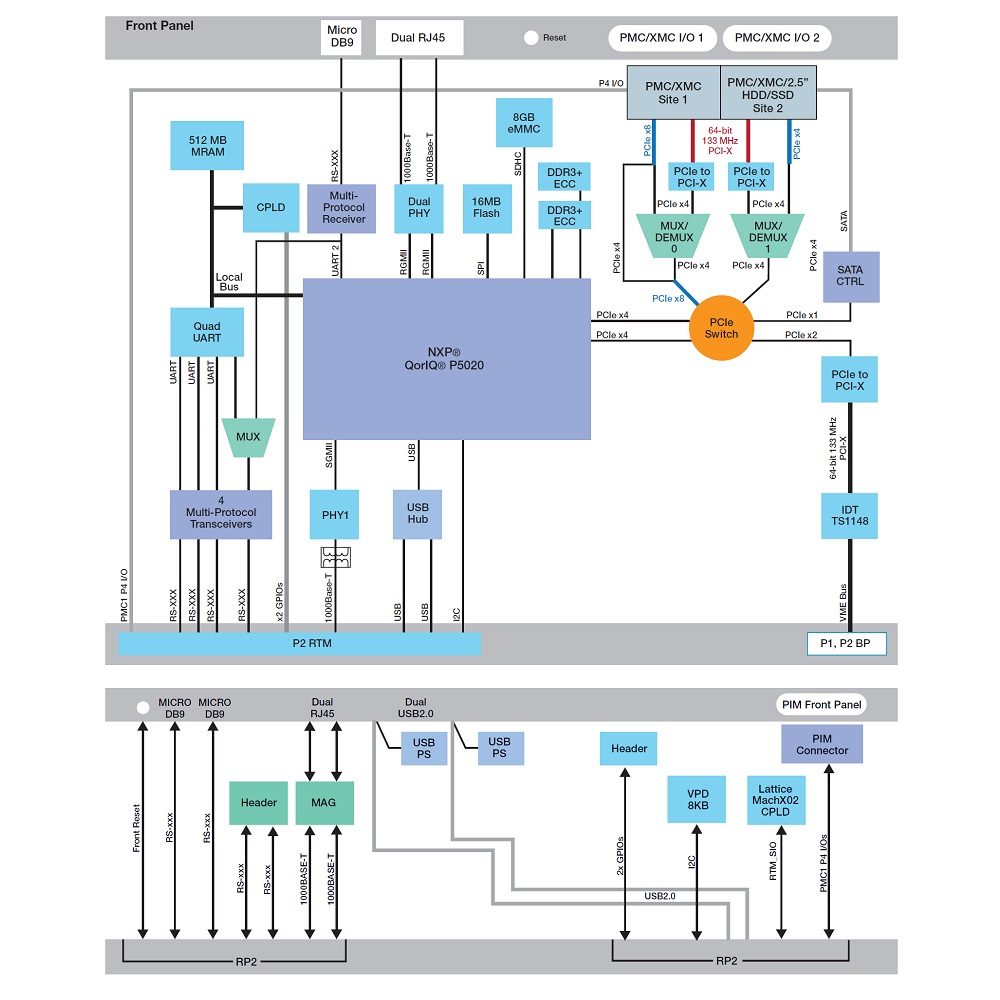

Technical Description

  • 6U/4HP VMEbus board, VME64x compliant
  • 2.0 GHz Freescale P5020 QorIQ processor
  • 4 GB DDR3-1333 ECC RAM, soldered
  • 16 MB SPI ROM
  • 512 KB MRAM
  • 8 GB eMMC NAND flash
  • Two PMC/XMC slots
  • Opt. 2,5″ SATA HDD/SSD occupies PMC slot 2
  • Three Gigabit Ethernet ports, one port via P2 and two front panel ports
  • One Micro DB9 RS-232/422/485 front panel port
  • Two USB 2.0 ports via P2
  • 2 GPIO ports
  • 4 RS232/422/485 ports via P2
  • Watchdog and real time clock
  • UBoot firmware
  • WindRiver VxWorks, Linux and Green Hills Integrity support
  • 0°C .. 55°C operating temperature range
  • 2 years warranty, opt. extendable to 5 years

Order Information


VME CPU board, 2 GHz P5020, 4 GB RAM, 2 PMC/XMC slots, standard handles, 0°C .. +55°C


RTM for MVME8100/8105/8110


HDD/SSD mounting kit

Technical Documentation

MVME8105 Data Sheet
