NAMC-ODSP-M Media Processing Acceleration for ATCA and MTCA

NAT's NAMC-ODSP-M modules add video and audio acceleration to AdvancedTCA and MicroTCA systems. It provides a broad range of audio/video codecs and algorithms, including H.264, MPEG4, H.263, and G.711, G.729, SILK and Opus, in a compact AMC module. An onboard FPGA simplifies management while extend and customize the module to suit the exact needs of the customers application. Integrated media gateway software provides rich audio and video applications with many codecs and protocols included and a simple configuration API so no DSP programming is required.

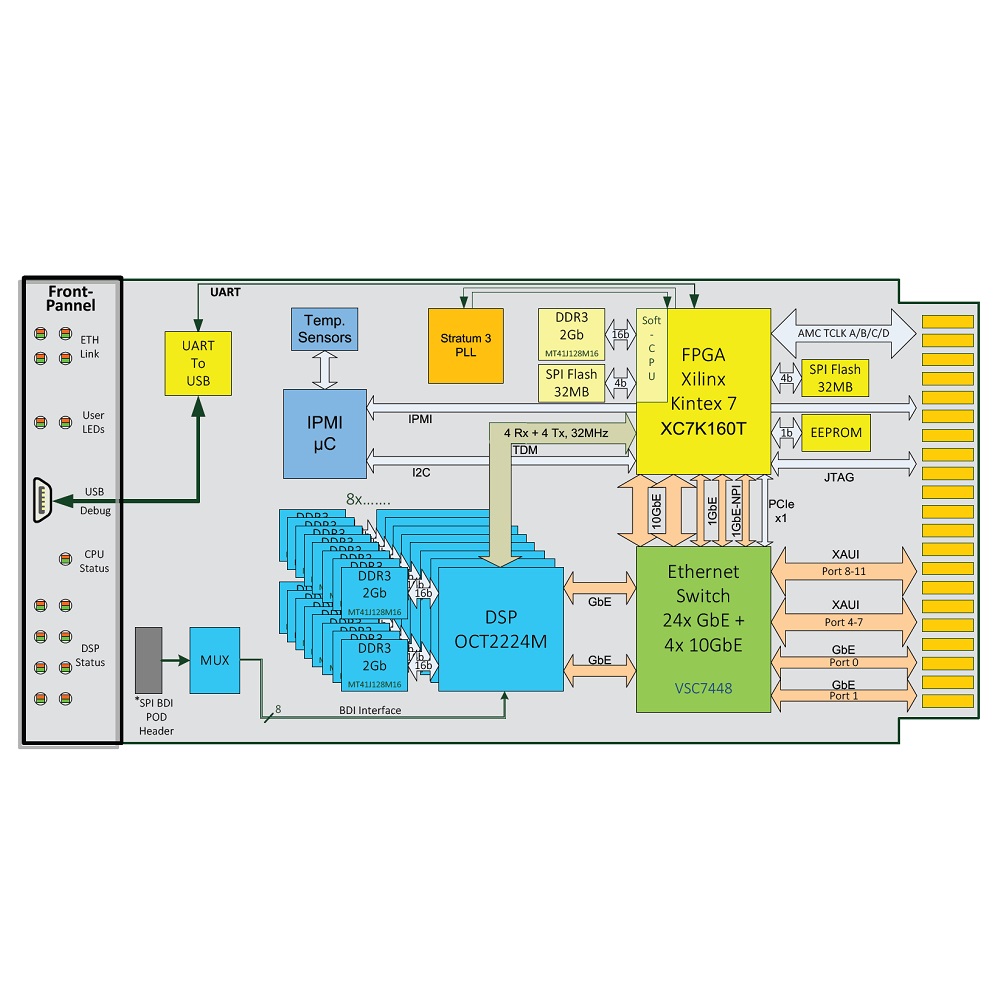

Technical Description

  • Media Processing AMC module
  • AMC module with AMC.2 type 2 E2 interface, mid size and full size form factor
  • Up to eight 24-core Octasic OCT2224M DSPs
  • 512MB DDR3 RAM for each DSP
  • iTDM interface to the FPGA for each DSP
  • Xilinix Kintex-7 XC7K160T FPGA
  • Microblaze soft-core CPU
  • Two GbE ports via port 0 and 1
  • Two XAUI 10GbE ports via port 4-7 and 8-11
  • 28 port Vitesse VSC7448 switch with 24 GbE ports and 4 10GbE ports
  • L2 and L3 switching/rounting
  • Integrated media gateway software
  • Capable of up to:
    5.120 channels G.729AB/G.711 transcoding
    16 simultaneous H.264 HD/SD transcodes
    16.384 TDM/iTDM channels
  • Supported Audio Codecs:
    Wireline G.711, G.722, G.723, G.726, G.729a, wireless: AMR, AMR-WB, EFR, GSM-FR, EVRC-A /-B /-NW2K, internet: SILK, Opus, iLBC, acoustic echo cancellation, noise reduction, level control, tone detection/ generation/relay, conferencing
  • Supported Video Codecs:
    H.263, MPEG4, H.264, MPEG2, 1080p to QCIF resizing, bit rate/ frame rate adaption, mixer, picture-in-picture, data, T.38 fax relay, voice band-date
  • Clocking Chip Si5338
  • Stratum 3 Telecom PLL
  • Linux operating system
  • 0°C .. +60°C operating temperature range
  • Power consumption 45W (TBD)
  • 2 years warranty

Order Information


AMC module with 8 OCT2224M-DSPs


Reduced DSPs on request


NAT Firmware with basic audio codecs


NAT Firmware with audio and video codecs

Technical Documentation

NAMC-ODSP-M data sheet

NAMC-ODSP-M user manual
