NAMC-QorIQ-P5020

NAMC-QorIQ-P5020 Processor AMC with 2 Core 2.0 GHz P5020 PowerPC and opt. 10GbE Front Panel Port

NAT's NAMC-QorIQ-P5020 module offers an 2.2 GHz P5020 processor with two e5500 PowerPC Cores. Up to 8 GB DDR3 1333 MHz ECC SDRAM and up to 2 GB NAND flash are available. The Lattice ECP3 FPGA offers ITDM, PTP protocol acceleration, and IEEE1588/RTP timestamp insertion/synchronization. RTP (Real Time Protocol) and PTP (Precision Time Protocol) real time clock and PPL telecom clock are supported. An opt. additional H.110-like timeslot interchanger (TSI) interface is available.

The NAMC-QorIQ-P5020 series has three Gigabit Ethernet ports, two SATA ports, one USB port, 18 SerDes ports, and an I-TDM interface. The backplane offers Serial Rapid IO x4 (SRIO), 10Gigabit Ethernet (XAUI), and PCIe x4. Opt. one 10Gigabit Ethernet SFP+ port and H.110 are available. One Gigabit Ethernet, one USB 2.0 and opt. one 10 Gigabit Ethernet ports are available on the front panel.

The module supports Linux, QNX, VxWorks, the real time Open Kernel 1 with multi processing (OK1-M), which will be delivered in source code and the multi-core real-time operating system Enea OSE which is optimized for telecom applications.

ORDER NOW

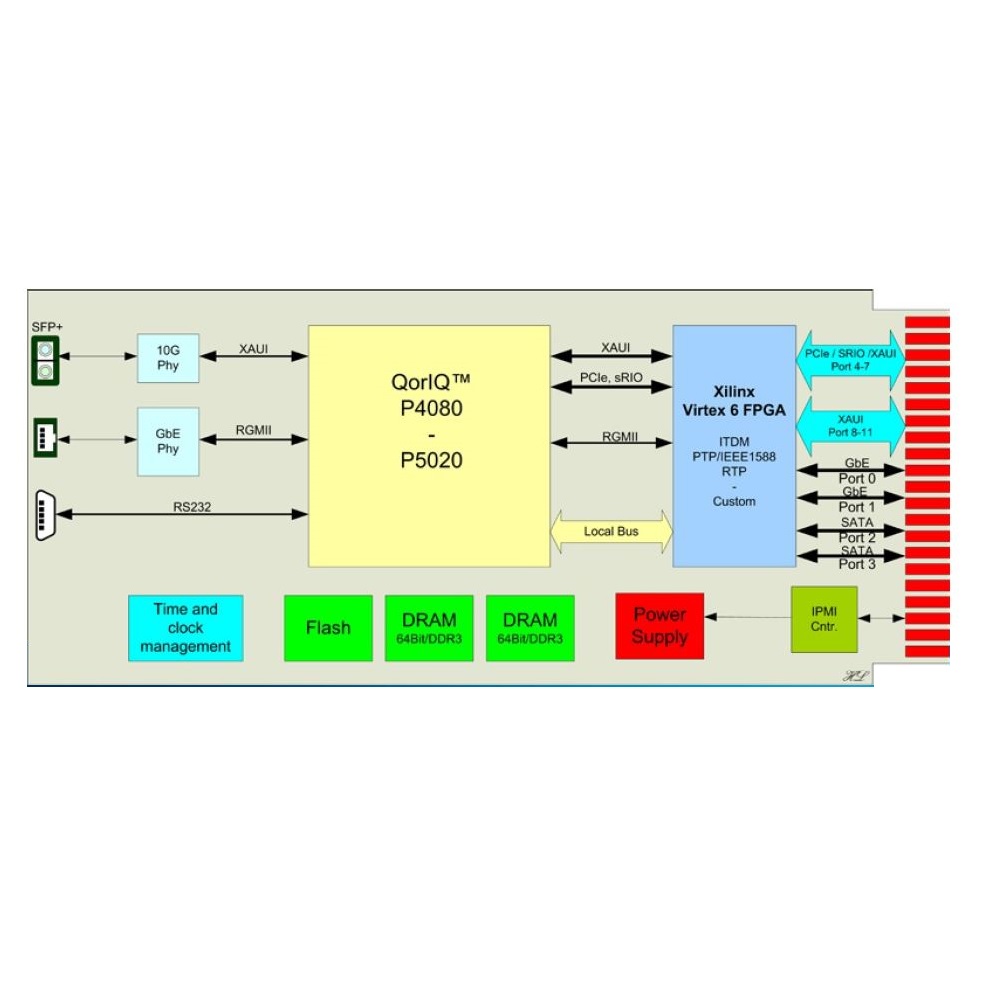

Technical Description

proimg1
  • Processor AMC module
  • AMC Module with AMC.1 type 4, AMC.2 type E2, AMC.3 SATA and AMC.4 SRIO interface, mid size and full size form factor
  • 2 Core 2.2 GHz P5020 processor with e5500 PowerPC Cores
  • Up to 8 GB DDR3 1333 MHz ECC SDRAM
  • Up to 2 GB NAND flash
  • 18 SerDes ports (one XAUI, three PCIe 2.0, two SRIO 1.3 & 2.1, and eight SGMII)
  • Lattice ECP3 FPGA or Xilinx Virtex-6 FPGA XC6VLX130T, XC6VLX195T, XC6VLX240T or XC6VLX365T
  • Opt.10 Gigabit Ethernet port (XAUI) SFP+ front panel port
  • Three Gigabit Ethernet ports, one front panel port and two ports on the backplane via port 0 and 1
  • Two SATA ports on the backplane via port 2 and 3
  • USB 2.0 front panel port
  • I-TDM interface
  • Opt. H.110 interface
  • Serial Rapid IO x4 (SRIO), PCI Express x4 (PCIe) and 10Gigabit Ethernet x4 (XAUI) on the backplane via port 4-7 or 8-11
  • 0°C .. 55°C operating temperature range
  • 2 years warranty

Order Information

NAMC-QorIQ-P5020-F

Processor AMC module, 2 core 2.0 GHz P5020 PowerPC, Lattice FPGA, full size

NAMC-QorIQ-P5020-M

Processor AMC module, 2 core 2.0 GHz P5020 PowerPC, Lattice FPGA, mid size

NAMC-QorIQ-P5020-ECOF

Processor AMC module, 2 core 2.0 GHz P5020 PowerPC, Virtex6 FPGA, full size

NAMC-QorIQ-P5020-ECOM

Processor AMC module, 2 core 2.0 GHz P5020 PowerPC, Virtex6 FPGA, mid size

NAMC-QorIQ-P5020-V6F

Processor AMC module, 2 core 2.0 GHz P5020 PowerPC, full size, min. order 50 pcs

NAMC-QorIQ-P5020-V6M

Processor AMC module, 2 core 2.0 GHz P5020 PowerPC, mid size, min. order 50 pcs

Technical Documentation

NAMC-QorIQ-Px0xx Data Sheet

NAMC-QorIQ-P3x_P4x_P5x – Technical Reference Manual
