NAT-FMC-4GigE-PoE FMC-Modul with 4 GbE Ports and PoE

Gigabit Ethernet switch supporting Power over Ethernet (PoE). The FMC module has four GbE RJ45 front panel ports with Power over Ethernet capability. The interface complies with IEEE802.3af standard (15.4W per link with additional power feed).

The NAT-FMC-4GigE-PoE is dedicated to powerful FPGA based FMC carrier boards like the NAMC-ARRIA10-FMC or the NAMC-ZYNQ-FMC boards which by their FPGA provide the processing resources i.e. for the GigE Vision® protocol.

GigE Vision® is a global camera interface standard developed using Gigabit Ethernet, allowing for fast image transfer using low cost standard CAT5 or CAT6 cables over very long lengths.

ORDER NOW

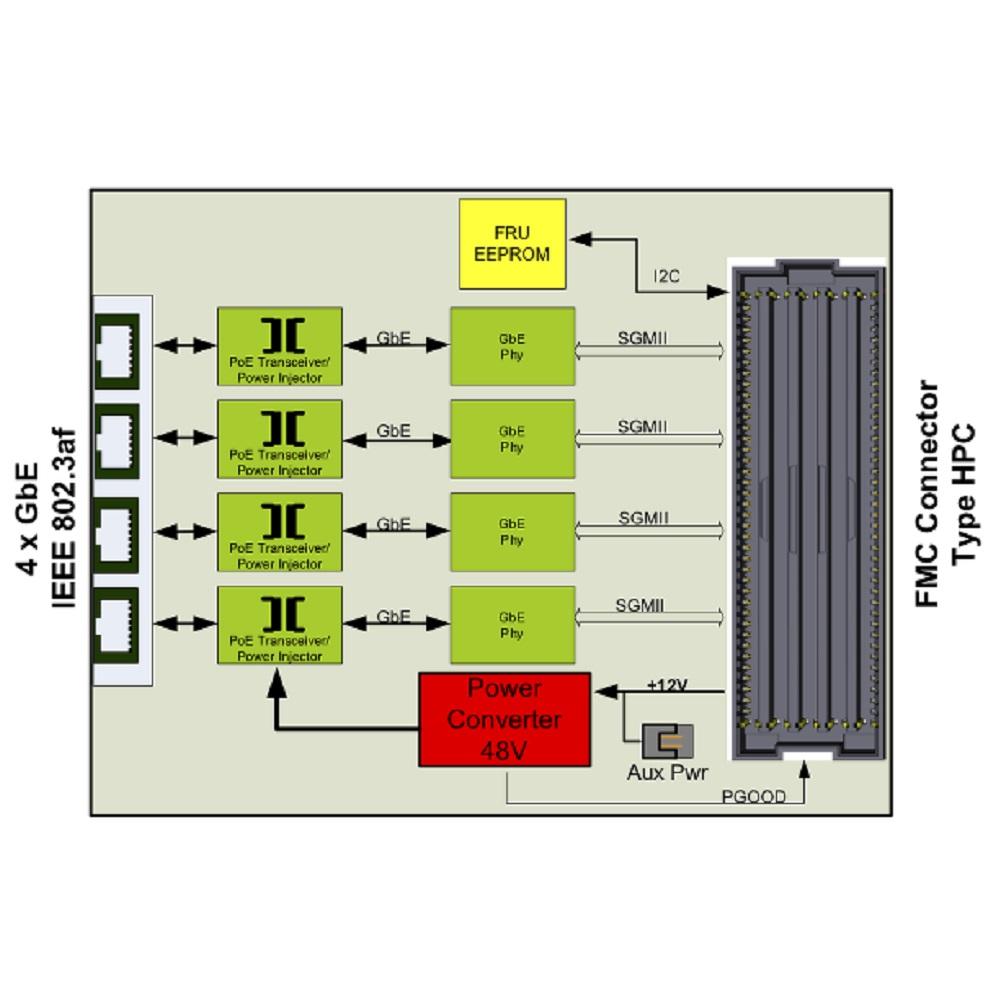

Technical Description

proimg1
  • FMC module, VITA 57.1 comliant
  • Four IEEE 802.3af compliant RJ45 ports, max 15.4W per channel with additional power feed, max 10W total without additional power feed
  • High-efficient power conversion
  • VITA 57.1 FMC high pin count (HPC) connector
  • 12V, 6W typ. power consumption
  • 0°C .. +50°C operating temperature range
  • 2 years warranty

Order Information

NAT-FMC-PoE

FMC Module with 4 GbE Ports, PoE Support

Technical Documentation

NAT-FMC-4GigE-PoE-DS

NAT-FMC-4GigE-PoE Data Sheet
