NAT-PM-AC1000 1000W Power Module with low Ripple and Noise and high Efficiency

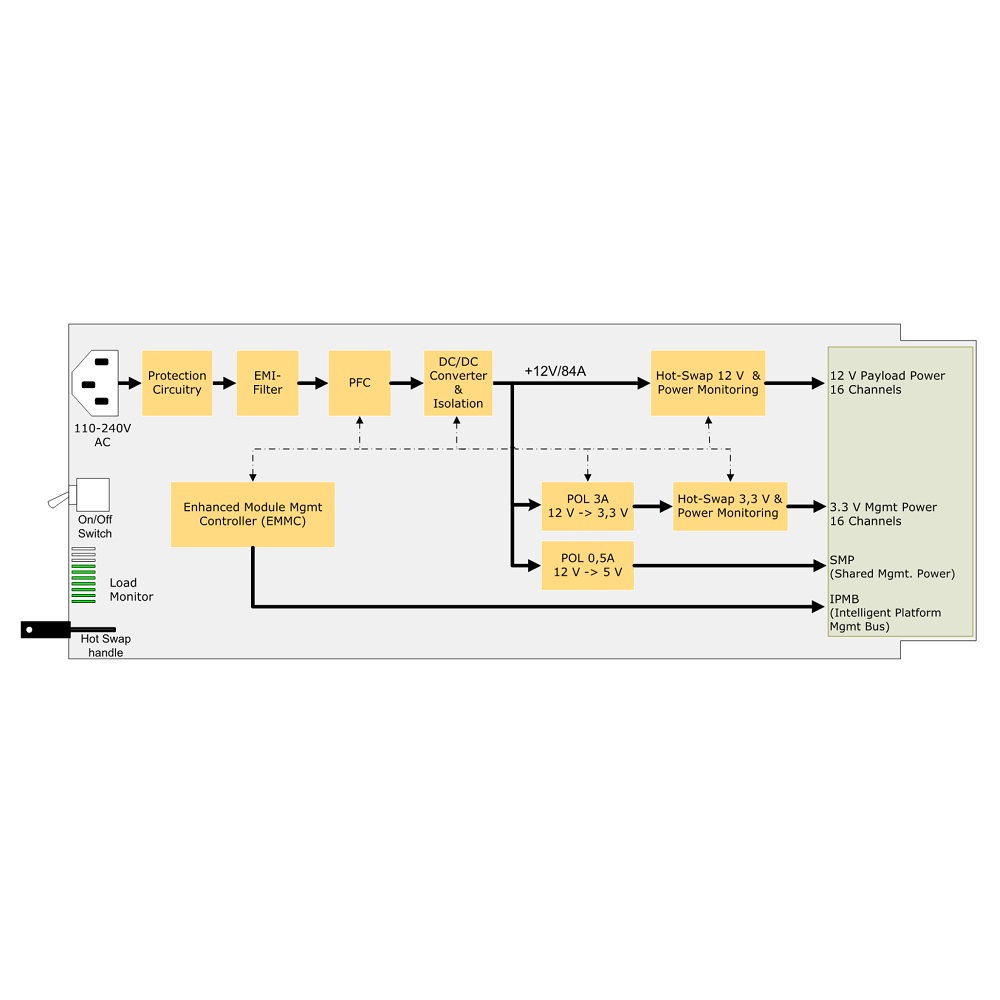

1000W AC power module providing management and low ripple and noise. It is designed for MicroTCA compliant crates and systems. NAT's NAT-PM-AC1000 power module provides functionality for powering, managing, and protecting a MicroTCA system that includes up to 12 AdvancedMCs, 2 MCHs, and 2 Cooling Units.


Technical Description

  • 1000W MicroTCA Power Module
  • MircoTCA Power Module, PICMG MicroTCA.0 compliant, double full size form factor, 6HP
  • 110-240 VAC input
  • Enhanced Module Management Controller (EMMC)
  • Hot-swap N+1 redundancy
  • Backup power for other PMs (Shared Management Power, SMP)
  • Load sharing
  • Programmable current limiting threshold per output channel
  • 16 channels of 12 V @ 80 A; 16 channels of 3.3 V @ 3 A
  • Protection against short circuit, over temperature, over voltage, and under voltage
  • Hardware Platform Management firmware upgrade support
  • Max. 10mV ripple and noise (12V)
  • Max. 20mV ripple and noise (3.3V)
  • Max. load per channel at 12VDC: 1000W/80A
  • Max. load per channel at 3.3VDC: 9.9W/3A
  • Efficiency: 90%
  • Operating temperature range -5 .. +55°C, opt. -40°C .. +85°C
  • 2 years warranty

Order Information


1000W power module, double full size


1,8m power cord with safety lock mechanism
