PP XMC/M02 6U CompactPCI Dual XMC/PMC Carrier Board

6U CompactPCI carrier board for two XMC/PMC modules. CONCURRENT Technologies' PP XMC/M02 supports 64bit/100MHz operation with 3.3V or 5V signalling voltage (Vio). The board provides front panel and backplane I/O. The backplane I/O is routed via J3 and J5 and allows the use with standard backplanes.

The board is compliant to CompactPCI hot swap specifications PICMG® 2.1, Rev. 1.0


Technical Description

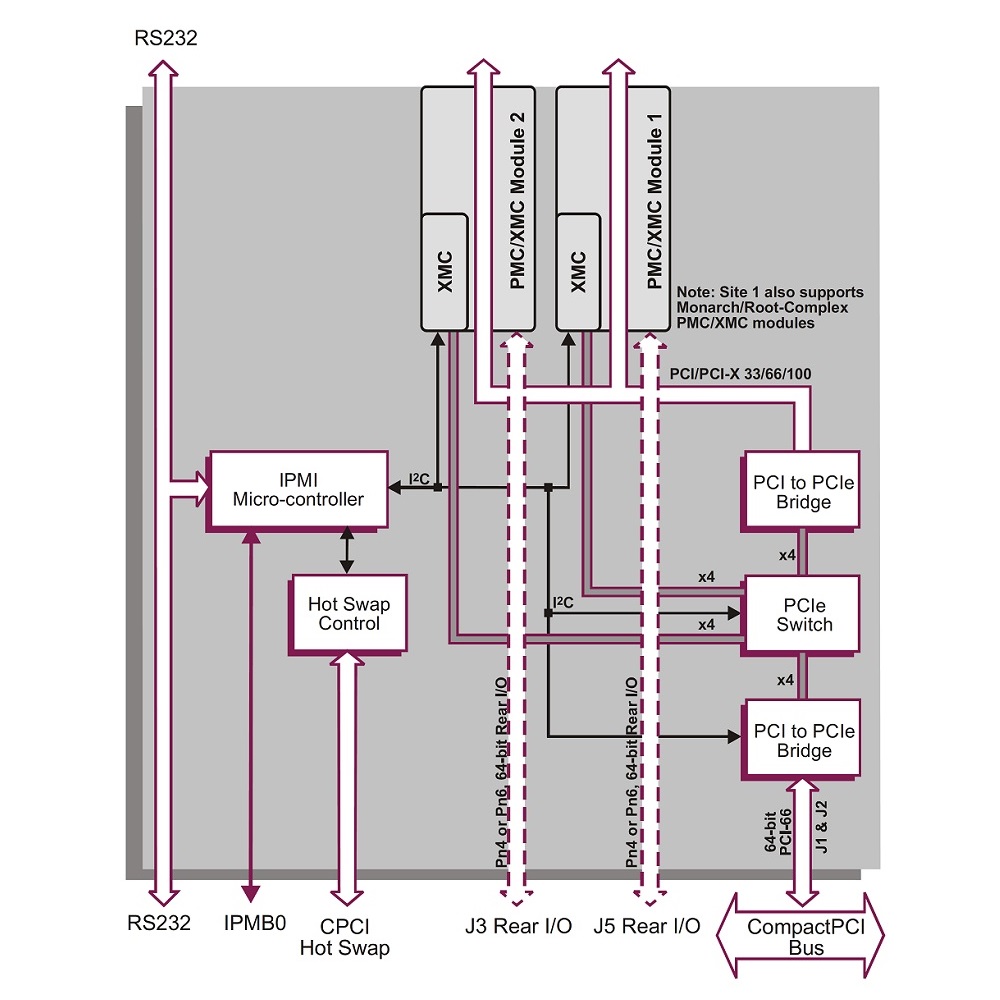

  • 6U/4HP CompactPCI board, PICMG 2.0 R3.0, PICMG 2.1 R2.0, PICMG 2.9 R1.0 compliant, 64bit/100 MHz PCI interface, 3.3/5V Vio
  • Two XMC/PMC sites for IEEE 1386 compliant modules, VITA 42
  • Front panel I/O and backplane I/O via J3 and J5
  • RS-232 front panel port and via rear I/O
  • Onboard baseboard management controller
  • CompactPCI bridge configuration via RS-232 port or IPMI
  • In 3 environmental classes available: standard (0°C .. 55°C), extended grade (-25°C .. +70°C) and (-40°C .. +85°C)
  • 2 years warranty

Order Information


6U CPCI 2 port XMC/PMC carrier board

Technical Documentation

PP XMC/M02 data sheet
