RackPak/M12-44 MicroTCA.4 Crate with JTAG Slot

12 double full size AMC slots and 6 double full size transition module slots. One full size slot for one JTAG switch module (JSM) is also available. It is compliant to the xTCA specification PICMG MicroTCA.4 R1. The Schroff 9U MicroTCA.4 crate has two MCH and four/two power module slots. The dust filter are exchangeable from the front. The system has a front to rear air flow. The backplane has a Dual-Star topology.


Technical Description

  • 9U/84HP MicroTCA.4 crate, front handles, PICMG MicroTCA R1.0 and PICMG MTCA.4 R1.0 compliant
  • 12 double full size AMC slots
  • 6 double full size rear transition module slots
  • 1 full size slot for one JTAG switch module (JSM)
  • 2 MCH slots
  • 4/2 Power module slots
  • 2 hot swapp fan units with cooling unit manager (CU EMMC)
  • Dust filter, front exchangeable
  • Front to rear air flow

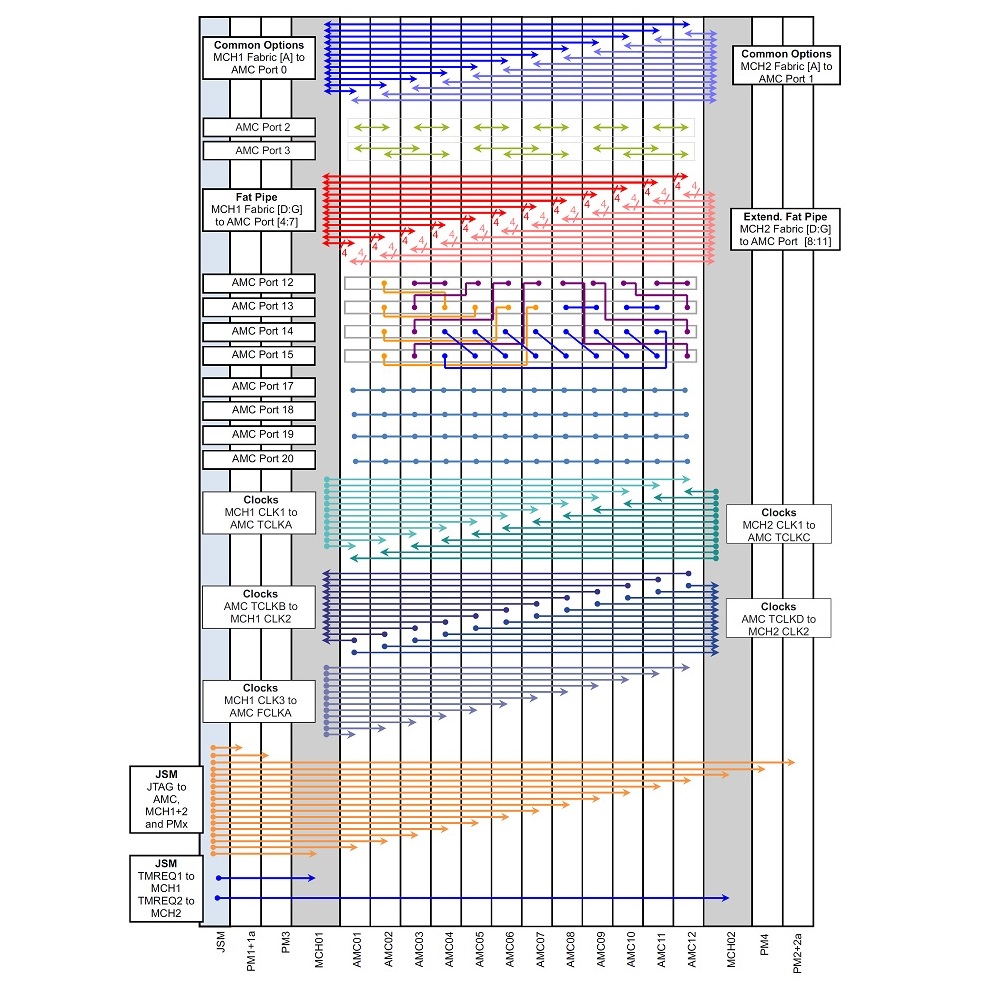

  • MTCA.4 backplane with Dual-Star topology
  • Opt. fan speed for front and rear range separately adjustable via the MCH
  • System depth: 373.30 mm
  • Operating temperature range -5 .. +50°C
  • 2 years warranty

Order Information


MTCA.4 system with 12 double full-size AMC slots and 6 double full-size RTM slots, front to rear cooling

Technical Documentation

RackPak/M12-44 Data Sheet

RackPak/M12-44 User Manual
