RackPak/M5-1

RackPak/M5-1 2U 19" 6 Slot MTCA.4 Crate with JSM Slot

2U 19" rack offering 5 double mid size AMC and µRTM slots, 1 double full size AMC slot, and one double full size MCH with µRTM slot. It is conform to the xTCA specification PICMG MTCA.4 R1.0.

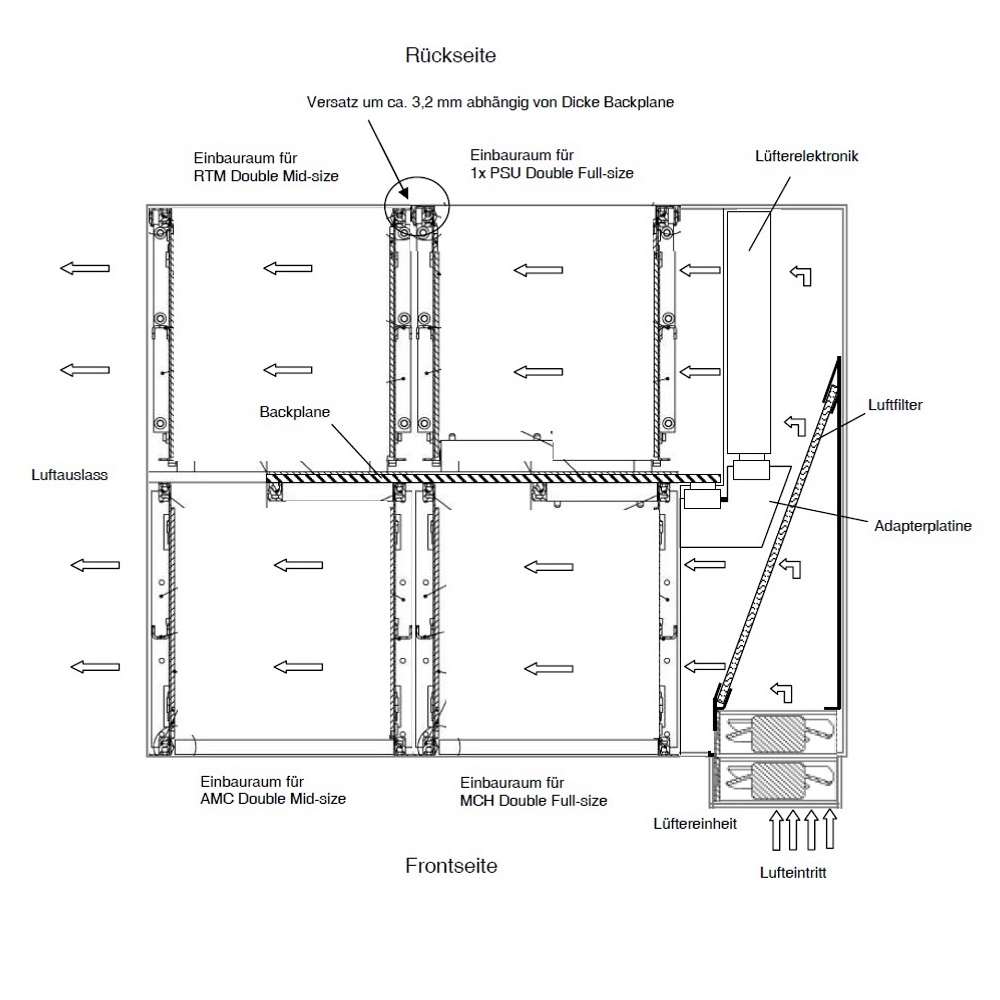

The powerBridge Computer RackPak/M5-1 MTCA.4 crates has a hot-swappable cooling unit for AMC and RTM slot cooling. The fan speed can be adjusted via the MCH. The crate is available with front to left and right to left air flow.

ORDER NOW

Technical Description

proimg1
  • 2U 19″ MTCA.4 crate, PICMG MTCA.4 R1.0
  • 5 double mid size AMC slots
  • 1 double full size AMC slots
  • 5 double mid size µRTM slots
  • Double full size MCH slot with µRTM slot
  • Double full size Power module slot
  • JTAG switch module (JSM) slot

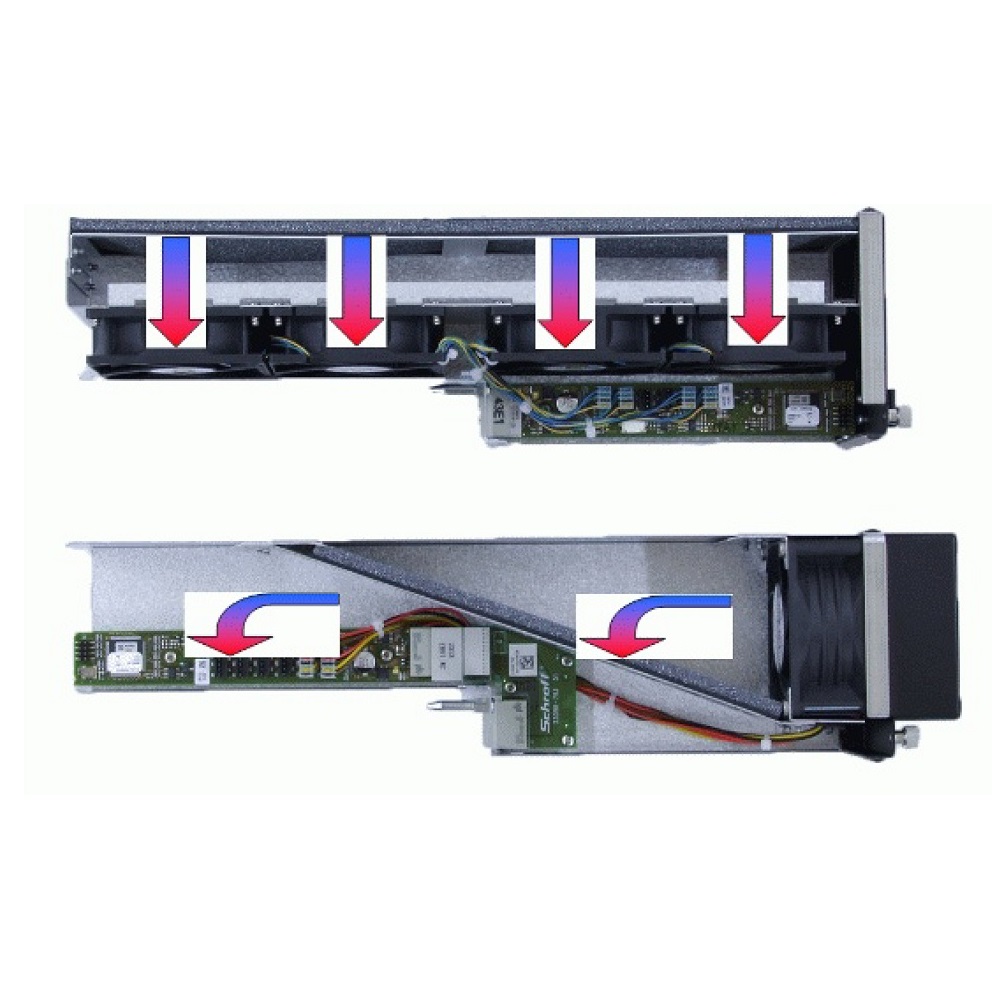

  • Exchangeable cooling unit with front to left or right to left air flow
  • Dust filter exchangeable

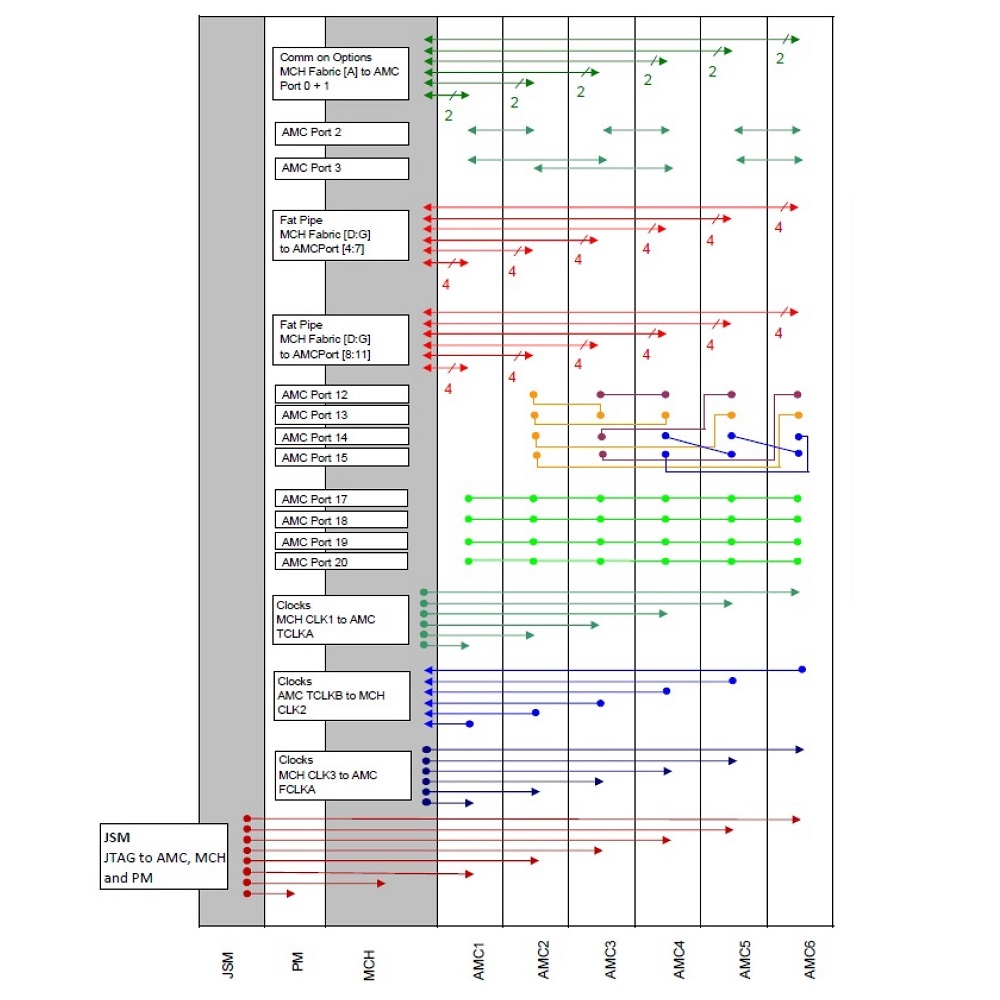

  • Dual Ethernet Link (port 0+1) to every AMC
  • PCIe x8 support on ports 4-11
  • Optional White Rabbit support
  • System depth: 378 mm
  • 2 years warranty

Order Information

RackPak/M5-1F

2U 19" MTCA.4 crate, cooling unit, front to left air flow

RackPak/M5-1R

2U 19" MTCA.4 crate, cooling unit, right to left air flow

SO-RP-CU-F

Replacement fan tray, front to left air flow

SO-RP-CU-R

Replacement fan tray, right to left air flow

NAT-MCH-202201

NAT-MCH-Base12-GbE-SSCH-PCIx48-FP1D

NAT-MCH-PHYS

NAT-MCH, 16 GbE, PCIe x4, special physics clock module, double full-size

NAT-PM-AC600D

600W N.A.T. power module, AC, double full size

NAT-PM-AC1000

1000W N.A.T. power module, AC, double full size

PS-1000W-M.4-AC

1000W Wiener power module, AC, double full size

NAT-PM-DC840

840W N.A.T. power module, DC, full size

MTCA-6P-PH6

2UE 19" 6-Slot MTCA.4 StarterKit with NAT-MCH-PHYS, front to left air flow

MTCA-6P-PH8

2UE 19" 6-Slot MTCA.4 StarterKit with NAT-MCH-PHYS, right to left air flow
