RackPak/M7-40 MicroTCA.4 Crate with RTM Slots

6 double mid size AMC slots and one double full size AMC slot. 6 double mid size transition module slots and one double full size transition module slot are also available. The Schroff 5U MicroTCA.4 crate is compliant to the xTCA specification PICMG MicroTCA.4 R1. The system has one MCH and one power module slot. The dust filter are exchangeable.

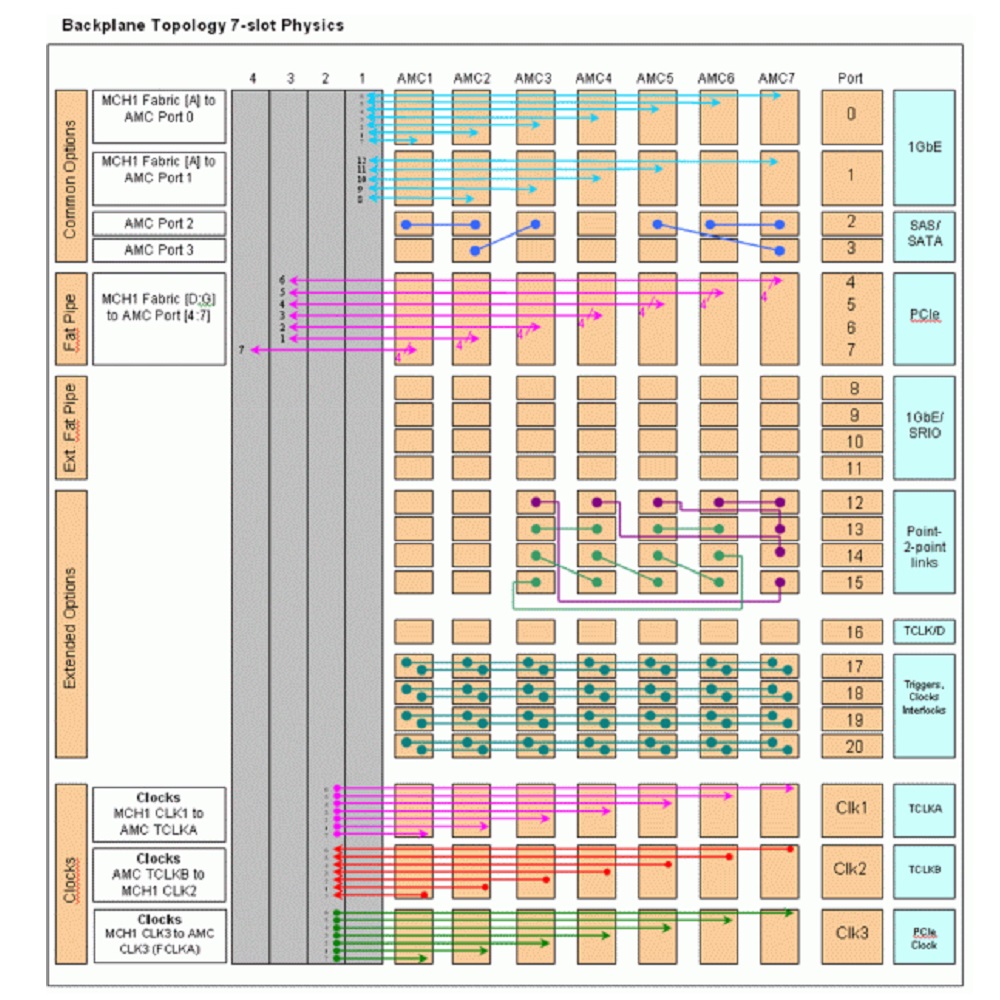

The backplane offers point-to-point SAS/SATA and fabrics connections between AMCs.


Technical Description

  • 5U MicroTCA.4 crate, front handles, PICMG MicroTCA R1.0 and PICMG MTCA.4 R1.0 compliant
  • 1 double full size AMC slot
  • 6 double mid size AMC slots
  • 1 double full size Rear Transition Module slot
  • 6 double mid size Rear Transition Module slots
  • Power module slot
  • MCH slot
  • Hot swapp fan unit
  • Dust filter, exchangeable
  • System depth: 373.30 mm
  • Operating temperature range -5 .. +45°C
  • 2 years warranty

Order Information


MTCA.4 system with 6 double mid-size AMC slots and 6 double mid-size RTM slots
