RackPak/M9-01 MicroTCA System for 9 full size AMC-Modules

9 full size AMC slots with Dual-Star topology. The system has two MCH and two PM slots. The chassis is completely assembled. Special configurations will be available.

Schroff's RackPak/M9-01 6U MicroTCA™ system has two hot-swap fan modules. One cooling unit comes with Telco alarms and one cooling unit comes without Telco alarms. The cooling concept provides an air flow from bottom front to rear top. The air filters are exchangeable from the front.


Technical Description

  • 6U/84HP MicroTCA crate, PICMG MicroTCA R1.0 compliant
  • 9 full size AMC slots
  • Two power module slots
  • Two MCH slots
  • Two hot-swap fan modules with cooling unit manager (CU EMMC), bottom cooling unit with Telco alarms
  • Airflow from bottom front to rear top
  • Air filter exchangeable from the front

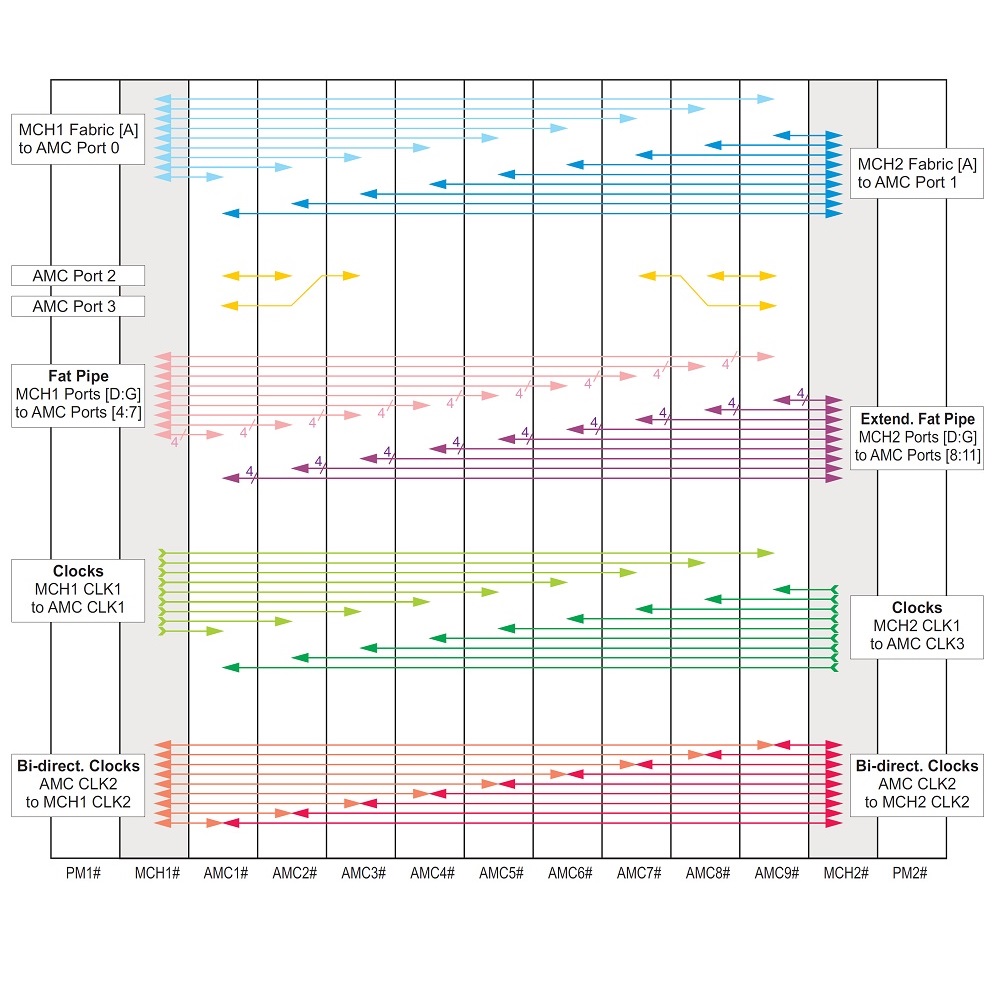

  • MTCA backplane with Dual-Star technology
  • System depth: 197 mm
  • Operating temperature range 5..45°C
  • 2 years warranty

Order Information


MicroTCA system with 9 full size slots


Cooling Unit with Telco Alarms


Cooling Unit without Telco Alarms


12V Power Feedthrough Module

Technical Documentation

RackPak/M9-01 User Manual
