Small Rugged Computer System

The SRCS system designed by powerBridge Computer is a rugged high performance small form factor computer for tough environments. Requiring only 5”x 5” base area the enclosure has the smallest possible footprint fitting perfectly into applications with limited space, but is also as a VITA 75 compliant version available. The SRCS system is intended for use in land, air and marine applications. The lightweight compact and fully sealed case operates fanless, resists contamination and humidity with its IP67 prevention and is shock and vibration protected up to 40G according to MIL-STD-810-G. The SRCS operates in a temperature range from -40 up to +70 °C allowing up to 45W power dissipation at 45°C. An external 9-36V DC power supply is required.

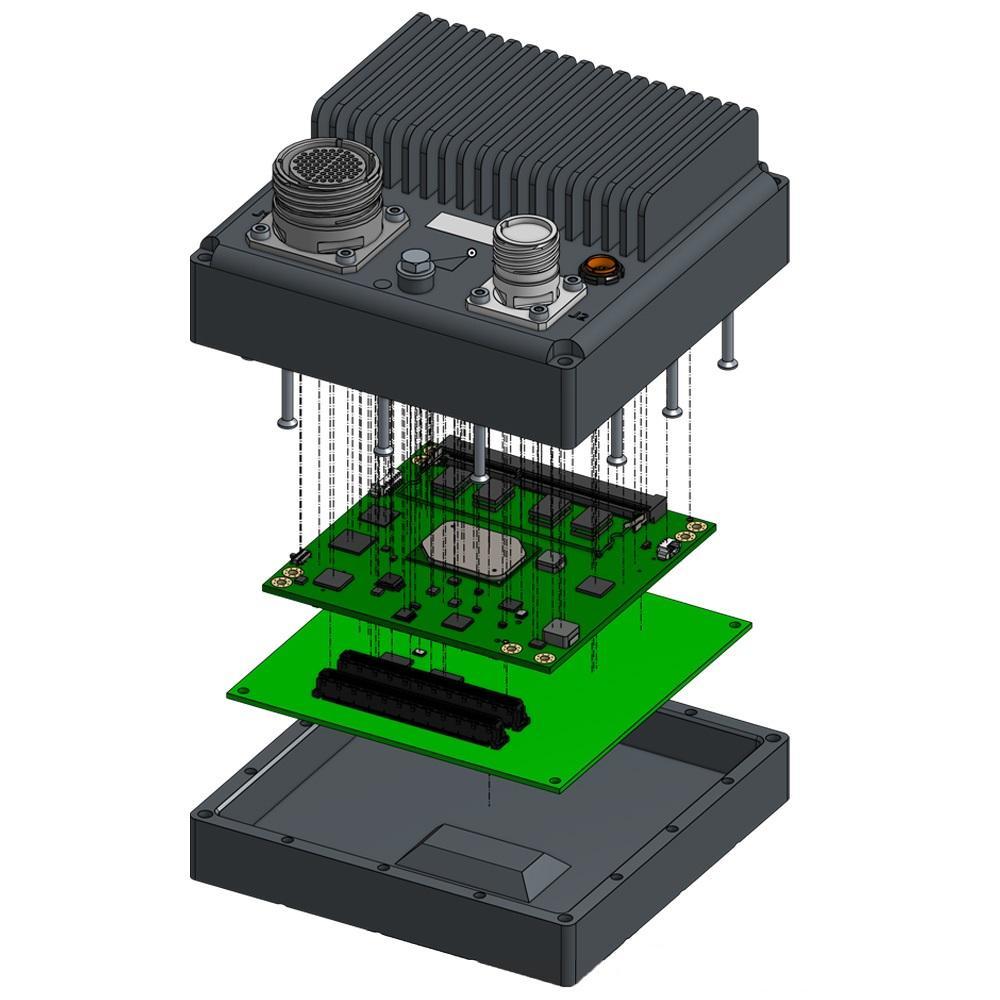

The internal computing platform comes in form of a ComExpress type 6 module and is expandable with additional features when required. Also two Mini-PCIe module slots are available for custom options. SSD storage up to 2 TB can be configured. All interfaces are routed to a MIL 38999 circular connector, and optional a separate USB 3.0 and an antenna connector is provided. The inside chassis surface is colorless passivated, the outside is either powder-coated or anodized.

The SRCS system perfectly fits in new designs as also in retrofit solutions. Due to the ComEx form factor it is easily adaptable to different application requirements and future-proof.

Microsft Windows 10 (64bit) and WindRiver Linux (64bit) are supported.


Technical Description

  • Small Rugged Computer System, opt. VITA 75 compliant
  • Quad core 1,6GHz (turbo boost 2,0 GHz) Intel Atom x7-E3950, 2MB L2 cache
  • 8GB DDR3L-1866 non-ECC DRAM
  • Optional 32GB eMMC
  • Up to 2TB M2 NVMe module 2280
  • SD slot onboard
  • 2 external SATA Gen3 channels
  • Intel HD500 graphics with:
    • Hardware decoding of HEVC (H.265), H.264, MVC, VP8, VP9, MPEG2, VC-1, WMV9 and JPEG/MJPEG
    • Hardware encoding of HEVC (H.265), H.264, MVC, VP8, VP9 and JPEG/MPEG
  • 2 DDI DisplayPorts 1.2, DVI, HDMI 1.4b and eDP 1.3
  • 2 Gigabit Ethernet interfaces
  • HD audio interface
  • 4 USB ports, 3 USB 2.0 ports and one USB 3.0 port via separate connector
  • 2 RS232/422/485 ports
  • CAN interface
  • 4 GPIO ports
  • SPI, I2C and SMbus
  • Optional GPS, GSM and WiFi
  • AMI BIOS with TPM 2.0
  • 9 … 36V DC power input
  • Power consumption: 40W max at 55°C, 45W at 45°C depending on configuration
  • IP67 ingress protection
  • MIL-STD-810-G operating shock and Vibration
  • Dimension: 127 x 127 x 62mm, < 1dm3
  • Less than 1,3kg weight, depending on configuration
  • -40°C .. +70°C operating temperature range, convection and cold plate conduction
  • 2 years warranty

Order Information


Small Rugged Computer System

Technical Documentation

SRCS data sheet
