TAMC890 16 Channel 10/100/1000BaseTX Ethernet Switch

16 channel gigabit Ethernet switch. The Ethernet network interface is compliant to IEEE 802.3ab for 10BaseT, 100BaseTX and IEEE 802.3ab for 1000BaseT via CAT5 TP cable. Full and half duplex are supported. The auto-sensing and auto-negotiation function detect and configure automatically the data rate and the duplex mode. The layer 2 switch is unmanaged.

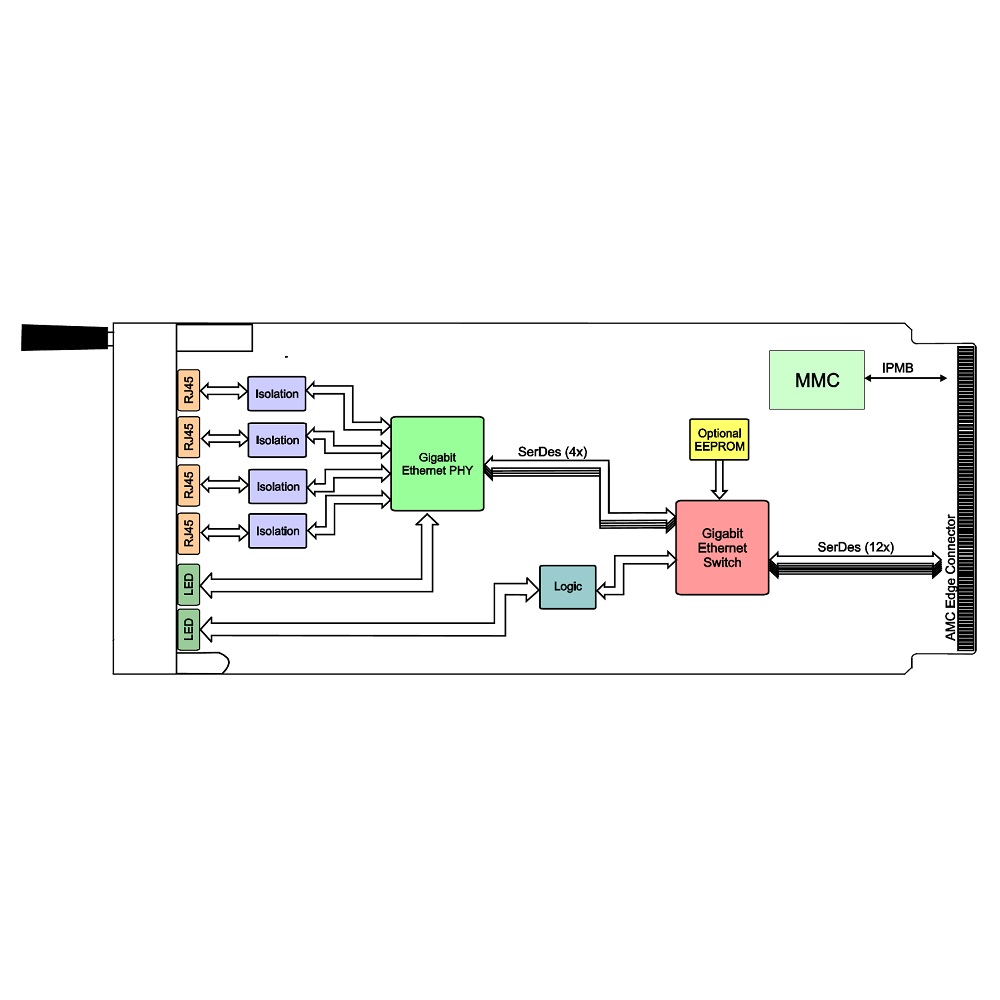

A Broadcom BC5396 Gigabit Ethernet switch is used by the TEWS TAMC890 module. Four ports are available on the front panel and 12 ports on the backplane. The module is full compliant to AMC.2 standard.

ORDER NOW

TECHNISCHE BESCHREIBUNG

proimg1
  • 16 channel 10/100/1000BaseTX Ethernet switch
  • AMC module with AMC.2 type E2, type 4 interface, mid size form factor
  • 6 add. GbE ports on AMC ports 12-17
  • Broadcom BC5396 switch chip set
  • 4 RJ45 ports on the front panel
  • Auto-sensing and auto-negotiation for data rate and full/half duplex mode
  • Plug-and-Play compatibility with AMC complaint host systems
  • Automatic MAC Address Management
  • 9KB jumbo frames
  • 4K VLAN
  • Low power
  • 5 years warranty

Bestellbezeichnungen

TAMC890-10R

16 channel GbE Ethernet switch, mid-size

TAMC890-11R

16 channel GbE Ethernet switch, full size
