TCP262 6U CompactPCI Dual PMC Carrier Board

6U CompactPCI carrier board for two PMC modules. The TEWS Technologies TCP262 supports standard PMC front I/O and CompactPCI rear I/O which are fully compatible with the TCP260. The rear I/O of the TCP262 takes place via the J3 and J5 connectors.

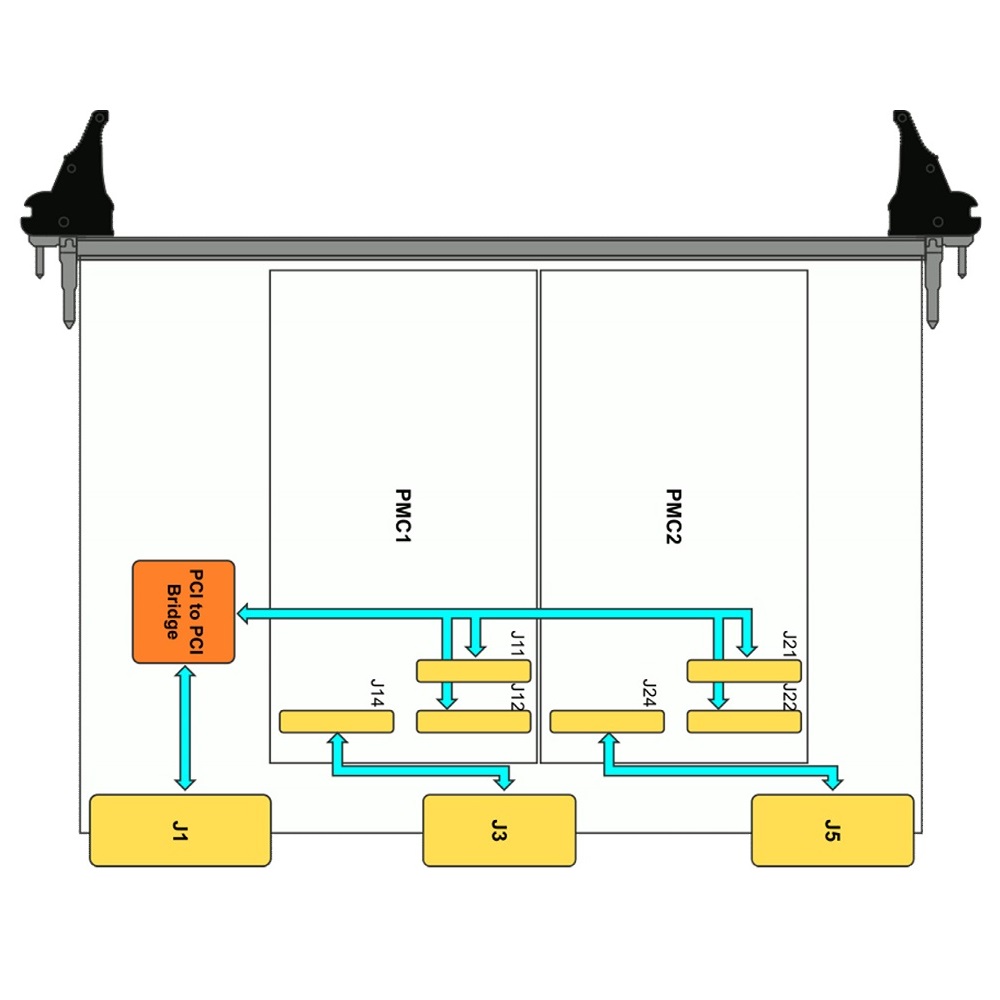

The Texas Instruments PCI2050 PCI-to-PCI bridge provides the real connection between primary CompactPCI bus and the two secondary PMC slots. The TCP262 supports standard PMC front I/O and for both PMC slots CompactPCI rear I/O. PMC site 2 is routed to CompactPCI connectors J5. PMC site 1 is routed to CompactPCI connector J3. The card is PICMG 2.0 Rev. 3.0 and PCI 2.2 compatible and supports 5V and 3.3V signaling.


Technical Description

  • 6U CompactPCI board, PICMG 2.0 R3.0 compliant, 32-bit 33/66MHz PCI interface, PCI 2.2 compliant, 5V and 3.3V Vio
  • Two 32-bit 66MHz PMC sites for IEEE 1386.1 compliant modules
  • Front panel I/O and rear I/O via J3 and J5
  • Texas Instruments PCI2050 32-bit PCI-to-PCI bridge
  • -40°C .. +85°C operating temperature range
  • 5 years warranty

Order Information


6HE CPCI 2 port PMC carrier board with J3/J5-I/O and 5V PMC VIO

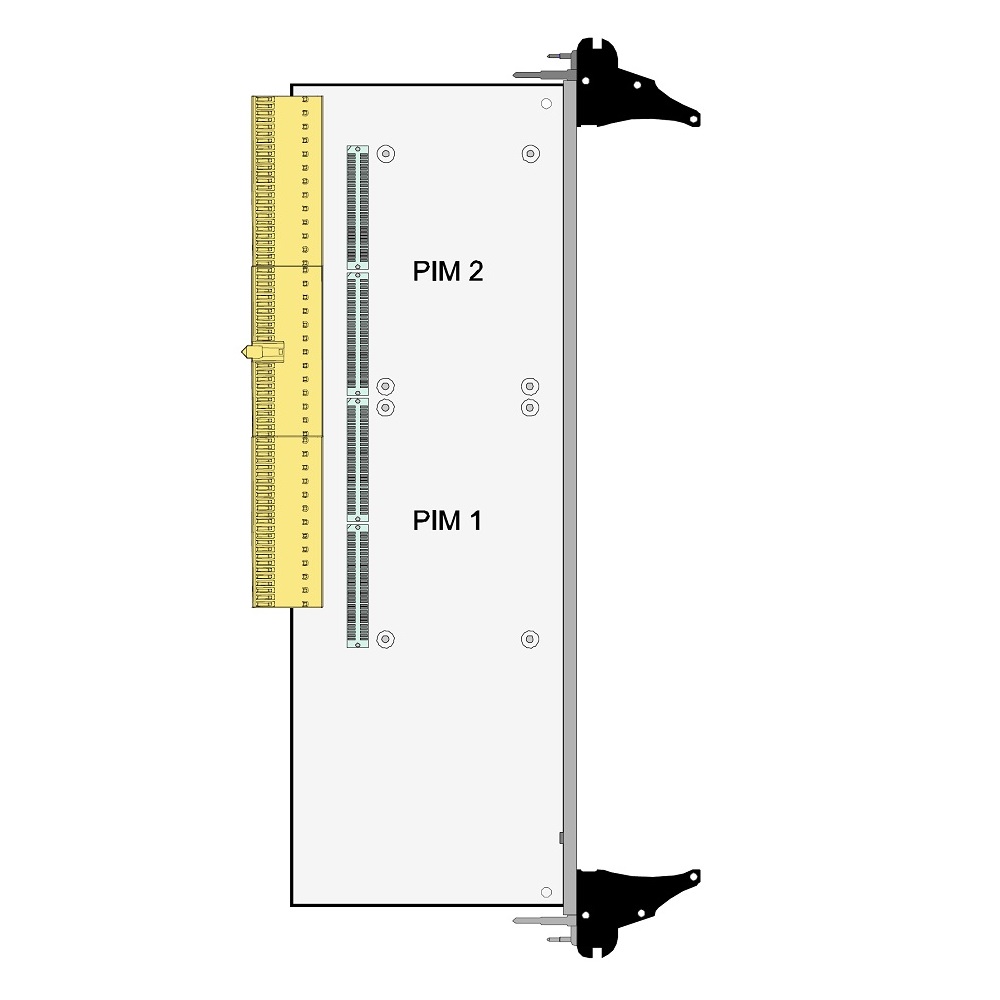

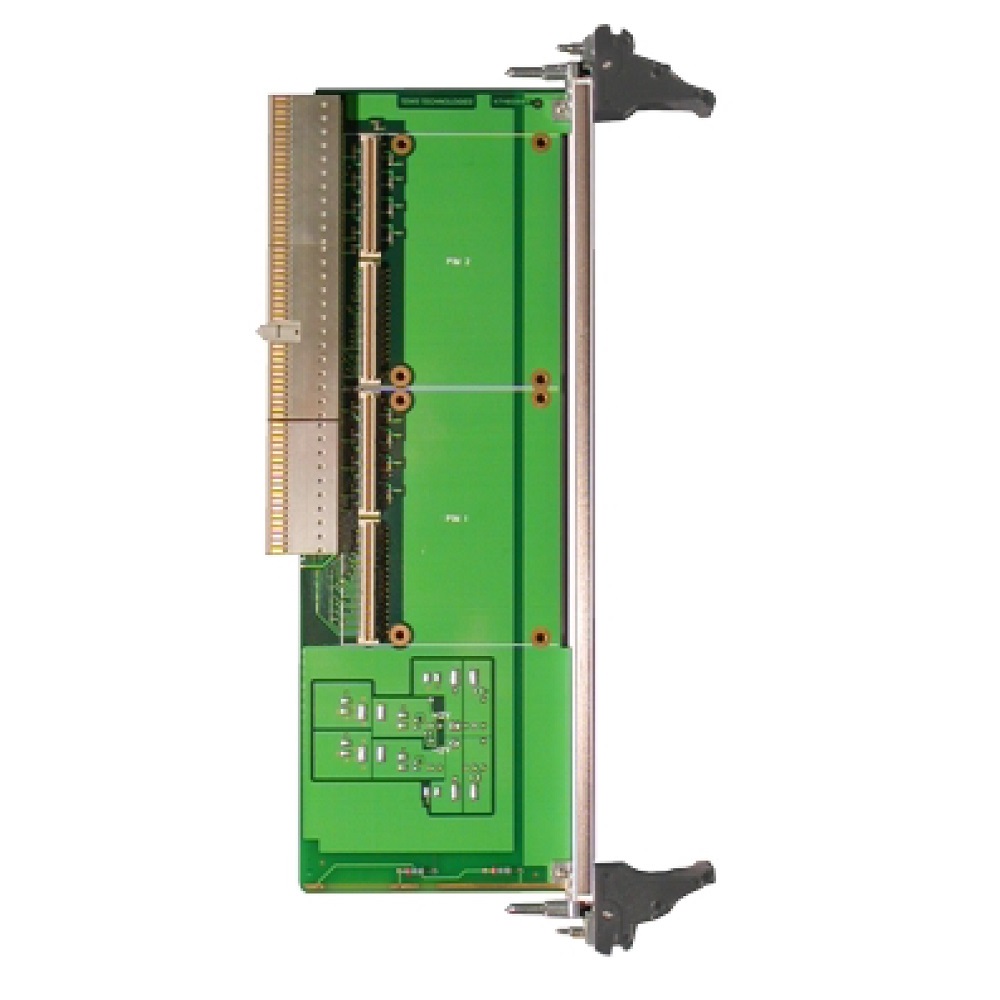

6U cPCI transition module with 2 PIM slots

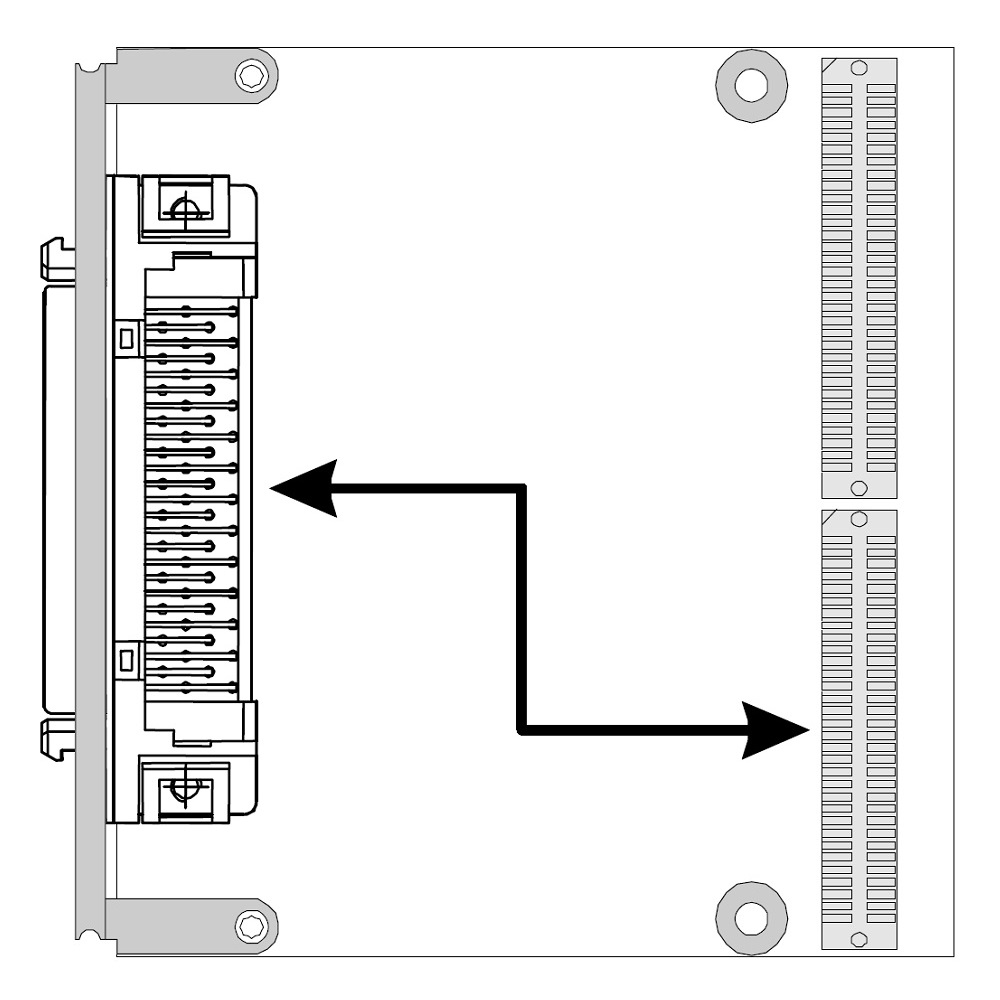

PIM module with 50 pin SCSI-2 like connector

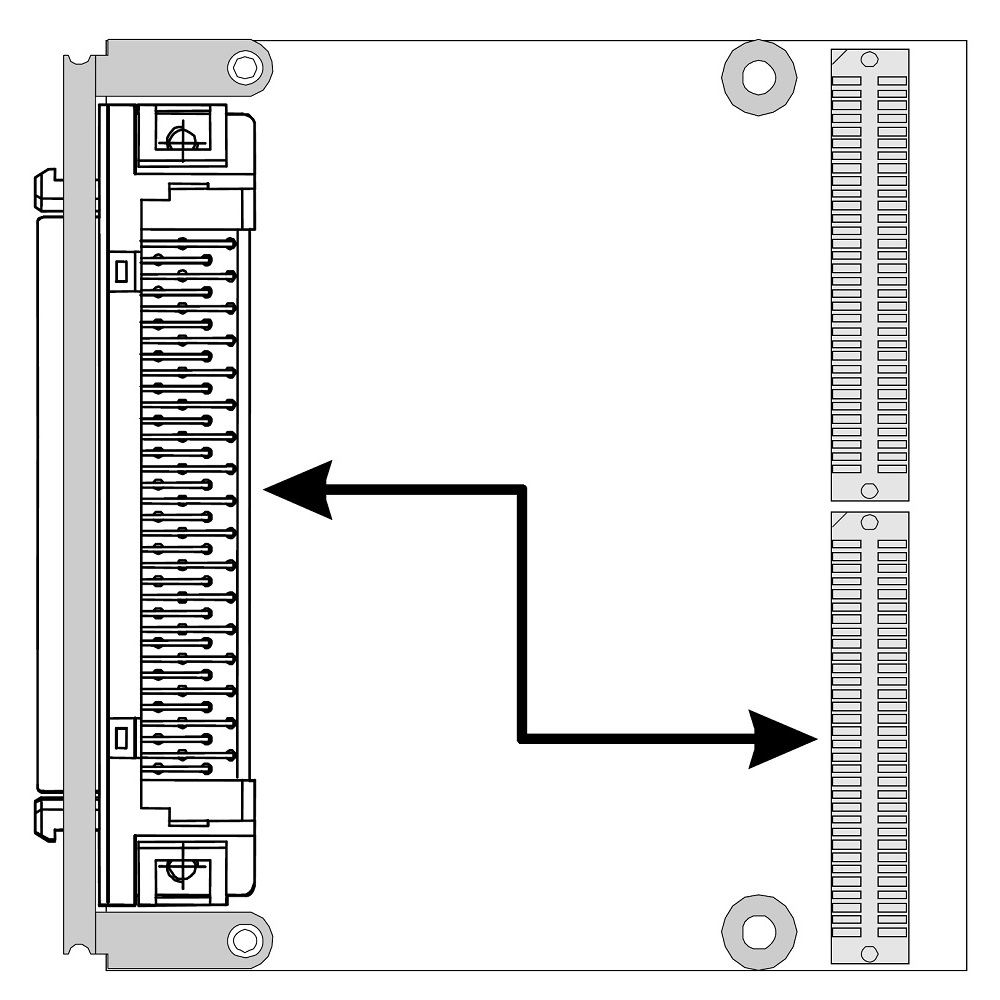

PIM module with 68 pin SCSI-3 like connector

Technical Documentation

TCP262 data sheet

TCP262 user manual

TPIM001 data sheet

TPIM001 user manual

TPIM002 data sheet

TPIM002 user manual

TCP020-TM data sheet
