TP 792/311-RC 3U CompactPCI Intel Core i Gen. 11 CPU Board with 8GB RAM and XMC Slot

3U CompactPCI conduction-cooled CPU board with a 2-core 1.7 GHz Intel® Core i3-1115GRE processor, integrated Intel® Advanced Vector Extensions AVX-512 and Intel® Vector Neuro Network Instructions (VNNI). The board has 8 GB soldered DDR4 ECC SDRAM.

The CONCURRENT Technologies TP 792/311-RC offers one XMC slot, two 10Gigabit Ethernet ports, one SATA 3Gbit/s port, 2 USB 2.0 ports, 4 GPIO ports, one RS232 and one additional RS232 port or one RS422/485 port. In addition one optional flash disk module is available.

The board supports Linux distributions.

ORDER NOW

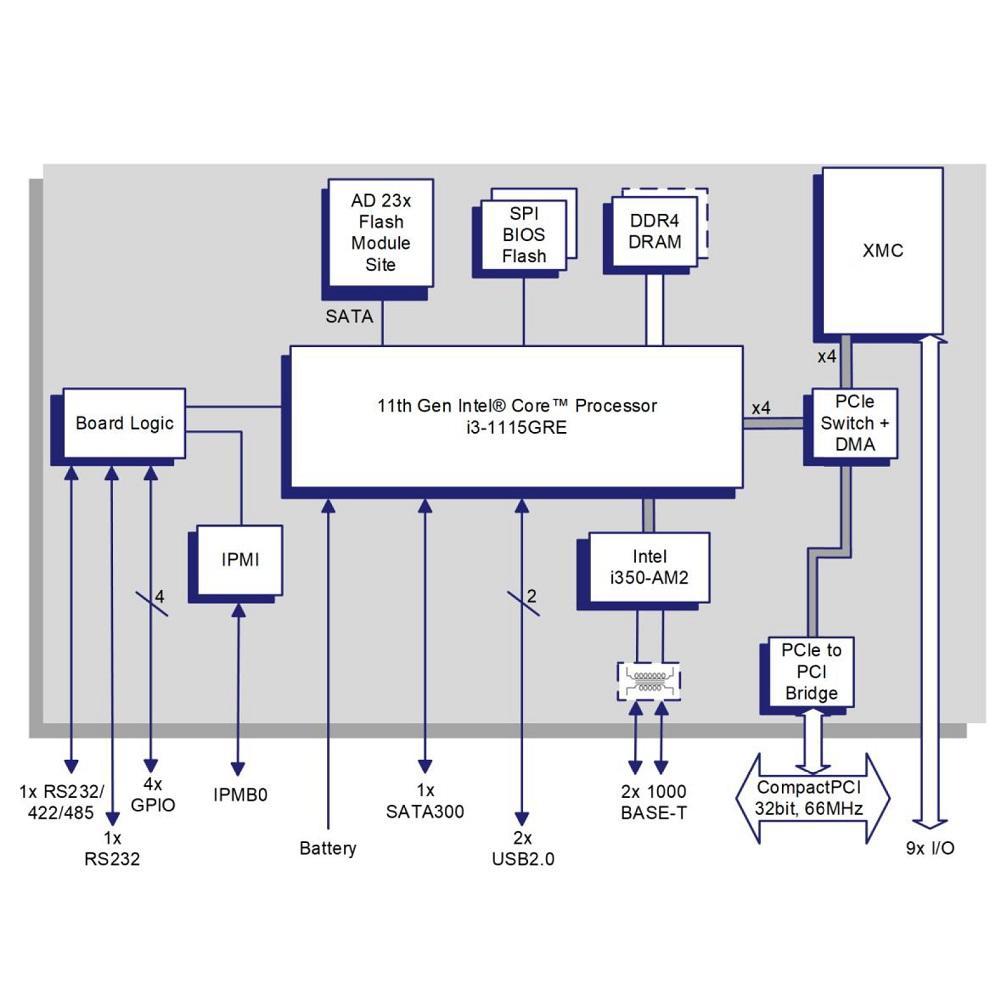

Technical Description

proimg1
  • 3U/4HP CompactPCI universal slot CPU board, PICMG 2.1 R2.0 hot-swap, PICMG 2.9 R1.0, 32-bit/33/66 MHz cPCI bus interface, 3.3/5 Vio
  • Optional satellit mode
  • 2-core 1.70 GHz Intel® Core™ i3-1115GRE
  • Intel® Advanced Vector Extensions AVX-512 and Intel® Vector Neuro Network Instructions (VNNI)
  • 8GB DDR4-2666 IBECC SDRAM, soldered
  • Two 32 MB BIOS SPI Flash EPROMs
  • One XMC slot with PCIe x4 link, VITA 42
  • Two 1000Base-T/100Base-TX ports via J2, Intel i350-AM2
  • Optional one flash disk module
  • One SATA 3 Gbit/s port via J2
  • Two serial ports via J2:
    one RS232 port with Tx and Rx,
    one RS232 port with Tx, Rx, RI, CTS, RTS, DSR, DTR and DCD or
    one RS422/RS485 port with Tx and Rx
  • 2 USB 2.0 port via J2
  • 4 GPIO ports via J2
  • UEFI 2.7 BIOS with secure boot, LAN Boot Firmware, Intel Boot Guard, opt. Fast Boot solution using the Intel Firmware Support Package (FSP)
  • Watchdog, real-time clock and 32-bit counter
  • Onboard Board Management Controller (BMC)
  • Conduction-cooled, -40°C .. +85°C operating temperature range
  • 2 years warranty

Order Information

TP_792/311-RC

3U/4HP CPCI Core i3-1115GRE CPU board, 8GB RAM, conduction cooled

AD 231/10x

Flash Disk Module

Technical Documentation

TP_792/311-RC-DS

TP 792/311-RC Data Sheet
