TP CR1/XMC

TP CR1/XMC 3U CompactPCI XMC Carrier Board

3U CompactPCI carrier board for one XMC module. The CONCURRENT Technologies TP CR1/XMC provides front I/O and rear I/O. This XMC to 3U CompactPCI adapter is used to build modular, flexible and cost effective I/O solutions with XMC devices in CompactPCI systems.

32 bit 33/66 MHz accesses are supported on the PCI bus. The TP CR1/XMC is used as a mechanical adaptor to connect a standard XMC module in 3U CompactPCI systems. The TP CR1/XMC supports XMC front I/O and optional CompactPCI rear I/O at CompactPCI connector J2/Pn4. The pin assignment corresponds to the PICMG 2.3 R1.0 on CompactPCI signal mapping. The use of XMC I/O on the J2/Pn4 connector precludes the use of 64 bit CompactPCI backplanes. The TP CR1/XMC carrier complies with the PICMG 2.0 Revision 3.0 CompactPCI specification.

ORDER NOW

Technical Description

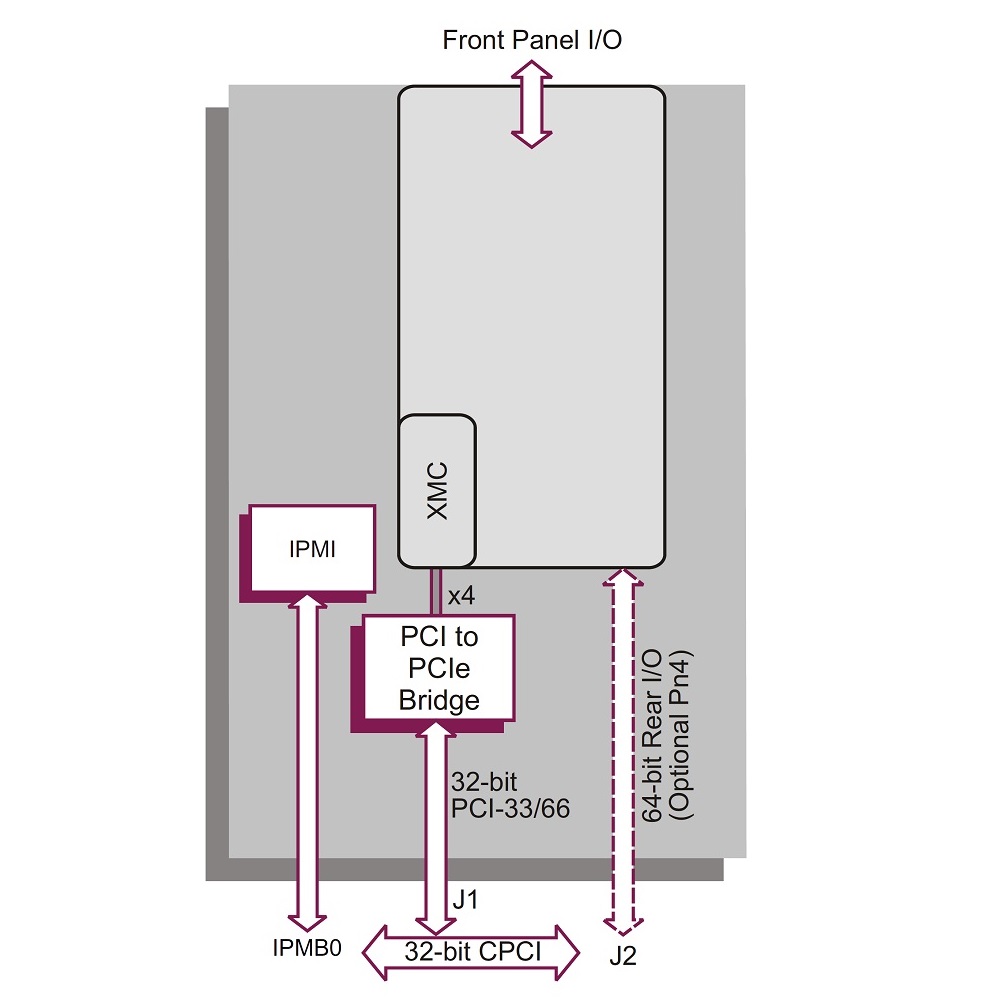

proimg1
  • 3U CompactPCI board, PICMG 2.0 R3.0 compliant, 32-bit 33/66MHz PCI interface, PICMG 2.3 R1.0, PICMG 2.9 R3.0, cPCI signal mapping, 3.3/5V Vio
  • One 32-bit 33/66MHz XMC site for IEEE 1386-2001 und IEEE 1386.1-2001 compliant modules with front panel I/O, opt. rear I/O via J2/Pn4
  • PCIe x1, x2 and x4 Gen1 support
  • Onboard baseboard management controller
  • Monitors board voltages and status indicators
  • 8KB non-volatile memory
  • In 3 environmental classes available: standard (0°C .. 55°C), extended (-25°C .. +70°C) and conduction-cooled (-40°C .. +85°C)
  • 2 years warranty

Order Information

TP_CR1/XMC

XMC carrier board with front panel I/O

TP_CR1/XMC

XMC carrier board with front panel and J2/Pn4 I/O

TP_CR1/XMC-RC

XMC carrier board, conduction-cooled

Technical Documentation

TP_CR1/XMC data sheet

TP_CR1/XMC-RC data sheet
