TP MS1/xxx 3U CompactPCI SATA Storage Board

3U CompactPCI SATA storage board that provides one CompactFlash type 1 module and up to four 2.5" SATA-300 drives. Up to two SATA drives and the CompactFlash module can be mounted on the CONCURRENT Technologies TP MS1/xxx. The expansion board can accommodate up to two additional SATA RAID drives. The controller board can be used in a variety of CompactPCI systems with 32/64-bit 33/66 MHz backplanes with 3.3V or 5V signalling.

The TP MS1/xxx is available with a -25°C .. +70°C and -40°C .. +85°C operating temperature range. This 3U CompactPCI mass storage solution is used to build modular, flexible and cost-effective I/O solutions with SATA drives in CompactPCI systems.

ORDER NOW

Technical Description

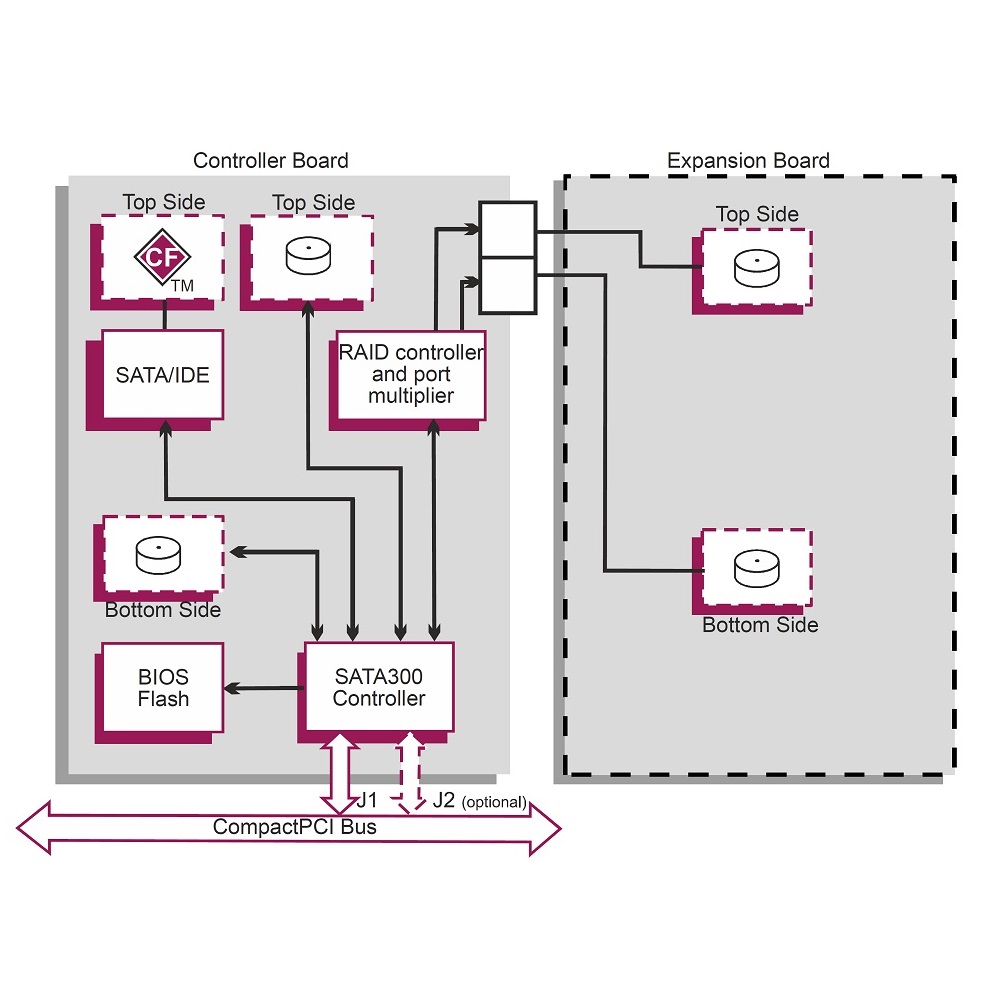

proimg1
  • 3U 4HP/8HP CompactPCI board, PICMG 2.0 R3.0 compliant, 32/64-bit 33/66MHz cPCI interface, cPCI signal mapping, 3.3/5V Vio
  • Up to four 2.5″ SATA-300 drives, two drives on controller board and two drives on expansion board
  • One CompactFlash type 1 module
  • Hardware RAID support for the two drives on the expansion board:
    FAST (RAID 0), SAFE (RAID 1), BIG (drive concatenation), SAFE33 and SAFE50 (SAFE and BIG RAID modes combined)
  • Bus interface via drive controller board
  • Drive expansion board requires power for its drives from backplane P1 connector
  • Requires 1, 2, 3 or 4 CompactPCI 4HP slots
  • In 2 environmental classes available: extended (-25°C .. +70°C) and (-40°C .. +85°C)
  • 2 years warranty

Order Information

TP MS1/xxx-1

3U/4HP cPCI controller board with CF and 1 SATA drive

TP MS1/xxx-2

3U/8HP cPCI controller board with CF and 2 SATA drives

TP MS1/xxx-3

3U/4HP cPCI expansion board for 1 SATA drive

TP MS1/xxx-4

3U/8HP cPCI expansion board for 2 SATA drives

Technical Documentation

TP_MS1/xxx-DS

TP MS1/xxx data sheet
