TPCE261 PCIe x1 PMC Carrier

PCIe x1 carrier provides a PMC site with front panel/rear I/O and allows the use of PMC modules in PCIe based calculators - e.g. in systems for applications like process control, medical systems, telecommunication and traffic control. The TPCE261 works with 3.3V and 5V signalling voltage.

The TPCE261-1xR uses the +12V of the PCIe edge card connector to generate all power supply voltages for the PMC slot. According to the PCIe specification, a PCIe x1 card is limited to 6W on the +12V.

The TPCE261-2xR offer a PCIe graphics power connector for increased power requirements to supply the +12V for generating all the power supply voltages for the PMC slot providing power of up to 25W.

The P14 I/O lines of the PMC site are conducted via a 68-pin ERNI SMC 1.27mm flat cable connector to the right edge of the board.

ORDER NOW

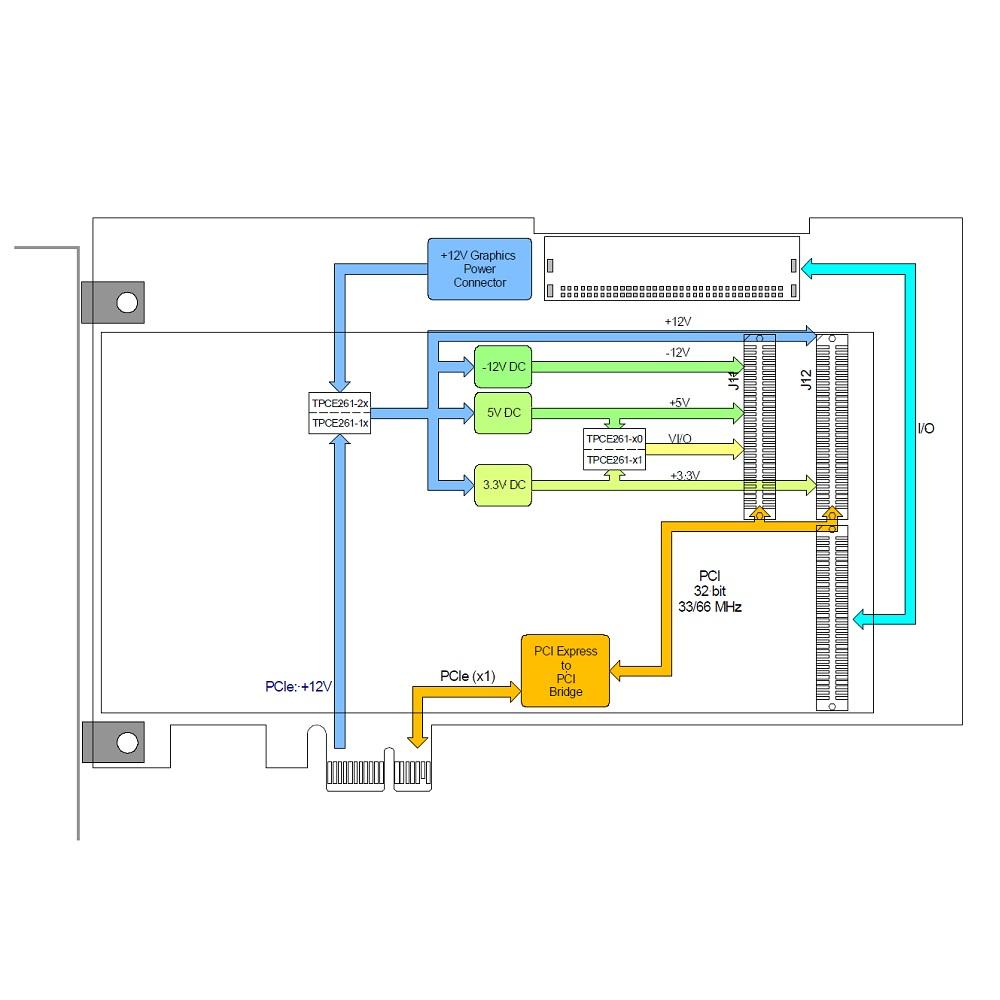

Technical Description

proimg1
  • PCIe board, PCIe x1 Rev. 2.0 interface
  • A 32bit 33/66 MHz PMC site with FP/P14 I/O
  • 3.3V or 5V PCI Vio
  • All PMC power supplies generated from +12V:
    TPCE261-1xR from PCIe edge card connector
    TPCE261-2xR from PCIe graphics power connector
  • P14 I/O via 68pin ERNI SMC connector
  • -40°C .. +85°C operating temperature range
  • 5 years warranty

Order Information

TPCE261-10R

PCIe x1 carrier for 1 PMC module, 5V, +12V power supply from PCIe connector

TPCE261-11R

PCIe x1 carrier for 1 PMC module, 3.3V, +12V power supply from PCIe connector

TPCE261-20R

PCIe x1 carrier for 1 PMC module, 5V, +12V power supply via PCIe graphics power connector

TPCE261-21R

PCIe x1 carrier for 1 PMC module, 3.3V, +12V power supply via PCIe graphics power connector

Technical Documentation

TPCE261 data sheet

TPCE261 user manual
