TPCE275 PCIe-to-XMC Adapter Board

PCIe card provides a XMC site with front panel/rear I/O. The TPCE275 board allows the use of XMC modules in PCIe based calculators - e.g. in systems for applications like process control, medical systems, telecommunication and traffic control.

The board supports XMC front I/O, P14 and P16 rear I/O. The P14 I/O lines of the XMC site are conducted via a VME P2 style connector (IEC 60603-2) to the right edge of the board. The P14 I/O is VITA-35 compliant. The P16 I/O is available via two 50pin connectors.

The TPCE275 is available in two different VPWR (voltage power) versions. The TPCE275-x0 version provides 12V VPWR and the TPCE275-x1 has 5V VPWR.

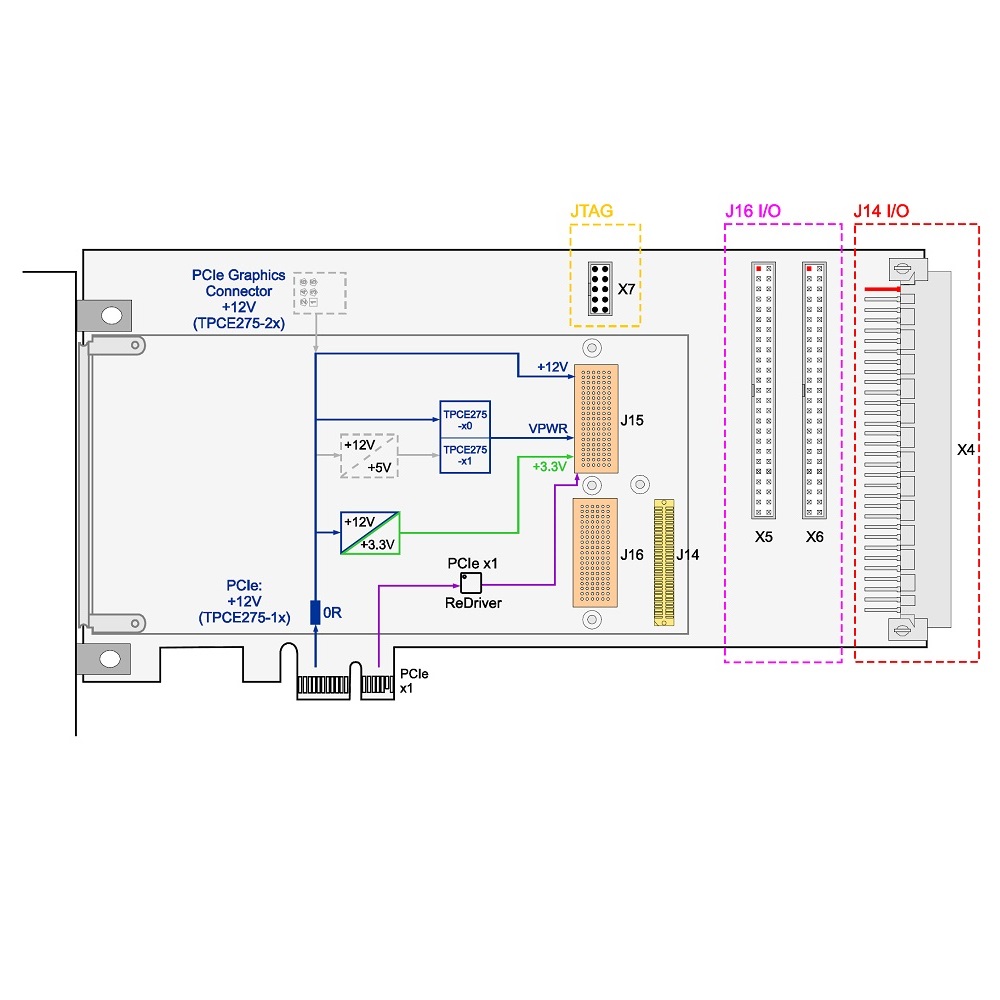

The TPCE275-1x uses the +12V of the PCIe edge card connector to generate all power supply voltages (+3,3V, VPWR, +12V) for the XMC slot. According to the PCIe specification, a PCIe x1 card is limited to 6W on the +12V.

The TPCE275-2x offer a PCIe graphics power connector for increased power requirements to supply the +12V for generating all the power supply voltages for the XMC slot providing power of up to 25W.

ORDER NOW

Technical Description

proimg1
  • PCIe board, PCIe x1 interface
  • One XMC site with FP/P14/P16 I/O
  • 5V or 12V VPWR
  • P14 I/O via VME P2 style connector (IEC 60603-2)
  • P16 I/O via two 50pin connectors
  • 0°C .. +70°C operating temperature range
  • 5 years warrant

Order Information

TPCE275-10R

PCIe-to-XMC carrier, VPWR: 12V, +12V power supply from PCIe connector

TPCE275-11R

PCIe-to-XMC carrier, VPWR: 5V, +12V power supply from PCIe connector

TPCE275-20R

PCIe-to-XMC carrier, VPWR: 12V, +12V power supply via PCIe graphics power connector, 2x 5.25" to 6-pin adapter cable included

TPCE275-21R

PCIe-to-XMC carrier, VPWR: 5V, +12V power supply via PCIe graphics power connector, 2x 5.25" to 6-pin adapter cable included

Technical Documentation

TPCE275-DS

TPCE275 data sheet

TPCE275-UM

TPCE275 user manual
