TPCE276 PCIe x1 Gen2 XMC Carrier
PCIe board provides a XMC site with front panel/rear I/O. The TPCE276 board allows the use of XMC modules in PCIe based calculators - e.g. in systems for applications like process control, medical systems, telecommunication and traffic control.
The board supports XMC front I/O, P14 and P16 rear I/O. The P14 I/O lines of the XMC site are conducted via a Tyco AMPMODU System 50 0.050 x 0.100 connector. The I/O lines are routed differential. The P16 I/O is available via two Samtec QTH-DP 0.50mm Q Pairs® High Speed Ground Plane socket strip, Differential Pair connectors.
The TPCE276 is available in two different VPWR (voltage power) versions. The TPCE276-x0R versions provide 12V VPWR and the TPCE276-x1R have 5V VPWR.

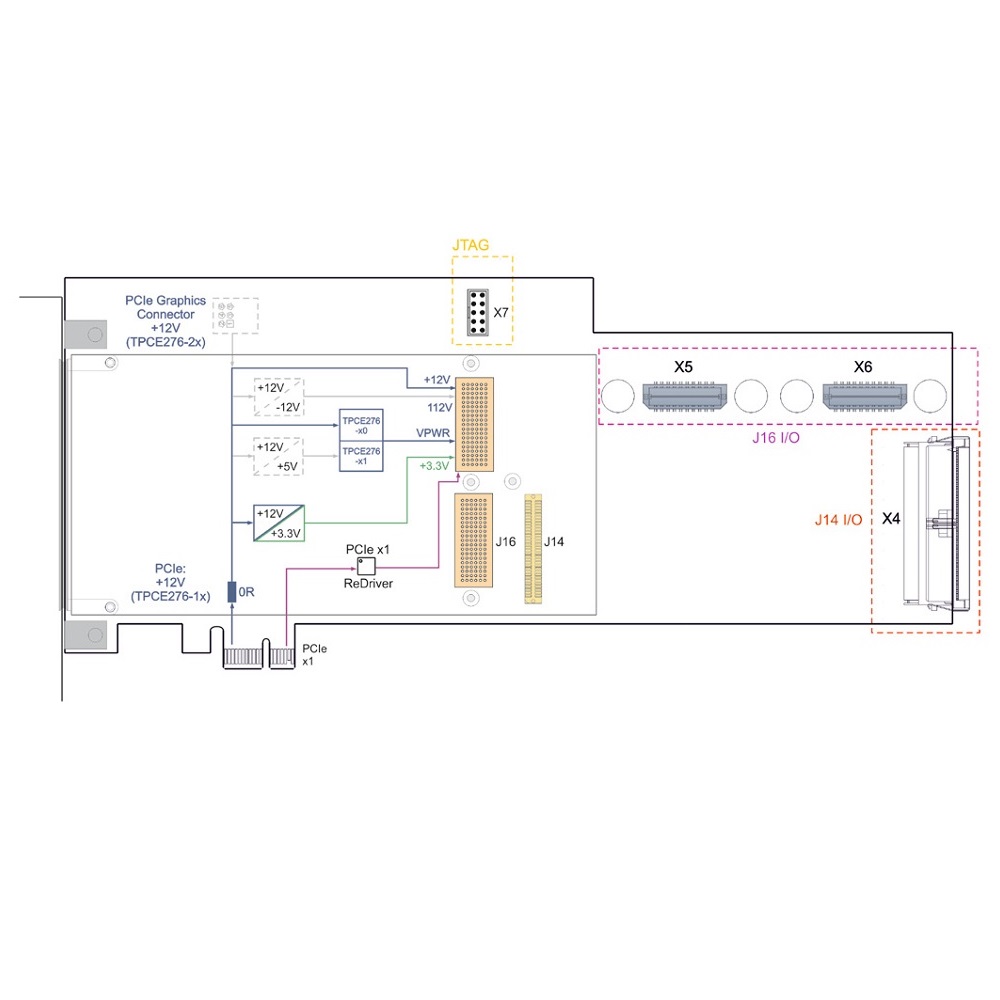

The TPCE276-1xR uses the +12V of the PCIe edge card connector to generate all power supply voltages (+3,3V, VPWR, +12V) for the XMC slot. According to the PCIe specification, a PCIe x1 card is limited to 6W on the +12V.
The TPCE276-2x offer a PCIe graphics power connector for increased power requirements to supply the +12V for generating all the power supply voltages for the XMC slot providing power of up to 25W.
- PCIe board, PCIe x1 Rev. 2.0 interface
- One XMC site with FP/P14/P16 I/O
- 5V or 12V VPWR
- P14 I/O via Tyco AMPMODU System 50 0.050 x0.100 connector
- P16 I/O via two Samtec QTH-DP 0.50mm Q Pairs® High Speed Ground Plane socket strip, Differential Pair connectors
- All XMC Power Supplies generated from +12V:
TPCE276-1xR from PCIe edge card connector
TPCE276-2xR from PCIe graphics power connector
- -40°C .. +85°C operating temperature range
- 5 years warranty
