TPCE636 Reconfigurable FPGA with 16 ADC Input Channels and 16 DAC Output Channels

PCI Express x4 card providing a user configurable Xilinx Kintex-7 XC7K FPGA with 16 ADC input channels and 16 DAC output channels. Each of the 16 ADC input channels of the TEWS Technologies TPCE636 has a 16bit resolution and can work with up to 5 Msps. The analog input circuit is designed to allow input voltages up to ±10V on each input-pin (results in ±20V differential voltage range). Each of the 16 DAC output channels has a 16bit resolution and is designed as a single-ended bipolar ±10V analog output. For customer specific I/O extension or inter-board communication, the TPCE636 provides 64 FPGA I/Os on a back I/O connector and 4 FPGA Multi-Gigabit-Transceiver on a Samtec FireFly© connector. Digital back I/O lines can be configured as 64 single ended LVCMOS25 or as 32 differential LVDS25 interface.

The FPGA is connected to a 1GB DDR3 SDRAM and configured by a serial SPI flash. The SPI flash device is in-system programmable. An in-circuit debugging option is available via a JTAG header for read back and real-time debugging of the FPGA design.

All front I/O lines such as the ADC interface and DAC interface are connected to a 98-pin. Samtec ERF8-049 Rugged EdgeRate Connector.

A wide range of drivers is available: Linux, VxWorks and Windows. All drivers - except the Windows drivers - are supplied as C source code.

ORDER NOW

TECHNISCHE BESCHREIBUNG

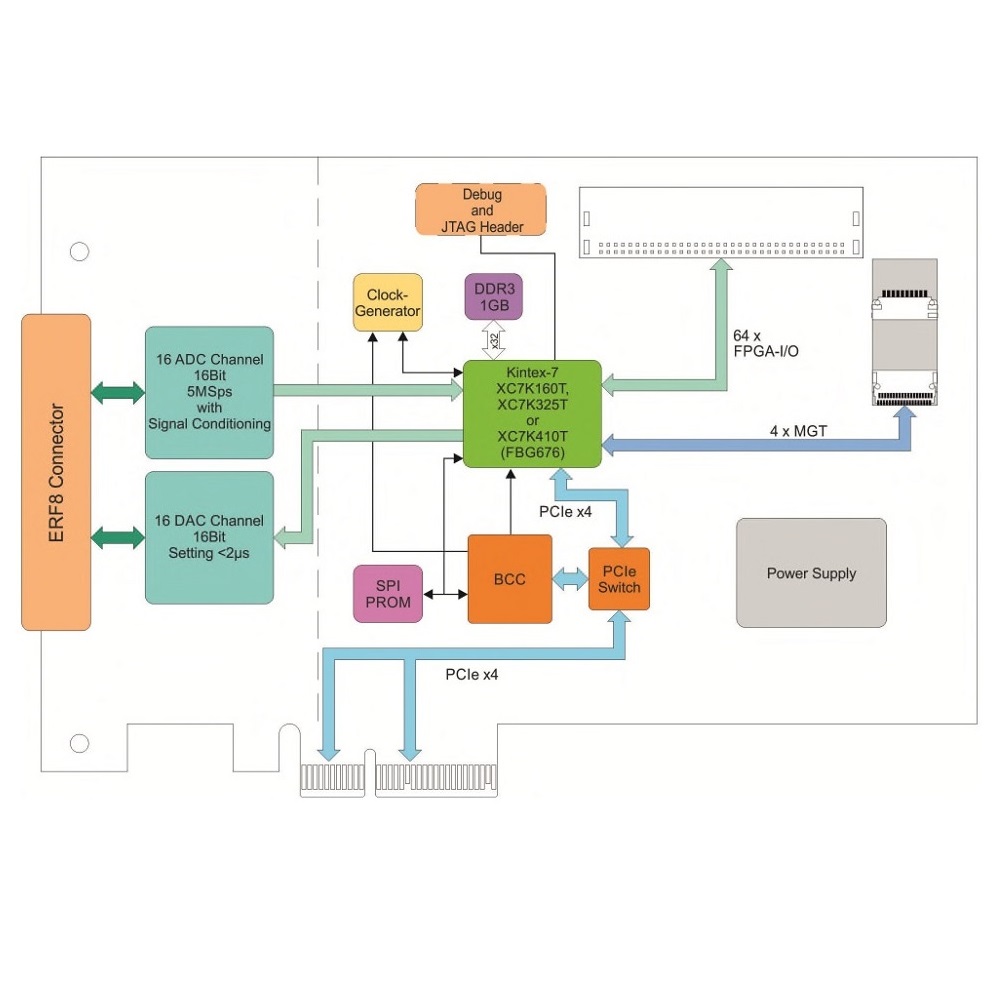

proimg1
  • PCIe x4 Card, PCIe 2.1 ANSI/VITA 42.3-2006 compliant, 153 x 98 mm
  • Xilinx Kintex-7 FPGA
    • TPCR636-10R: Xilinix XC7K160T-2
    • TPCR636-11R: Xilinix XC7K325T-2
    • TPCR636-12R: Xilinix XC7K410T-2
  • Serial Flash for FPGA configuration
  • 1GB DDR3 SDRAM
  • Front I/O lines:
    • 16 16bit diff. analogue inputs with 5 Msps
    • 16 16bit diff. analogue outputs, max. ±10V single ended output
  • Back I/O lines:
    • 64 single-ended or 32 diff. I/O lines via 68-pin ERNI SMC connector
    • 4 FPGA Multi-Gigabit transceiver via a Samtec FireFly connector
  • 98pin. Samtec ERF8-049 Rugged EdgeRate Connector
  • -40°C .. +85°C operating temperature range
  • 5 years warranty

Bestellbezeichnungen

TPCE636-10R

Kintex-7 FPGA XC7K160T-2 PCIe card with 16 analog In and 16 analog out

TPCE636-11R

Kintex-7 FPGA XC7K325T-2 PCIe card with 16 analog In and 16 analog out

TPCE636-12R

Kintex-7 FPGA XC7K410T-2 PCIe card with 16 analog In and 16 analog out

TDRV018-SW-25

Integrity Software support

TDRV018-SW-42

VxWorks Software support

TDRV018-SW-65

Windows Software support

TDRV018-SW-82

Linux Software support

TDRV018-SW-95

QNX Software support

TA310-10R

Cable kit for modules with Samtec ERF8-049 connector

TECHNISCHE DOKUMENTATION

TPCE636 data sheet

TPCE636 user manual

VxWorks driver user manual

Linux driver user manual
