TR B12/msd 3U VPX CPU Board with Intel Core i7 Generation 4 Processor, up to 16 GB RAM and XMC Site

3U VPX CPU board with an up to 2.4 GHz Quad Core Intel Core i7-4700EQ processor. The board is based on Intel's QM87 express controller. Up to 16 GB DDR3L-1600 ECC SDRAM are soldered on the board. 128 KB MRAM (MagnetoResistive RAM) are available.

The CONCURRENT Technologies TR B12/msd offers one VITA 42.0, VITA 42.3, and VITA 46.9 XMC site, VGA port, two SATA 6Gbit/s ports, two 1000Base-BX or GbE ports, one RS-232/422/485 port, two USB 2.0 ports, 3 GPIO ports, and one PCIe x8 or two PCIe x4 or four PCIe x2 ports. Opt. up to three RS-232 ports, one USB 3.0 port, one DVI-D port, one HD audio port, two additional SATA 6Gbit/s ports and three GPIO ports via P2 are available. The front panel offers up to three RS-232, one Gigabit Ethernet, one USB 3.0 and one DisplayPort or front I/O from the XMC module.

The board supports Microsoft Windows 8, Windows Embedded Standard 8, Windows 7, Windows Embedded Standard 7, QNX, Linux, and VxWorks.

The TR B12/msd is available in standard operating temperature range and in conduction-cooled.


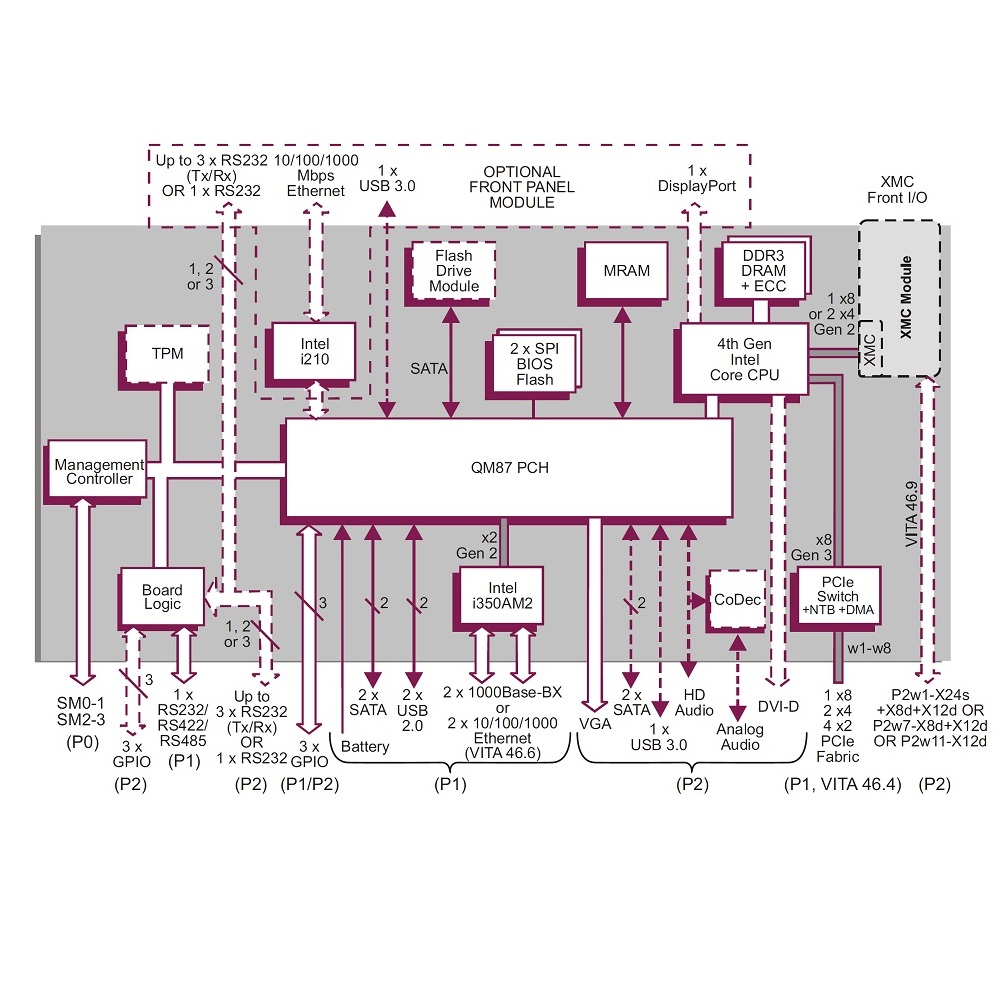

Technical Description

  • 3U/4HP VPX CPU board, VITA 42.0, VITA 42.3, VITA 46.0, VITA 46.4, VITA 46.6, VITA 46.9, VITA 65, VITA 47.0, VITA 48.0, VITA 48.2, and OpenVPX compliant
  • Quad core 2.4 GHz Intel Core i7-4700EQ CPU, 6MB L3 cache,
    Quad core 1.7 GHz Intel Core i7-4700EQ CPU, 6 MB L3 cache
  • Intel QM87 express controller
  • Up to 16 GB ECC 1600 MHz DDR3L RAM
  • 8 MB BIOS flash
  • 128 KB MRAM (MagnetoResistive RAM)
  • Opt. one XMC site, VITA 42.0, VITA 42.3, front- and rear-I/O (VITA 46.9)
  • 3 independent graphics interfaces, front panel DisplayPort, DVI-D and VGA via P2, DirectX 11 and OpenGL 2.0 support
  • Up to four SATA 6Gbit/s ports, two ports via P1 and opt. two ports via P2
  • Opt. onboard flash
  • Two 1000Base-BX or Gigabit Ethernet ports VITA 46.6 via P1, Intel i350AM2
  • One RS-232/422/485 Port via P1
  • Opt. up to 3 RS-232 front panel ports or via P2
  • 3 USB ports, 2 USB 2.0 ports via P1 and 1 front panel USB 3.0 port or via P2
  • Up to 6 GPIO ports, 3 ports via P1 and P2, opt. 3 ports via P2
  • One GbE, one USB 3.0, one RS-232 and one front panel DisplayPort or XMC front-I/O
  • One PCIe x8 or two PCIe x4 or four PCIe x2 Gen 3 ports via P1
  • P0, P1 and P2 support OpenVPX configuration
  • 4 channel DMA engine for fast data block moves
  • Opt. Intel HD audio via P2
  • InsydeH20 BIOS, LAN Boot Firmware
  • Real Time clock and watchdog timer
  • In 2 environmental classes available: standard (0°C .. 55°C) and conduction-cooled (-40°C .. +85°C)
  • 2 years warranty

Order Information


3U/4HP CPU board, Quad Core 2.4 GHz Core i7-4700EQ, 8 GB RAM, 0 .. 55°C


3U/4HP CPU board, Quad Core 2.4 GHz Core i7-4700EQ, 16 GB RAM, 0 .. 55°C


3U/4HP CPU board, Quad Core 1.7 GHz Core i7-4700EQ, 8 GB RAM, 0 .. 55°C


3U/4HP CPU board, Quad Core 1.7 GHz Core i7-4700EQ, 16 GB RAM, 0 .. 55°C


VITA 46.0 front panel


VITA 65 front panel


Rear I/O configuration

Technical Documentation

TR B12/msd Data Sheet
