TR D2x/msd

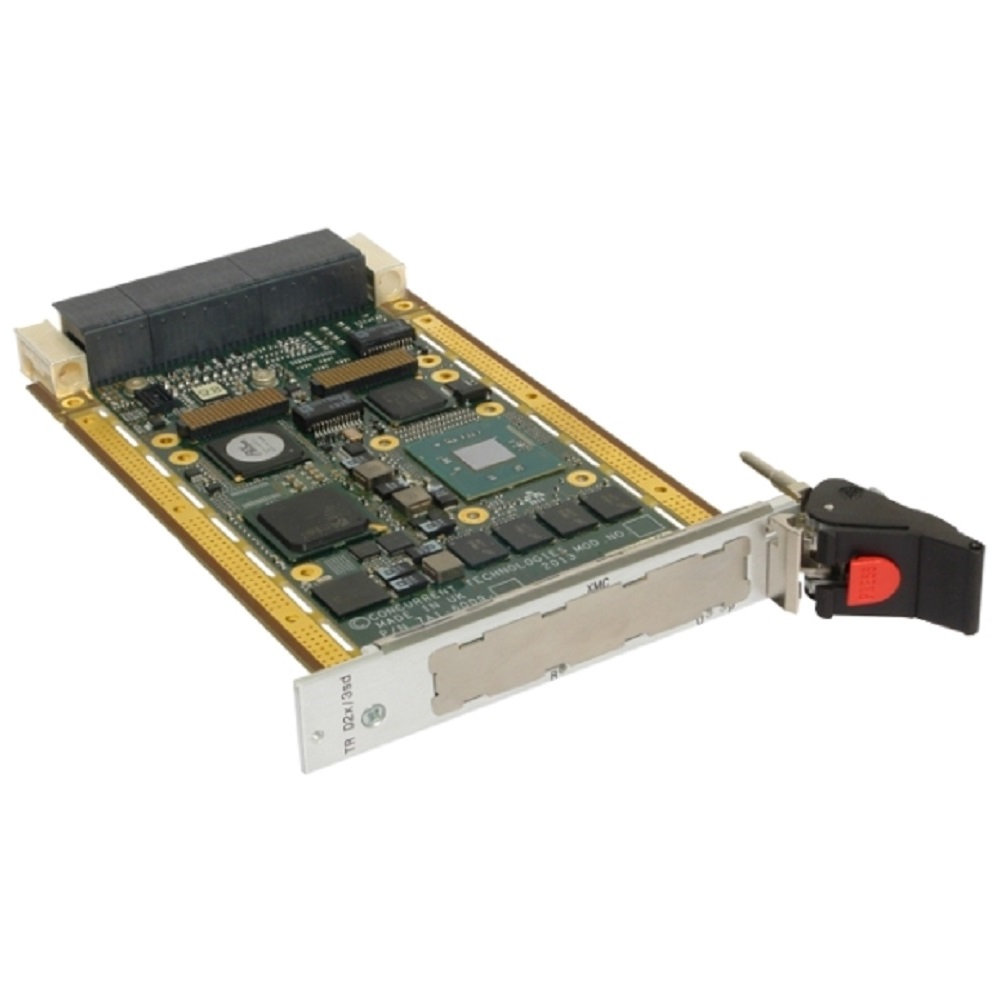

TR D2x/msd 3U VPX CPU Board with Intel Atom Processor, DVI-D and VGA Graphics Interface

3U 4HP VPX universal slot single-board computer with a Quad Core 1.91 GHz Intel Atom E3845 or a Single Core 1.64 GHz Intel Atom E3815 processor. 4 GB soldered DDR3L SDRAM is available.

Die CONCURRENT Technologies TR D2x/msd bietet einen XMC site, up to three Gigabit Ehernet ports, one DVI-D, one VGA, two SATA 3Gbit/s, two RS-232/422/485, up to 5 USB, three GPIO ports, 8 PCIe Gen2 Lanes (2 PCIe x4 or 1 PCIe x4 and 4 PCIe x1 or 8 PCIe x1 ports), and opt. one CANbus high-speed interface, one RS-232 port, one HD audio interface, and SATA flash.

Board support packages are available for LINUX, Windows, and VxWorks.

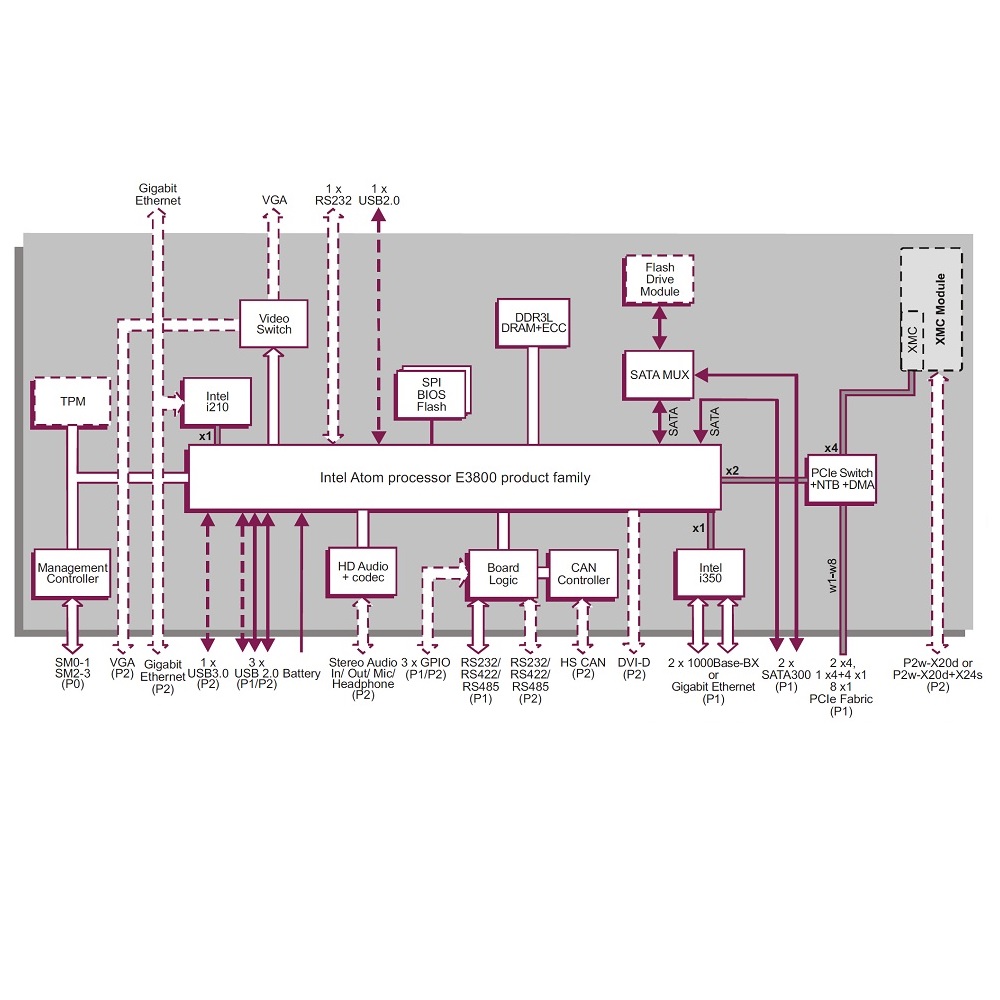

Technical Description

  • 3U/4HP VPX CPU board, VITA 42.0, VITA 42.3, VITA 46.0, VITA 46.4, VITA 46.6, VITA 47.0, VITA 48.0, VITA 48.2, VITA 65, and opt. VITA 48.2 conform
  • Quad Core 1.91 GHz Intel Atom E3845
    Single Core 1.46 GHz Intel Atom E3815
  • 4 GB ECC DDR3L SDRAM, soldered
  • 8 MB BIOS SPI flash
  • Opt. one XMC site, VITA 42.0, VITA 42.3, front-I/O
  • Graphics integrated in CPU with DVI-D and VGA port, DVI-D via P2, VGA front panel port or via P2, 1920×1080 pixel resolution digital, 2048×1536 pixel resolution analogue, DirectX 11.1 and OpenGL 3.0 support
  • Two SATA 3Gbit/s ports via P1
  • Opt. SATA flash, min. 8 GB
  • Up to three Gigabit Ethernet ports 1000BaseT or 1000BaseBX, 2 ports via P1, opt. one front panel port or one port via P2
  • Two RS-232/422/485 ports, one port via P1 and one port via P2
  • Opt. one RS-232 front panel port
  • Up to 5 USB ports, one USB 2.0 front panel port, two USB 2.0 ports via P1, one USB 2.0 port via P2, and one USB 3.0 port via P2
  • Three GPIO ports via P1/P2
  • 8 PCIe Gen2 Lanes, 2 PCIe x4 or 1 PCIe x4 and 4 PCIe x1 or 8 PCIe x1 ports
  • Opt. CANbus high speed interface via P2
  • Opt. HD audio via P2
  • InsydeH20 BIOS, LAN Boot Firmware
  • Real Time clock and watchdog timer
  • Opt. Fast Boot Software Package
  • In 2 environmental classes available: standard (0°C .. 55°C) and conduction-cooled (-40°C .. +85°C)
  • 2 years warranty

Order Information


3U/4HP CPU board, VPX, 0 .. 55°C


3U/4HP CPU board, VPX-REDI type 1, -55 .. +85°C


3U/4HP CPU board, VPX-REDI type 2, -55 .. +85°C





SW FST/027

Fast boot software package

Technical Documentation

TR D2x/msd Data Sheet
