TR L9x/6sd

3U conduction cooled VPX CPU Board with Intel Xeon W-11000E Processor, up to 32 GB RAM and 100Gigabit Ethernet

3U conduction cooled VPX CPU board with an 8-core 4.7 GHz Intel® Xeon W-11865MRE or a 4-core 4.4 GHz Intel® Xeon W-11155MRE processor. The board has 32 GB of soldered DDR4 ECC SDRAM, Intel Iris Xe Gen12 graphics integrated into the CPU and Intel Advanced Vector Extensions AVX-512.

The CONCURRENT Technologies TR L9x/6sd offers one 100GbE port or one 25GbE or four 10GbE ports. In addition, up to two 10GbE and one GbE ports are available. The board has one DisplayPort, one SATA 6Gbit/s port, one USB 3.2 port, 2 USB 2.0 ports, 4 GPIO ports, one RS232/422/485 port, one maintenance RS232 port and two PCIe x4 Gen 4 ports on P1. Opt. an M.2 SSD and an XMC module can be mounted.

The board is aligned with the SOSA (Sensor Open Systems Architecture) technical standard. The SOSA (Sensor Open Systems Architecture) consortium is a voluntary, consensus-based membership consortium of the Open Group, a vendor-neutral technology standards organization that develops an open technical standard for sensors.

The board is supported by Microsoft Windows and Linux.

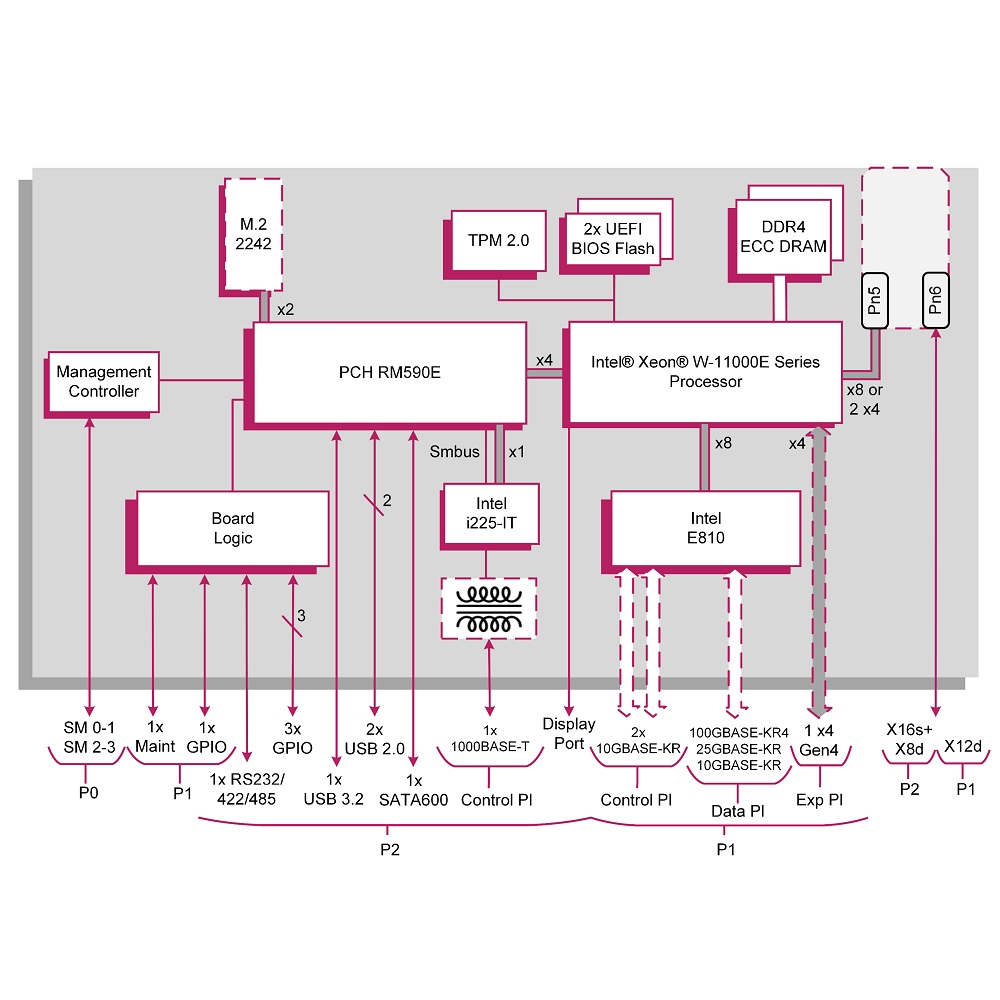

Technical Description

  • 3U/4HP VPX board, VITA 42.0, VITA 46.0, VITA 46.4, VITA 46.6, VITA 46.7, VITA 46.9, VITA 46.11, VITA 47, VITA 48.0, VITA 48.2, VITA 61 and OpenVPX compliant
  • SLT3-PAY-1F1F2U1TU1T1U1T-14.2.16 slot profile,
    MOD3-PAY-1F1F2U1TU1T1U1T-16.2.15-4 module profile
  • 8-core 4.7 GHz Intel Xeon W-11865MRE CPU, 24MB cache
    4-core 4.4 GHz Intel Xeon W-11155MRE CPU, 8MB cache
  • Intel Advanced Vector Extensions AVX-512
  • 32 GB ECC DDR4 SDRAM, soldered
  • Two 32 MB BIOS SPI Flash EPROMs
  • Graphics integrated in CPU, Intel Iris Xe Gen12 graphics
  • DisplayPort v1.2 via P2, 3840×2160 resolution
  • Opt. one XMC slot, VITA 42.0, P1 and P2 rear I/O (X12d+X16s+X8d), VITA 46.9
  • One 100GbE 100GBase-KR4 port or one 25GbE 25GBase-KR port or four 10GbE 10GBase-KR ports via P1, VITA 46.7, Intel E810
  • Up to two 10GbE 10GBase-KR ports via P1, VITA 46.6, Intel E810
  • One GbE 10/100/1000Base-T port via P2, VITA 46.4, Intel I225-IT
  • One M.2 SSD slot: 2242 module formats supported, PCIe x2 interface, NVMe logical device interface, write protection and Opal 2.0 security support
  • One SATA 6Gbit/s port on P2
  • 2 serial ports:
    one RS232/422/485 port on P2
    one RS-232 or LVCMOS maintenance port on P1
  • 3 USB ports on P2, 2 USB 2.0 ports and one USB 3.2 port
  • 4 GPIO ports, 3 ports on P2 and one port on P1
  • One PCIe x4 port above P1 on the expansion plane with Gen1, Gen2, Gen3 and Gen4 support
  • UEFI 2.7 BIOS with Secure Boot, LAN Boot Firmware, Intel Boot Guard, opt. fast boot solution with Intel Firmware Support Package (FSP)
  • Real-time clock and watchdog timer
  • System management with CPU temperature and voltage monitoring and IPMC onboard controller via SM0-1 and SM2-3
  • Trusted Platform Module (TPM 2.0) and opt. build-in test (BIT)
  • Conduction cooled, -40°C … +85°C operating temperature range
  • 2 years warranty

Order Information

TR L98/61d-yzRCx-02w

3U VPX, 8 core Xeon, 100GbE, conduction cooled

TR L94/61d-yzRCx-02w

3U VPX, 4 core Xeon, 100GbE, conduction cooled


Rear I/O configuration

AD TR1/613-10


AD 150/001-45RC

512 GB M.2 flash module kit, -40°C to +85°C, conduction cooled

AD 150/001-46RC

1 TB M.2 flash module kit, -40°C to +85°C, conduction cooled

AD TPG/002-10

Thermal gap pad for M.2 module

KT BKT/010-01

M.2 device retainer
