TR MS7/600

TR MS7/600 Rugged 3U VPX Storage Board

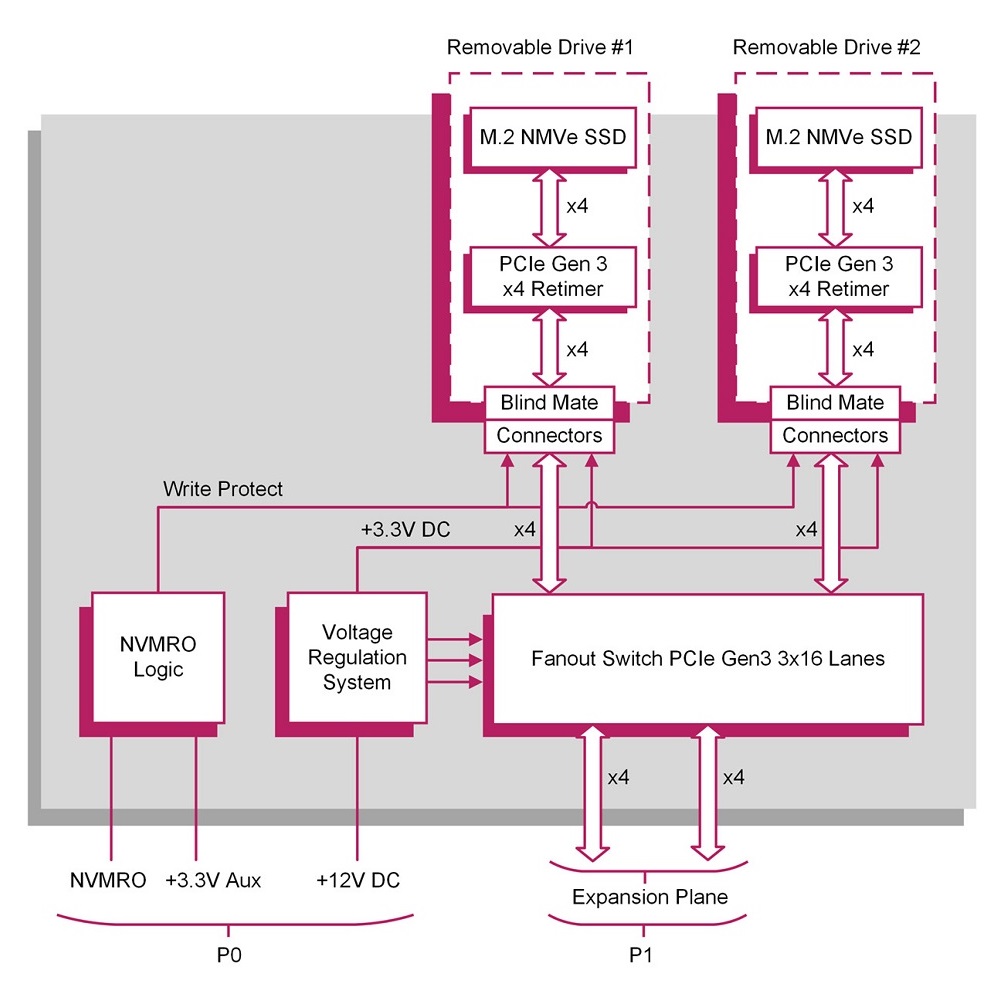

Rugged conduction-cooled 3U VPX storage board with two front removable rugged storage bays from CONCURRENT Technologies. Each bay of the TR MS7/600 is connected to the host by PCIe Gen 3 x4 interface with a channel speed of 4GB/s and connects to Expansion Plane via P1. Each front removable NVMe drive is available in capacities of 480, 960 GB, 1.92 and 3.84 TB so a maximum total capacity of 7.7TB is possible. The actual data rates (read) are 2,500 to 3,000 MB/s and data rates (write) are 340 to 1,000 MB/s. The NVMe conduction-cooled SSDs supports 256-bit AES encryption and have an opt. data destruction capability.


Technical Description

  • 3U/4HP Rugged VPX storage board, VITA 46.0, VITA 47.1, VITA 48.0, VITA 48.2 conform
  • SLT3p-PAY-1F1U1S1S1U1U2F1H-14.6.11-4 slot profile
  • 2 NVMe conduction-cooled SSDs with 480GB to 7.7TB
  • Conduction-cooled NVMe SSDs via front removable and connected to the host via PCIe x4 Gen3
  • 256-bit AES encryption
  • Opt. data destruction capability
  • -40°C .. +85°C conduction-cooled operating temperature range
  • 2 years warranty

Order Information


3U/4HP VPX storage module, 2x 480GB NVMe-2280


3U/4HP VPX storage module, 2x 960GB NVMe-2280


3U/4HP VPX storage module, 2x 1.9TB NVMe-2280

Technical Documentation

TR MS7/600 Data Sheet
