VP E2x/msd VMEbus CPU Board with Intel Atom Processor, up to two DVI Ports and PMC/XMC Slots

CONCURRENTs VP E2x/msd CPU board is a 3U 4HP universal slot single-board computer with a Quad Core 1.91 GHz Intel Atom E3845 or a Single Core 1.64 GHz Intel Atom E3815 processor. 4 GB soldered DDR3L ECC SDRAM or 8 GB DDR3L SDRAM is available.

The VP E2x/msd offers up to two PMC/XMC sites, up to four Gigabit Ehernet ports, one DVI-I (DVI-D or DVI-A), one DVI-D, up to three SATA 3Gbit/s, up to three RS-232, up to 4 USB, 4 GPIO ports, one PS2 keyboard/mouse port, opt. one HD audio interface, one 2,5" HDD/SSD socket and one CFast socket or one SATA flash module.

Board support packages are available for LINUX, Windows, and VxWorks.

ORDER NOW

Technical Description

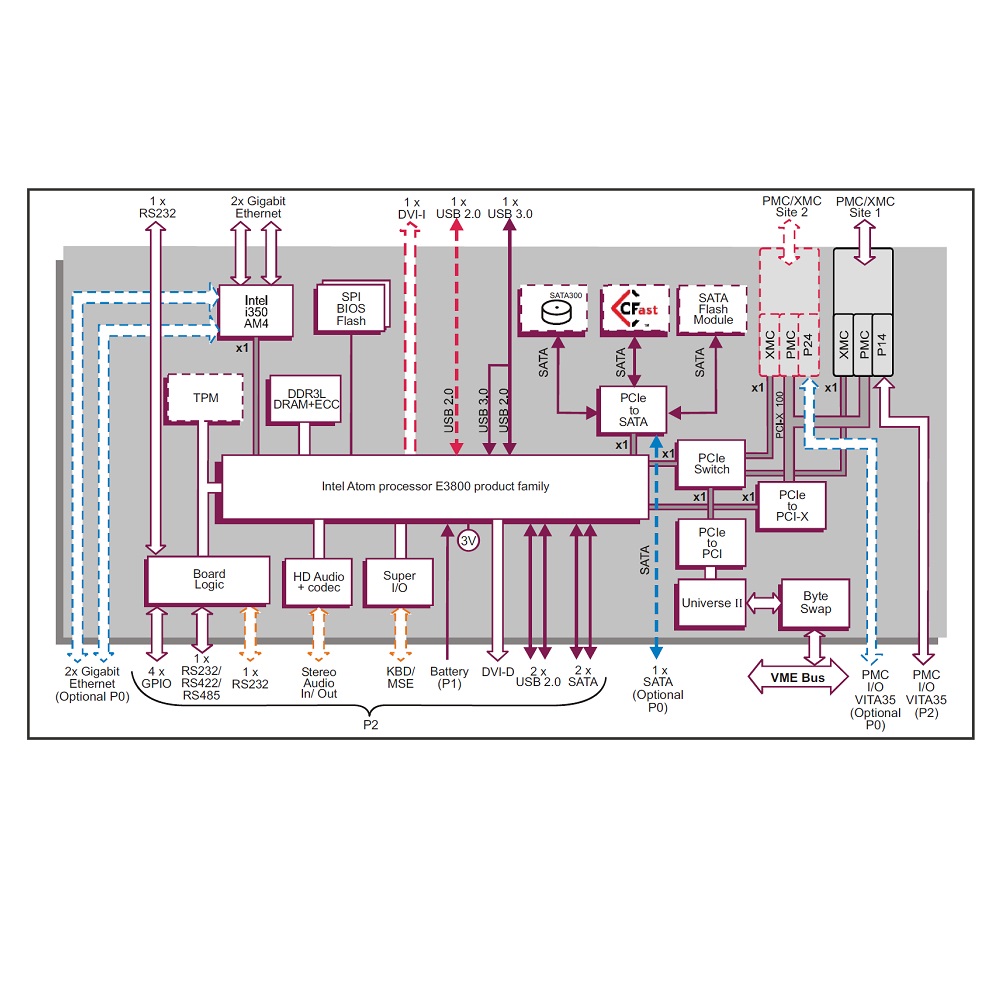

proimg1
  • 6U/4HP VME CPU board, VITA 35 compliant
  • Quad Core 1.91 GHz Intel Atom E3845
    Single Core 1.46 GHz Intel Atom E3815
  • 4 GB DDR3L ECC SDRAM, soldered or
    8 GB DDR3L SDRAM, soldered, no ECC
  • Dual 8 MB BIOS SPI flash
  • Up to two PMC/XMC sites, 32/42bit 33/66 MHz, XMC site with x1 (Gen1/Gen2) link, front I/O, P0/P2 rear I/O
  • Graphics integrated in CPU, 1-core CPU with 400 MHz graphics, 4-core CPU with 542/792 MHz base/burst graphics
  • DVI-I front panel port, DVI-D 1600×1200 pixel resolution, DVI-A 2048×1536 pixel resolution, DVI-D port via P2 1600×1200 pixel resolution, DirectX 11.1 and OpenGL 3.0 support
  • Up to three SATA 3Gbit/s ports, 2 port via P2, opt. 1 port via P0
  • Opt. CFast socket or SATA flash module
  • Opt. 2.5″ HDD/SSD, occupy PMC/XMC site 2
  • Up to four Gigabit Ethernet ports, 2 front panel ports, opt. 2 ports via P0, Intel i350 A4 controller
  • Up to three RS-232 ports, one RS-232 front panel port, one RS-232/422/485 port via P2, opt. one RS-232 port via P2
  • Up to 4 USB ports, one USB 3.0 front panel port, two USB 2.0 ports via P2, opt. one USB 2.0 front panel port
  • Four GPIO ports via P2
  • PS2 keyboard/mouse port via P2
  • Opt. Intel HD audio interface via P2
  • A16/A24/A32, D08-D64: MBLT64, VMEbus-Master/Slave interface, IDT Universe II PCI-X-to-VME64 Bridge
  • InsydeH20 BIOS, LAN Boot Firmware
  • Watchdog timer, real time clock and long duration timer
  • In 4 environmental classes available: standard (0°C .. 70°C), extended grade (-25°C .. +70°C), (-40°C .. +85°C) and conduction-cooled (-40°C .. +85°C)
  • 2 years warranty

Order Information

VP_E21/msd-yz

6U/4HP CPU board, 1-Core 1.46 GHz, 0 .. 55°C

VP_E24/msd-yz

6U/4HP CPU board, 4-Core 1.91 GHz, 0 .. 55°C

VP_E2x/msd-yzE

6U/4HP CPU board, -25 .. +70°C

VP_E2x/msd-yzK

6U/4HP CPU board, -40 .. +85°C

VP_E2x/msd-yzRC

6U/4HP CPU board, -40 .. +85°C, conduction-cooled

m=0

2 PMC/XMC sites

m=4

1 PMC/XMC site, USB 3.0, DVI-I

d=2

4 GB RAM

d=6

8 GB RAM

y=1

no P0

y=2

P0 with 2 GbE, (SATA), P24 PMC I/O (VITA 35)

z=1

PS/2 keyboard/mouse

z=2

RS-232, HD audio

Technical Documentation

VP E2x/msd-DS

VP E2x/msd Data Sheet
